Delivering High Quality Buttweld Fittings in Elbow, Tee, Reducer, Cap, Stub End etc.

API 5L Grade B, X42, X46, X52, X56, X60, X65, X70 PSL1 / PSL2 SSC Welded Pipes Certified and Tested in accordance with ISO 3183, ISO 15156, NACE MRO175 / 103, HIC, SWC, SSC, SSCC, SOUR Service, H2S, IMPACT, Post Weld Heat Treatment (PWHT), IBR, High yield, IPS-M-PI-190, IPS-M-PI-221 etc.

API 5L Grade B, X42, X46, X52, X56, X60, X65, X70 PSL1 / PSL2 SSC (SULFIDE STRESS CRACKING) TESTED Welded Line Pipes, LSAW, DSAW, HSAW, SAW.

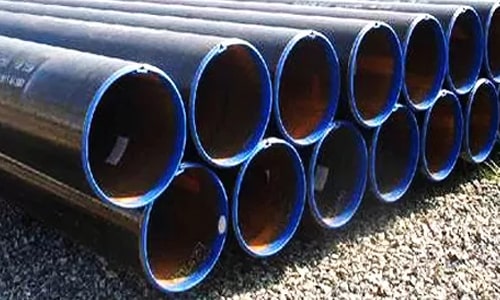

API 5L SSC TESTED Pipe, SSC Pipe, SSC Tested Pipes, SSC Pipes, API 5L SSC TESTED Welded Pipes

Grades: B, X42, X46, X52, X56, X60, X65, X70, PSL1 / PSL2 SSC Tested / ISO 3183 L245, L290, L320, L360, L390, L415, L450, L480 PSL1 / PSL2 SSC Tested

Savoy Piping Inc., we carry a full inventory of API 5L SSC Tested Welded Pipe Carbon Steel Pipe products in a variety of sizes to meet the structural piping requirements for applications the water, petroleum, oil & gas and other industries. API 5L SSC Tested Welded Pipe Carbon Steel Pipe can be Structural in Nature or used in Fluid, Gas, Oil Transmission.

We Supply API 5L SSC Tested Welded Line Pipe inAPI 5L Grade B PSL 1 Welded Pipe, API 5L Grade B PSL 2 Welded Pipe, API 5L Grade X42 PSL 1 Welded Pipe, API 5L Grade X42 PSL 2 Welded Pipe, API 5L Grade X46 PSL 1 Welded Pipe, API 5L Grade X46 PSL 2 Welded Pipe, API 5L Grade X52 PSL 1 Welded Pipe, API 5L Grade X52 PSL 2 Welded Pipe, API 5L Grade X56 PSL 1 Welded Pipe, API 5L Grade X56 PSL 2 Welded Pipe, API 5L Grade X60 PSL 1 Welded Pipe, API 5L Grade X60 PSL 2 Welded Pipe, API 5L Grade X65 PSL 1 Welded Pipe, API 5L Grade X65 PSL 2 Welded Pipe, API 5L Grade X70 PSL 1 Welded Pipe, API 5L Grade X70 PSL 2 Welded Pipe.The grade indicates the testing methods required for a given application. It is critical that structural grades of Carbon Steel Pipe not be used for Pressure or Fluid applications.

Savoy Piping Inc. specializes in API 5L SSC Tested Welded Line Pipe with years of Experience in Manufacturing API 5L SSC Tested Carbon Steel Welded Pipe we offer high quality, lower cost but the best service. As a result to that our API 5L SSC Tested Welded Pipes export account today is in various countries like Iran, Iraq, Kuwait, Saudi Arabia, Oman, UAE, Singapore, Malaysia, Indonesia, South korea, Chile, Peru, Venezuela, Australia, Nigeria, Angola, Senegal, Mozambique, Algeria, Libya, Azerbaijan, Netherlands, Brazil, Norway, United Kingdom, Mexico, Canada etc.

Welded API 5L PSL 1 / PSL 2 SSC Tested Line Pipe for dependable transmission of oil and gas to any type of collection and distribution point

This API 5L specification Covers Seamless and Welded Steel Line Pipe. It includes standard-weight and Extra-Strong threaded Line Pipe. It includes standard-weight and extra-strong threaded line pipe; and standard-weight plain-end, regular-weight plain-end, special plain-end, extra-strong plain-end, special plain-end, extra-strong plain-end pipe; as as well as bell and spigot and through-the-flow line(TFL) pipe.

The purpose of this specification is to provide standards for pipe suitable for use in conveying gas, water, and oil in both the oil and natural gas industries

Grades covered by this specification are A25 ,A ,B (and the following "X" Grades), X42, X46, X52, X56, X60, X65, X70, X80. The two digit number following the "X" indicates the Minimum Yield Strength (in 000's psi) of pipe produced to this grade.

Savoy Piping Inc. Supply a full range of API 5L Seamless Pipes in PSL-1 & PSL-2 line pipe.

Hydrogen-Induced Cracking (HIC) Test, NACE TM0284

IC test to evaluate the resistance of pipeline and pressure vessel plate steels to Hydrogen Inducted Cracking caused by hydrogen absorption from aqueous sulfide corrosion. An unstressed test specimen is exposed to a solution at ambient temperature and pressure and after a specified time, the test specimen is removed and evaluated.

Specimen Size
To conduct the HIC test, requires the following sample sizes:

Pipe - upto 2" OD - 200mm long
If the pipe is more than 2" OD pipe - 100mm long sample size is required

Number of pieces to be tested upto 88mm thick/dia - set of 3 pieces to be tested
Number of pieces to be tested more than 88mm thick/dia - 5 pieces to be tested

NACE TM0284 Test Solution
NACE TM0284 specifies either Solution A or Solution B. Solution A is acidified brine. Solution B is simulated seawater prepared in accordance with ASTM D1141.52. In either case, H2S is bubbled through the solution constantly throughout the test period. NACE TM0284 specifies test duration of 96 hours.

Detailed Report
A detailed written report upon completion of each test. Each report includes a description of the test sample that was received, the test procedure that was used, and the pH values of the test solution before exposure and after the exposure. The test bars are cut into sections and examined under a microscope for hydrogen-induced cracks. The dimensions of any such cracks are recorded and used to compute the values in percentage for Crack Length Ratio (CLR), Crack Thickness Ratio (CTR) and Crack Sensitivity Ratio (CSR).

our API 5L SSC Tested Welded Line Pipe range

API 5L SSC Tested Welded Pipe Specification API 5L / ISO 3183 Hot Rolled.
API 5L SSC Tested Welded Pipe Grades API 5L Grade B PSL1, PSL 2 / API 5L X42 PSL1, PSL 2 / API 5L X46 PSL1, PSL 2 / API 5L X52 PSL1, PSL 2 / API 5L X56 PSL1, PSL 2 / API 5L X60 PSL1, PSL 2 / API 5L X65 PSL1, PSL 2 / X70 PSL1, PSL 2 / API 5L X70 PSL1 / PSL2 / API 5L X80 PSL1, PSL 2 / ISO 3183 L245 PSL1, PSL 2, ISO 3183 L290 PSL1, PSL 2, ISO 3183 L320 PSL1, PSL2, ISO 3183 L360 PSL1, PSL 2, ISO 3183 L390 PSL1, PSL 2, ISO 3183 L415 PSL1, PSL 2, ISO 3183 L450 PSL1, PSL 2, ISO 3183 L485 PSL1, PSL 2
API 5L SSC Tested Welded Pipe Type LSAW Pipes (Longitudinal Submerged Arc Welded Pipes )
HSAW Pipes (Helical Submerged Arc Welded Pipes )
DSAW Pipes (Double Submerged Arc Welded Pipes )
HSAW Pipes (Helical Submerged Arc Welded Pipes )
SSAW Pipes (Spiral Submerged Arc Welded Pipes )
API 5L SSC Tested Welded Pipe Outer Diameter Size 12" NB to 150" NB (Nominal Bore Size)
API 5L SSC Tested Welded Pipe Wall Thickness Schedule 20 to Schedule XXS (Heavier On Request) Up to 250 mm Thickness
API 5L SSC Tested Welded Pipe Length 5 to 7 Meters, 09 to 13 Meters, Single Random Length, Double Random Length And Customize Size.
API 5L SSC Tested Welded Pipe Ends Plain Ends / Beveled Ends / Coupling
API 5L SSC Tested Welded Pipe Delivery Conditions As Rolled, Normalizing Rolled, Thermomechanical Rolled / Formed, Normalizing Formed, Normalized and Tempered / Quenched and Tempered - BR / N / Q /T
API 5L SSC Tested Welded Pipe Coating Epoxy Coating / Colour Paint Coating / 3LPE Coating.
API 5L SSC Tested Welded Pipe Other Testing NACE MR0175, NACE TM0177, SOUR SERVICE, NACE TM0284, PWHT, HIC TEST, SSC TEST, SWC, H2 SERVICE, IBR, IPS-M-PI190, IPS-M-PI-221 APPENDIX G Etc.
API 5L SSC Tested Welded Pipe Dimension All Pipes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM, ASME, API.
API 5L SSC Tested Welded Pipe Value Added Services Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Galavanizing / Heat Treatment
API 5L SSC Tested Welded Pipe Packaging Loose / Bundle / Wooden Pallet / Wooden box-a / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector
API 5L SSC Tested Welded Pipe Shipment & Transportation By Road - Truck / Train, By Sea - Break-bulk Conventional Vessel / FCL (Full Container Load) / LCL (Less Container Load) / 20 Feet Container / 40 Feet
API 5L SSC Tested Welded Pipe Material Test Certificate Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab./ Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC

Annex H
(normative)
PSL 2 Pipe Ordered for SOUR Service

H.1 Introduction

This annex specifies additional provisions that apply for PSL 2 pipe that is ordered for sour service [see 7.2 c) 51 ] .

NOTE The consequences of sudden failures of metallic components used for the oil and gas production associated with their exposure to H2S- containing production fluids led to the development of NACE MR0175/ISO 15156-1[21] and subsequently EFC publication 16[13] ISO 15156-2 used those sources to provide requirements and recommendations for materials qualification and selection for application in environments containing wet H2S in oil and gas production systems. Carbon and low alloy steels selected using ISO 15156—2 are resistant to cracking in defined H2S containing environments in oil and gas production but are not necessarily immune to cracking under all service conditions. Different service conditions might necessitate the alternative testing that is dealt with in ISO 15156—2:2003, Annex B. That annex specifies requirements for qualifying carbon and low alloy steels for H2S service by laboratory testing.

It is the purchaser’s responsibility to select the carbon and low-alloy steels suitable for the intended service.

H.2 Additional information to be supplied by the purchaser

in addition to items a) to g) as specified by 7.1, the purchase order shall indicate which of the following provisions apply for the specific order item:

a) steel casting method for strip or plate used for the manufacture of welded pipe (see H.3.3.2.1);

b) ultrasonic inspection of strip or plate for laminar imperfections (see H.3.3.2.4);

c) supply of helical-seam pipe containing strip/plate end welds (see H.3.3.2.5);

d) chemical composition for intermediate grades (see H.4.1.1);

e) chemical composition for pipe with t > 25,0 mm (0.984 in) (see H.4.1.2);

f) chemical composition limits (see Table H.1, footnotes c), d,) e), f), i), j)and k);

g) frequency of hardness testing of the longitudinal seam weld of HFW or SAW pipe (see Table H.3);

h) SSC test for manufacturing procedure qualification (see Table H.3);

i) alternative HIC/SWC test methods and associated acceptance criteria (see H.7.3.1.3);

j) photomicrographs of reportable HIC cracks (see H.7.3.1.4);

k) alternative SSC test methods and associated acceptance criteria for manufacturing procedure qualification (see H.7.3.2.2);

l) for pipe with t ≥ 5,0 mm (0.197 in), ultrasonic inspection for laminar imperfections with in extended length of 100 mm (4.0 in) at the pipe ends (see K.2.1.3);

m) magnetic particle inspection for laminar imperfections at each pipe end face/bevel (see K.2.1.4);

chemical requirement for SSC Tested welded Pipes

Table H.1 --- Chemical Composition for pipe with t ≤25,0 mm (0.984 in)

Steel grade Mass fraction, based upon heat and product analyses
%
maximum
Carbon
equivalent a

%
maximum
C b Si Mn b P S V Nb Ti Other c, d CE llw CE pcm
SMLS and welded Pipes
L245NS or BNS 0,14 0,40 1,35 0,020 0,003 e f f 0,04 g 0,36 0,19 h
L290NS or X42NS o,14 0,40 1,35 0,020 0,003 e 0,05 0,05 0,04 - 0,36 0,19 h
L320NS or X46NS 0,14 0,40 1,40 0,020 0,003 e 0,07 0,05 0,04 g 0,38 0,20 h
L360NS or X52NS 0,16 0,45 1,65 0,020 0,003 e 0,10 0,05 0,04 g 0,43 0,22 h
L245QS or BQS 0,14 0,40 1,35 0,020 0,003 e 0,04 0,04 0,04 - 0,34 0,19 h
L 290QS or X42QS 0,14 0,40 1,35 0,020 0,003 e 0,04 0,04 0,04 - 0,34 0,19 h
L320QS or X46QS 0,15 0,45 1,40 0,020 0,003 e 0,05 0,05 0,04 - 0,36 0,20 h
L360QS or X52QS 0,16 0,45 1,65 0,020 0,003 e 0,07 0,05 0,04 g 0,39 0,20 h
L390QS or X56QS 0,16 0,45 1,65 0,020 0,003 e 0,07 0,05 0,04 g 0,40 0,21 h
L415QS or X60QS 0,16 0,45 1,65 0,020 0,003 e 0,08 0,05 0,04 g,i,k 0,41 0,22 h
L450QS or X65QS 0,16 0,45 1,65 0,020 0,003 e 0,09 0,05 0,06 g,i,k 0,42 0,22 h
L485QS or X70QS 0,16 0,45 1,65 0,020 0,003 e 0,09 0,05 0,06 g,i,k 0,42 0,22 h
welded pipe
L245MS or BMS 0,10 0,40 1,25 0,020 0,002 e 0,04 0,04 0,04 - - 0,19
L290MS or X42MS 0,10 0,40 1,25 0,020 0,002 e 0,04 0,04 0,04 - - 0,19
L320MS or X46 MS 0,10 0,45 1,35 0,020 0,002 e 0,05 0,05 0,04 - - 0,20
L360MS or X52 MS 0,10 0,45 1,45 0,020 0,002 e 0,05 0,06 0,04 - - 0,20
L390MS or X56 MS 0,10 0,45 1,45 0,020 0,002 e 0,06 0,08 0,04 g - 0,21
L415MS or X60 MS 0,10 0,45 1,45 0,020 0,002 e 0,08 0,08 0,06 g,i - 0,21
L450MS or X65MS 0,10 0,45 1,60 0,020 0,002 e 0,10 0,08 0,06 g,i,j - 0,22
L485MS or X70 MS 0,10 0,45 1,60 0,020 0,002 e 0,10 0,08 0,06 g,i,j - 0,22
a) Based upon product analysis (see 9.2.4 and 9.2.5) The CEllw limits apply if the carbon mass fraction is greater than 0,12 % and the CEpcm limits apply if the carbon mass fraction is less than or equal to 0,12 %.

b) for each reduction of 0,01 % below the specified maximum for carbon, an increase of 0,05 % above the specified maximum for manganese is permissible, up to a maximum increase of 0,20 %.

c) AI total ≤ 0,060 %; N ≤ 0,012 %; AI/N ≥ 2:1 (not applicable to titanium-killed or titanium-treated steel); Cu ≤ 0,35 % (if agreed ,Cu ≤ 0,10 %); Ni ≤ 0,30 %; Cr ≤ 0,30 %; Mo ≤ 0,15 %; B ≤ 0,0005 %.

d) for welded pipe where calcium is intentionally added, unless otherwise agreed, Ca/s ≥ 1,5 if S > 0,0015 % for SMLS and welded Pipes, the calcium concentration shall be ≤ 0,006 %.

e) The maximum limit for sulfur concentration may be increased to ≤ 0,008 % for SMLS pipe and, if agreed, to ≤ 0,006 % for welded pipe. for such higher-sulfur levels in welded pipe, lower Ca/s ratios may be agreed.

f) Unless otherwise agreed, the sum of the niobium and vanadium concentrations shall be ≤ 0,06 %.

g) The sum of the niobium, vanadium and titanium concentrations shall be ≤ 0,15 %.

h) for SMLS pipe, the listed value may be increased by 0,03.

i) If agreed, the molybdenum concentration shall be ≤ 0,35 %.

j) If agreed, the the chromium concentration shall be ≤ 0,45 %.

k) If agreed, Cr concentration shall be ≤ 0,45 % and Ni concentration shall be ≤ 0,50 %.

mechanical requirement for SSC Tested welded Pipes

Table H.2 ----Requirements for the results of tensile tests

Pipe steel grade Pipe body of SMLS and welded Pipes Weld seam of HFW and SAW Pipes
Yield strength a

Rto,5
Mpa (psi)

Tensile strength a

Rm
Mpa (psi)
Ratio b

Rto,5/Rm

Elongation on 50 mm
or 2 in

Af
%
Tensile strength c

Rm
Mpa (psi)
minimum maximum minimum maximum maximum minimum minimum
L245NS or BNS
L245QS or BQS
L245MS or BMS
245
(35 500)
450 d
(65 300) d
415
(60 200)
760
(110 200)
0,93 e 415
(60 200)
L290NS or X42NS
L290QS or X42QS
L290MS or X42MS
290
(42 100)
495
(71 800)
415
(60 200)
760
(110 200)
0,93 e 415
(60 200)
L320NS or X46NS
L320QS or X46QS
L320MS or X46MS
320
(46 400)
525
(76 100)
435
(63 100)
760
(110 200)
0,93 e 435
(63 100)
L360NS or X52NS
L360QS or X52QS
L360MS or X52MS

360
(52 200)
530
(76 900)
460
(66 700)
760
(110 200)
0,93 e 460
(66 700)
L390QS or X56QS
L390MS or X56MS
390
(56 600)
545
(79 000)
490
(71 100)
760
(110 200)
0,93 e 490
(71 100)
L415QS or X60QS
L415MS or X60MS
415
(60 200)
565
(81 900)
520
(75 400)
760
(110 200)
0,93 e 520
(75 400)
L450QS or X65QS
L450MS or X65MS
450
(65 300)
600
(87 000)
535
(77 600)
760
(110 200)
0,93 e 535
(77 600)
L485MS or X70MS 485
(70 300)
635
(92 100)
570
(82 700)
760
(110 200)
0,93 e 570
(82 700)
a for intermediate grades, the difference between the specified maximum yield strength and the specified minimum yield strength shall be as given in the table for the next higher grade, and the difference between the specified minimum tensile strength and the specified minimum yield strength shall be as given in the table for the next higher grade, for intermediate grades, the tensile strength shall be ≤ 760 MPa (110 200 psi).

b This limit applies for pipe with D >323, 9 mm (12.750 in).

c for intermediate grades, the specified minimum tensile strength for the weld seam shall be the same value as was determined for the pipe body using footnote a).

d for pipe with D< 219,1 mm (8.625 in), the maximum yield strength shall be ≤495 MPa (71 800 psi).

e The specified minimum elongation, Af, on 50mm or 2 in, expressed in percent and rounded to the nearest percent, shall be as determined using the following equation:

api5l pipe elongation values

Where

C is 1 940 for calculations using SI units and 625 000 for calculations using USC units;

A xc is the applicable tensile test piece cross-sectional area, expressed in square millimeters (square inches), as follows:

---- for circular cross-section test pieces, 130 mm2 (0.20 in2) for 12,5 mm (0.500 in) and 8,9 mm (0.350 in) diameter test pieces; and 65 mm2 ( 0.10 in2) for 6,4 mm (0.250 in) diameter test pieces;

---- for full-section test pieces, the lesser of a) 485 mm2 (0.75 in2) and b) the cross-sectional area of the test piece, derived using the specified outside diameter and the specified wall thickness of the pipe, rounded to the nearest 10 mm2 (0.01 in2)

---- for strip test pieces, the lesser of a) 485 mm2( 0.75 in2) and b) the cross-sectional area of the test piece, derived using the specified width of the test piece and the specified wall thickness of the pipe, rounded to the nearest_10 mm2 (0.01 in2);

U is the specified minimum tensile strength, expressed in megapascals (pounds per square inch).

H.4.3 HIC/SWC test

The test for evaluation of resistance-to hydrogen- induced cracking shall meet the following acceptance criteria, with each ratio being the maximum permissible average for three sections per test specimen when tested in solution (Environment) A (see ISO 15156-2:2003, Table B.3):

a) crack sensitivity ratio (CSR) ≤ 2 %;

b) crack length ratio (CLR) ≤ 15 %;

c) crack thickness ratio (CTR) ≤ 5 %;

If HIC/SWC tests are conducted in alternative . media (see H.7.3.1.3) to simulate specific service conditions, alternative acceptance criteria may be agreed.

H.4.4 Hardness test

For test pieces subjected to a hardness test (see H.7.3), the hardness in the pipe body, the weld and HAZ shall be ≤ 250 HV10 or 22 HRC (70,6 HR 15N).

The maximum acceptabie hareness of an unexposed weld cap and external surface HAZ and base metal may be 275 HV10 or 26 HRC (73,0 HR 15N) where the equipment user agrees to the alternative weld cap hardness limit, the parent pipe wall thickness is greater than 9 mm, the weld cap is not exposed directly to the sour environment and the escape of hydrogen is not impeded, e.g by cathodic protection.

API 5L SSC Tested welded Line Pipe Comparative Specifications

The information here is summarized from ASTM Standards and API Specification 5L. Please see the specific standards for more information.

API Specification 5L SSC Tested welded Pipes PSL 1 and PSL 2 Comparison information.

Grade Range A25 Through X70 Gr B Through X80 Table 1
Size Range 0.405 Through 80 4-2/1 Through 80 Table 1
Type Of Pipe Ends Plain-End, Threaded-end, Bevelled-End, Special Coupling Pipe Plain-End Table 1
Seam Welding All Methods Continous Welding Limited to Grade A25 All Methods Except Continous And Laser Welding Table 1
Electric Welds: Welder Frequency No Minimum 100 Khz Minimum 5.1.3.3.2
Heat Treatments of Electric Welds Required For Grades > X42 Required For All Grades (Gr B Through X80) 5.1.3.3.1; J.3.3.2:6.2.7
Chemistry: Max C For Seamless Pipe 0.28% For Grades > Gr B 0.24% tables 2a, 2b
Chemistry: Max C For Welded Pipe 0.26% For Grades > Gr B 0.22% tables 2a, 2b
Chemistry: Max P 0.03% 0.03% Tables 2a, 2b
Chemistry: Max S Only When Purchases Specifies Sr18 0.02% Tables 2a, 2b
Carbon Equivalent None Maximum Required for Each Grade 4.2:4.3:6.1.3: Sr15.1
Yield Strength, Maximum None Maximum for Each Grade tables 3a, 3b
UTS, Maximum None Required Maximum For Each Grade Tables 3a, 3b
Fracture Toughness Only When Purchaser Specifies Sr4 Required For All Grades 6.2.6; 9.3.5: 9.8.4; 9.10.7;
Non-destructive Inspection of Seamless Pipes Permitted sr4 Mandatory table 14 9.7.2.6
Repair By Welding of Pipe Body, Plate And Skelp Permitted By Agreement Prohibited 5.3.2;9.7.6: B.1;b.2
Certification Certificates When Specified Per Sr15 Prohibited 4.3;9.7.4.4;9.7.6;b.1.2;b.4
Traceability Traceable Only Until All Tests are Passed Unless Sr15 Is Specified Certificates (Sr15.1) Mandatory
Traceable After Completion of Tests (Sr15.2) Mandatory
12.1
5.6

API 5L X42, X46, X52, X56, X60, X65, X70 PSL2 SSC Tested Pipes Price

Country Name Latest Price/ Recent Updated Price 2017-18
API 5L X42, X46, X52, X56, X60, X65, X70 PSL2 SSC TESTED Pipe Price in Indonesia US $1350 - 1550 / Metric Ton
API 5L X42, X46, X52, X56, X60, X65, X70 PSL2 SSC TESTED Pipe Price in Malaysia US $1350 - 1550 / Metric Ton
API 5L X42, X46, X52, X56, X60, X65, X70 PSL2 SSC TESTED Pipe Price in United Arab Emirates AED 3421.84 - 3889.11/ Metric Ton
API 5L X42, X46, X52, X56, X60, X65, X70 PSL2 SSC TESTED Pipe Price in Singapore US $1100 - 1450 / Metric Ton
API 5L X42, X46, X52, X56, X60, X65, X70 PSL2 SSC TESTED Pipe Price in Iran US $1200 - 1800 / Metric Ton
API 5L X42, X46, X52, X56, X60, X65, X70 PSL2 SSC TESTED Pipe Price in South Korea US $1150 - 1350 / Metric Ton
API 5L X42, X46, X52, X56, X60, X65, X70 PSL2 SSC TESTED Pipe Price in Egypt US $1250 - 1650 / Metric Ton
API 5L X42, X46, X52, X56, X60, X65, X70 PSL2 SSC TESTED Pipe Price in Saudi Arabia US $1250 - 1850 / Metric Ton
API 5L X42, X46, X52, X56, X60, X65, X70 PSL2 SSC TESTED Pipe Price in Kuwait US $1400 - 1950 / Metric Ton
API 5L X42, X46, X52, X56, X60, X65, X70 PSL2 SSC TESTED Pipe Price in South Africa US $1200 - 1600 / Metric Ton
API 5L X42, X46, X52, X56, X60, X65, X70 PSL2 SSC TESTED Pipe Price in Qatar US $1150 - 1950 / Metric Ton
API 5L X42, X46, X52, X56, X60, X65, X70 PSL2 SSC TESTED Pipe Price in Bahrain BD 320-358 / Metric Ton
API 5L X42, X46, X52, X56, X60, X65, X70 PSL2 SSC TESTED Pipe Price in Oman US $1120 - 1850 / Metric Ton
API 5L X42, X46, X52, X56, X60, X65, X70 PSL2 SSC TESTED Pipe Price in India INR 115988-200692/ Metric Ton
API 5L X42, X46, X52, X56, X60, X65, X70 PSL2 SSC TESTED Pipe Price in Taiwan US $1170 - 1975 / Metric Ton
API 5L X42, X46, X52, X56, X60, X65, X70 PSL2 SSC TESTED Pipe Price in Vietnam US $1275 - 1840 / Metric Ton
API 5L X42, X46, X52, X56, X60, X65, X70 PSL2 SSC TESTED Pipe Price in USA US $1510 - 2400 / Metric Ton

CHEMICAL REQUIREMENTS for API 5L SSC Tested welded steel Pipe
API 5L Specifications Covers Seamless and Welded pipe suitable for use in conveying gas, water, oil, and other liquefied media. The attached requirements cover our offering of API 5L 45th Ed, PSL 1Seamless and Welded; API 5L 45th Ed PSL 2 Seamless & Welded; and API 5L 45th Ed PSL2 Welded only.

TENSILE PROPERTIES for Seamless and Welded API 5L SSC Tested steel Pipe
tensile properties data for Seamless and Welded API 5L steel pipe API 5L 45th Ed PSL 1, PSL 2.

TESTING REQUIREMENTS for Seamless and Welded API 5L SSC Tested steel Pipe
Our API 5L Seamless Pipes hydrostatic and mechanical testing information for all sizes and grades covered by the specification.

Permissible Variations for Seamless and Welded API 5L SSC Tested steel Pipe

Grade A, B, A25 X42 through X80
NPS 2-1/2 and smaller --Seamless and Welded, % +20 -- 12.5 +15 -- 12.5
NPS 3 --Seamless and Welded, % +18 -- 12.5 +15 -- 12.5
NPS 4 through 18 --Seamless and Welded, % +15 -- 12.5 +15 -- 12.5
NPS 20 and larger -- Welded, % +17.5 -- 10.0 +19.5 -- 8.0
NPS 20 and larger -- Seamless, % +15.0 -- 12.5 +17.5 -- 10.0

Marking Requirements
Paint-stenciled or die-stamped manufacturer’s name or mark, Spec 5L, size, weight per foot, grade, process of manufacture, type of steel, length (NPS 4 and larger only). Test pressure when higher than tabulated (NPS 2 and larger only).

Supplemental Annexes for API 5L SSC Testedseamless and welded steel Pipe
API Specification 5L contains 15 Supplemental Annexes that address special conditions and/or additional requirements.

API 5L Line Pipes OF TOP APPROVED COMPANIES

API 5L Grade B Pipe Sabic Approved, A671 CC60 Pipe Sabic Approved, A671 CC65 Pipe Sabic Approved, A671 CC70 Pipe Sabic Approved, A671 CC60 Pipe Class 12, 22, 32 Sabic Approved, A671 CC65 Pipe Class 12, 22, 32 Sabic Approved, A671 CC65 Pipe Class 12, 22, 32 Sabic Approved, A671 CC70 Pipe Class 12, 22, 32 Sabic Approved, A671 CC60, CC65, CC70 Pipe Sabic Approved, ASTM A671 Pipe LSAW Weded EFW Sabic ApprovedSabic Saudi Arabia) API 5L Grade B Pipe ROYAL DUTCH SHELL Approved, API 5L X42 Pipe ROYAL DUTCH SHELL Approved, API 5L X46 Pipe ROYAL DUTCH SHELL Approved, API 5L X52 Pipe ROYAL DUTCH SHELL Approved, API 5L X56 Pipe ROYAL DUTCH SHELL Approved, API 5L X60 Pipe ROYAL DUTCH SHELL Approved, API 5L X60 Pipe ROYAL DUTCH SHELL Approved, API 5L X65 Pipe ROYAL DUTCH SHELL Approved, API 5L X70 Pipe ROYAL DUTCH SHELL Approved, API 5L Line Pipe ROYAL DUTCH SHELL ApprovedShell API 5L Grade B Pipe ALBA Approved, A671 CC60 Pipe ALBA Approved, A671 CC65 Pipe ALBA Approved, A671 CC70 Pipe ALBA Approved, A671 CC60 Pipe Class 12, 22, 32 ALBA Approved, A671 CC65 Pipe Class 12, 22, 32 ALBA Approved, A671 CC65 Pipe Class 12, 22, 32 ALBA Approved, A671 CC70 Pipe Class 12, 22, 32 ALBA Approved, A671 CC60, CC65, CC70 Pipe ALBA Approved, ASTM A671 Pipe LSAW Weded EFW ALBA ApprovedALBA (Saudi Arabia) API 5L Grade B Pipe QAFCO Approved, A671 CC60 Pipe QAFCO Approved, A671 CC65 Pipe QAFCO Approved, A671 CC70 Pipe QAFCO Approved, A671 CC60 Pipe Class 12, 22, 32 QAFCO Approved, A671 CC65 Pipe Class 12, 22, 32 QAFCO Approved, A671 CC65 Pipe Class 12, 22, 32 QAFCO Approved, A671 CC70 Pipe Class 12, 22, 32 QAFCO Approved, A671 CC60, CC65, CC70 Pipe QAFCO Approved, ASTM A671 Pipe LSAW Weded EFW QAFCO ApprovedQAFCO(Qatar) API 5L Grade B Pipe MAADEN Approved, A671 CC60 Pipe MAADEN Approved, A671 CC65 Pipe MAADEN Approved, A671 CC70 Pipe MAADEN Approved, A671 CC60 Pipe Class 12, 22, 32 MAADEN Approved, A671 CC65 Pipe Class 12, 22, 32 MAADEN Approved, A671 CC65 Pipe Class 12, 22, 32 MAADEN Approved, A671 CC70 Pipe Class 12, 22, 32 MAADEN Approved, A671 CC60, CC65, CC70 Pipe MAADEN Approved, ASTM A671 Pipe LSAW Weded EFW MAADEN ApprovedMaaden(Saudi Arabia) API 5L Grade B Pipe KNPC Approved, A671 CC60 Pipe KNPC Approved, A671 CC65 Pipe KNPC Approved, A671 CC70 Pipe KNPC Approved, A671 CC60 Pipe Class 12, 22, 32 KNPC Approved, A671 CC65 Pipe Class 12, 22, 32 KNPC Approved, A671 CC65 Pipe Class 12, 22, 32 KNPC Approved, A671 CC70 Pipe Class 12, 22, 32 KNPC Approved, A671 CC60, CC65, CC70 Pipe KNPC Approved, ASTM A671 Pipe LSAW Weded EFW KNPC ApprovedKNPC(Kuwait)
API 5L Grade B Pipe KOC Approved, A671 CC60 Pipe KOC Approved, A671 CC65 Pipe KOC Approved, A671 CC70 Pipe KOC Approved, A671 CC60 Pipe Class 12, 22, 32 KOC Approved, A671 CC65 Pipe Class 12, 22, 32 KOC Approved, A671 CC65 Pipe Class 12, 22, 32 KOC Approved, A671 CC70 Pipe Class 12, 22, 32 KOC Approved, A671 CC60, CC65, CC70 Pipe KOC Approved, ASTM A671 Pipe LSAW Weded EFW KOC ApprovedKuwait Oil Company(Kuwait) API 5L Grade B Pipe QATAR PETROLEUM Approved, A671 CC60 Pipe QATAR PETROLEUM Approved, A671 CC65 Pipe QATAR PETROLEUM Approved, A671 CC70 Pipe QATAR PETROLEUM Approved, A671 CC60 Pipe Class 12, 22, 32 QATAR PETROLEUM Approved, A671 CC65 Pipe Class 12, 22, 32 QATAR PETROLEUM Approved, A671 CC65 Pipe Class 12, 22, 32 QATAR PETROLEUM Approved, A671 CC70 Pipe Class 12, 22, 32 QATAR PETROLEUM Approved, A671 CC60, CC65, CC70 Pipe QATAR PETROLEUM Approved, ASTM A671 Pipe LSAW Weded EFW QATAR PETROLEUM ApprovedQatar Petroleum(Qatar) API 5L Grade B Pipe PDO Approved, A671 CC60 Pipe PDO Approved, A671 CC65 Pipe PDO Approved, A671 CC70 Pipe PDO Approved, A671 CC60 Pipe Class 12, 22, 32 PDO Approved, A671 CC65 Pipe Class 12, 22, 32 PDO Approved, A671 CC65 Pipe Class 12, 22, 32 PDO Approved, A671 CC70 Pipe Class 12, 22, 32 PDO Approved, A671 CC60, CC65, CC70 Pipe PDO Approved, ASTM A671 Pipe LSAW Weded EFW PDO ApprovedPetroleum Development Oman(Oman) API 5L Grade B Pipe ADNCO Approved, A671 CC60 Pipe ADNCO Approved, A671 CC65 Pipe ADNCO Approved, A671 CC70 Pipe ADNCO Approved, A671 CC60 Pipe Class 12, 22, 32 ADNCO Approved, A671 CC65 Pipe Class 12, 22, 32 ADNCO Approved, A671 CC65 Pipe Class 12, 22, 32 ADNCO Approved, A671 CC70 Pipe Class 12, 22, 32 ADNCO Approved, A671 CC60, CC65, CC70 Pipe ADNCO Approved, ASTM A671 Pipe LSAW Weded EFW ADNCO ApprovedADNOC(United Arab Emirates) API 5L Grade B Pipe ORPIC Approved, A671 CC60 Pipe ORPIC Approved, A671 CC65 Pipe ORPIC Approved, A671 CC70 Pipe ORPIC Approved, A671 CC60 Pipe Class 12, 22, 32 ORPIC Approved, A671 CC65 Pipe Class 12, 22, 32 ORPIC Approved, A671 CC65 Pipe Class 12, 22, 32 ORPIC Approved, A671 CC70 Pipe Class 12, 22, 32 ORPIC Approved, A671 CC60, CC65, CC70 Pipe ORPIC Approved, ASTM A671 Pipe LSAW Weded EFW ORPIC ApprovedOrpic(Oman) API 5L Grade B Pipe TAKREER Approved, A671 CC60 Pipe TAKREER Approved, A671 CC65 Pipe TAKREER Approved, A671 CC70 Pipe TAKREER Approved, A671 CC60 Pipe Class 12, 22, 32 TAKREER Approved, A671 CC65 Pipe Class 12, 22, 32 TAKREER Approved, A671 CC65 Pipe Class 12, 22, 32 TAKREER Approved, A671 CC70 Pipe Class 12, 22, 32 TAKREER Approved, A671 CC60, CC65, CC70 Pipe TAKREER Approved, ASTM A671 Pipe LSAW Weded EFW TAKREER ApprovedTakreer(Abu Dhabi)
API 5L Grade B Pipe YASREF Approved, A671 CC60 Pipe YASREF Approved, A671 CC65 Pipe YASREF Approved, A671 CC70 Pipe YASREF Approved, A671 CC60 Pipe Class 12, 22, 32 YASREF Approved, A671 CC65 Pipe Class 12, 22, 32 YASREF Approved, A671 CC65 Pipe Class 12, 22, 32 YASREF Approved, A671 CC70 Pipe Class 12, 22, 32 YASREF Approved, A671 CC60, CC65, CC70 Pipe YASREF Approved, ASTM A671 Pipe LSAW Weded EFW YASREF ApprovedYASREF(Abu Dhabi) API 5L Grade B Pipe PETROBRAS Approved, A671 CC60 Pipe PETROBRAS Approved, A671 CC65 Pipe PETROBRAS Approved, A671 CC70 Pipe PETROBRAS Approved, A671 CC60 Pipe Class 12, 22, 32 PETROBRAS Approved, A671 CC65 Pipe Class 12, 22, 32 PETROBRAS Approved, A671 CC65 Pipe Class 12, 22, 32 PETROBRAS Approved, A671 CC70 Pipe Class 12, 22, 32 PETROBRAS Approved, A671 CC60, CC65, CC70 Pipe PETROBRAS Approved, ASTM A671 Pipe LSAW Weded EFW PETROBRAS ApprovedPetrobras(Brazil) API 5L Grade B Pipe PETRONAS Approved, A671 CC60 Pipe PETRONAS Approved, A671 CC65 Pipe PETRONAS Approved, A671 CC70 Pipe PETRONAS Approved, A671 CC60 Pipe Class 12, 22, 32 PETRONAS Approved, A671 CC65 Pipe Class 12, 22, 32 PETRONAS Approved, A671 CC65 Pipe Class 12, 22, 32 PETRONAS Approved, A671 CC70 Pipe Class 12, 22, 32 PETRONAS Approved, A671 CC60, CC65, CC70 Pipe PETRONAS Approved, ASTM A671 Pipe LSAW Weded EFW PETRONAS ApprovedPetronas(Malaysia) API 5L Grade B Pipe NIOC Approved, A671 CC60 Pipe NIOC Approved, A671 CC65 Pipe NIOC Approved, A671 CC70 Pipe NIOC Approved, A671 CC60 Pipe Class 12, 22, 32 NIOC Approved, A671 CC65 Pipe Class 12, 22, 32 NIOC Approved, A671 CC65 Pipe Class 12, 22, 32 NIOC Approved, A671 CC70 Pipe Class 12, 22, 32 NIOC Approved, A671 CC60, CC65, CC70 Pipe NIOC Approved, ASTM A671 Pipe LSAW Weded EFW NIOC ApprovedNIOC(Iran) API 5L Grade B Pipe NPDC Approved, A671 CC60 Pipe NPDC Approved, A671 CC65 Pipe NPDC Approved, A671 CC70 Pipe NPDC Approved, A671 CC60 Pipe Class 12, 22, 32 NPDC Approved, A671 CC65 Pipe Class 12, 22, 32 NPDC Approved, A671 CC65 Pipe Class 12, 22, 32 NPDC Approved, A671 CC70 Pipe Class 12, 22, 32 NPDC Approved, A671 CC60, CC65, CC70 Pipe NPDC Approved, ASTM A671 Pipe LSAW Weded EFW NPDC ApprovedNPDC(Nigeria) API 5L Grade B Pipe EGPC Approved, A671 CC60 Pipe EGPC Approved, A671 CC65 Pipe EGPC Approved, A671 CC70 Pipe EGPC Approved, A671 CC60 Pipe Class 12, 22, 32 EGPC Approved, A671 CC65 Pipe Class 12, 22, 32 EGPC Approved, A671 CC65 Pipe Class 12, 22, 32 EGPC Approved, A671 CC70 Pipe Class 12, 22, 32 EGPC Approved, A671 CC60, CC65, CC70 Pipe EGPC Approved, ASTM A671 Pipe LSAW Weded EFW EGPC ApprovedEgyptian General petroleum Corporation(Egypt)

Supplying API 5L SSC Tested Welded Pipes to Countries -

We Export API 5L SSC Tested Welded Pipe to Saudi Arabia, Iran, Iraq, United Arab Emirates, Qatar, Bahrain, Oman, Kuwait, Turkey, Egypt, Yemen, Syria, Israel, Jordan, Cyprus, Singapore, Malaysia, Indonesia, Thailand, Vietnam, South Korea, Japan, Sri Lanka, Maldives, Bangladesh, Mayanmar, Taiwan, Cambodia, Argentina, Bolivia, Brazil, Chile, Venezuela, Colombia, Ecuador, Guyana, Paraguay, Uruguay, United States of America, Canada, Mexico, Panama, Costa Rica, Puerto Rica, Trinidad And Tobago, Jamaica, Bahamas, Denmark, Russia, Norway, Germany, France, Italy, United Kingdom, Spain, Ukraine, Netherland, Belgium, Greece, Czech Republic, Portugal, Hungary, Albania, Austria, Switzerland, Slovakia, Finland, Ireland, Croatia, Slovenia, Malta, Nigeria, Algeria, Angola, South Africa, Libya, Egypt, Sudan, Equatorial Guinea, The Republic Of Congo, Gabon, Europe, Africa, Asia, North America, South America, Middle East, Far East.etc

Savoy Piping Inc. is a well known worldwide exporter of API 5L SSC Tested Welded Pipe, Savoy Piping Inc. is committed to provide each and every customer with the highest standard of customer service. We deals in API 5L SSC Tested Welded Pipe in India and Overseas, offering a wide range of API 5L SSC Tested Welded Line Pipes
