Understanding Electro Forged Grating Load Capacity

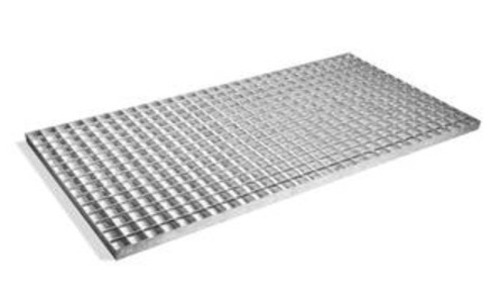

Electro-forged Gratings are manufactured by assembling a series of equally spaced metal bars to connect cross members (square twisted/round rods). The support bars and cross bars are permanently Welded together using heat and pressure to form a uniform structure.
Savoy Piping Inc. We are backed by our expertise in this domain, we offer our valued customers Electro forged grating. It manufactures us within our facilities. Electro forged grating is of extremely high quality and is known for its anti-corrosive nature and minimum carbide precipitation.
We Supply Steel Grating in Grades in Specification Serrated grating, Plain grating, Electro forged grating, Manual grating, Stainless steel grating, Mild steel grating, Stair tread, Grating clamp, Handrail, Steel walkway, Trench Cover, Steel Stair Threads etc. The grade indicates the testing methods required for a given application.
Savoy Piping Inc. specializes in Electro forged grating with years of Experience in Manufacturing Steel Grating. we offer high quality, lower cost but the best service. As a result to that our Steel Grating export account today is in various countries like Iran, Iraq, Kuwait, Saudi Arabia, Oman, UAE, Singapore, Malaysia, Indonesia, South korea, Chile, Peru, Venezuela, Australia, Nigeria, Angola, Senegal, Mozambique, Algeria, Libya, Azerbaijan, Netherlands, Brazil, Norway, United Kingdom, Mexico, Canada etc
The Basics of Electro Forged Gratings
Savoy Piping Inc. introduces the basics of Electro-Forged Grating it's one type of Steel Grating we use in industrial flooring, walkways, platforms, and stair treads and Electro-Forged Grating and FRP Grating specialise for manufacturing through a unique process that involves the fusion of bearing bars and crossbars using high electrical current. The twisted cross rods provide a non-slip walking surface. For applications where extremely slippery conditions prevail, serrated bearing bars are used for superior surface grip. The applications of Electro-Forged Grating are very diverse. Being extremely robust, safe yet light platform flooring, they are indispensable in all industries.
Factors Influencing Load Capacity
When we talk about the load capacity of Electroforged Grating so that time we consent to many points for proper calculation of load capacity The load capacity of electro-forged grating depends on several factors such as Bar Size and Spacing, Span, Load Type, Deflection and when we calculation of weight so we have to apply some formula or tables provided by manufacturers, which are based on Span Length (L) and Load (W) Concentrated or uniformly distributed and Grating Type: Based on the size and thickness of bearing and cross bars its most common simplified formula often used in industry for grating load capacity is (W=(fI)L^{2}) Savoy Piping Inc explain below the meaning of weight calculation formula
- W = Load capacity per unit area (N/mm²)
- f = Material’s yield stress (N/mm²)
- I = Moment of inertia of the bearing bar (mm⁴)
- L = Span of the grating (mm)
load tables and deflection charts for various Gratings snd FRP Grating types, bar sizes, and spans. These charts can be used to select the appropriate Gratings based on the required load capacity.
Calculating Load Capacity for Your Needs
Do you know why required of Calculating Load Capacity because electro forged grating and FRP Grating is essential for several reasons, especially when it comes to ensuring safety and structure application cost-effectiveness in industrial and commercial applications there are some essential points such as Meeting Design Requirements, Maximizing Durability and Longevity, Optimizing Material Usage and Cost, Customizing Grating and FRP Grating for Specific Applications we explain below
- Meeting Design Requirements
- Maximizing Durability and Longevity
- Optimizing Material Usage and Cost
- Customizing Grating for Specific Applications
Meeting Design Requirements Matching Load Capacity to Usage Different applications have unique load-bearing requirements. For example, pedestrian walkways need to support people and light loads, while industrial platforms may need to support heavy equipment or vehicles. Why Required of Electroforged Grating Calculating Load Capacity and Avoiding Over-Engineering Overestimating load requirements without calculation can lead to selecting heavier or more expensive materials than necessary. Maximizing Durability and Longevity When the load capacity is not calculated or is exceeded, it can cause excessive wear and tear on the grating, FRP Grating reducing its lifespan. Correct calculations ensure that the grating can handle the intended loads for long periods without damage. Load capacity calculations help to minimize the deflection (bending) of the grating under load.
Optimizing Material Usage and Cost Efficient Material Selection. This can reduce material waste and save costs while ensuring the Gratings can handle the required loads. Cost Control Over-specifying a grating and
FRP Grating with a higher load capacity than needed increases material costs unnecessarily. On the other hand, under-specifying can lead to premature failure, adding repair or replacement costs. and Customizing Grating for Specific Applications Tailored Solutions Different environments, such as offshore platforms, chemical plants, or factories, have distinct load and durability requirements. Calculating load capacity helps in customizing the Gratings design, such as selecting Stainless Steel for corrosion resistance or heavier bearing bars for high-load areas
Common Applications and Load Requirements
Electroforged Grating is a highly versatile material and it is used in a wide range of commercial and industrial Electro forged grating and FRP Grating is popular for its strength, durability, and ability to provide ventilation and drainage Its open-grid structure allows it to support heavy loads while maintaining a lightweight and low-maintenance profile, making it ideal for industrial, commercial, and even architectural applications Electro-forged grating and FRP Grating is used in major industrial and commercial applications such as Pedestrian Walkways, Vehicle Platforms, Industrial Flooring We explain some essential points below
- Pedestrian Walkways
- Vehicle Platforms
- Industrial Flooring
Pedestrian Walkways are Typically designed to carry loads of up to 5 kN/m², depending on foot traffic and Vehicle Platforms Heavy-duty Gratings can bear loads from vehicles, ranging from 30 to 100 kN/m² or more, based on the type of vehicle and Industrial Flooring Commonly designed to bear uniform distributed loads from heavy machinery or stored materials.
