NPT Stem Cover
Product Overview

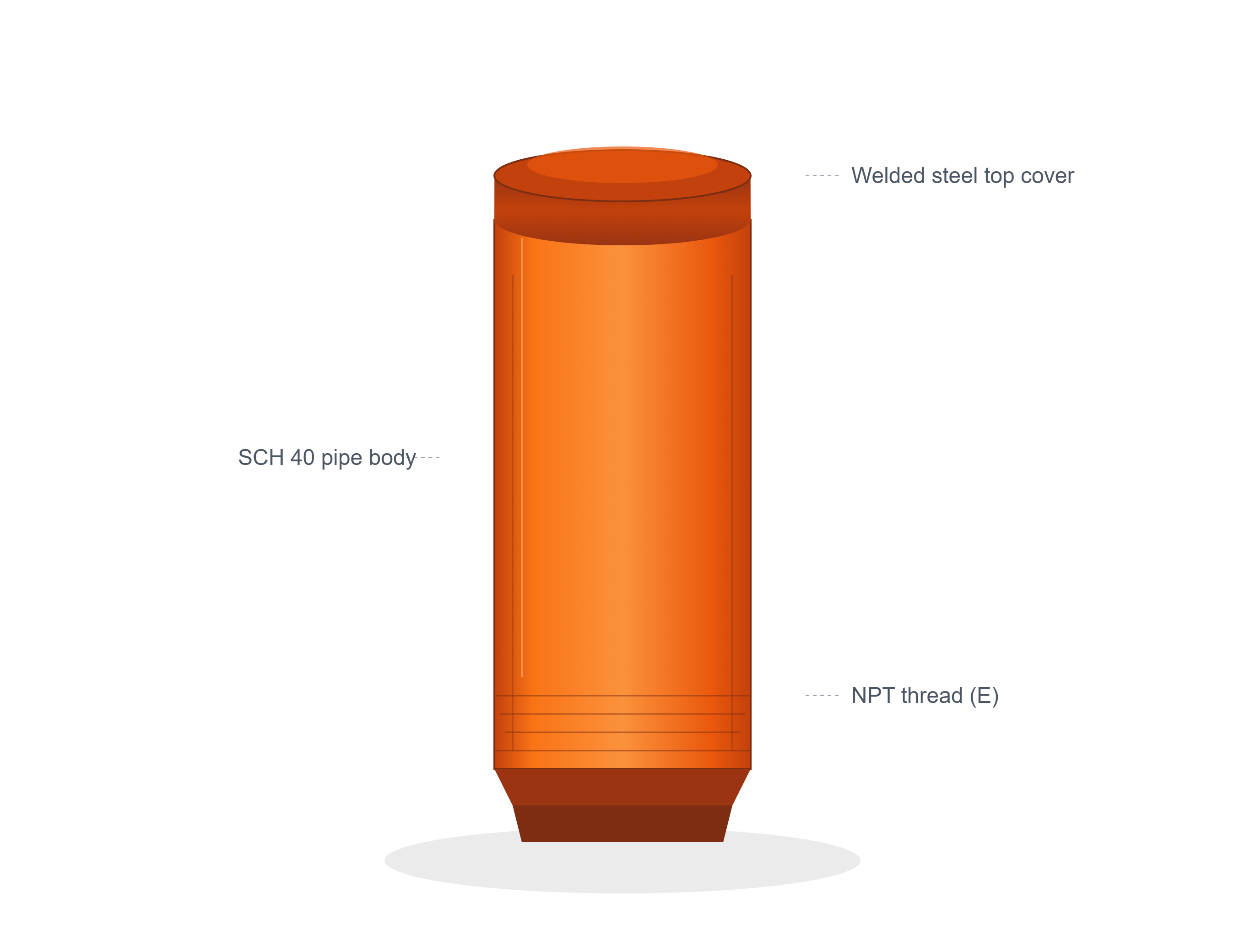

Our NPT Stem Covers are screwed-on protective enclosures designed to shield the valve stem and operator linkage from dust ingress, moisture, and mechanical damage. Manufactured from Schedule 40 pipe with a welded steel top cover, these covers thread directly onto the valve operator using standard NPT threads, offering a secure, low-maintenance protection solution for manual and actuated valve assemblies.
Available in two dust-protection configurations — Type 3 and Type 4 — to match your operator's stroke length and sealing requirements.
Key Features
- Threaded NPT connection for secure, tool-free installation and removal
- Schedule 40 pipe body with welded steel top cover for durability
- Two protection types (Type 3 / Type 4) to suit different stroke lengths and stem indicator rod diameters
- Wide size range — compatible with pipe sizes from 1¼" to 8" and beyond
- Broad operator compatibility — fits most standard manual and actuated valve operator series
- Corrosion-resistant finish suitable for outdoor and industrial environments
Dust Protection Types
| Type | Design | Minimum clearance |
|---|---|---|
| Type 3 | Compact clearance design for tighter installations | 0.50" (valves up to 6"), 1.00" (6" and above) |
| Type 4 | Extended clearance option for larger stroke lengths | 0.50" (valves up to 6"), 1.00" (6" and above) |
Type 3 — Compact clearance design for tighter installations. Minimum clearance: 0.50" (valves up to 6"), 1.00" (6" and above).
Type 4 — Extended clearance option for larger stroke lengths. Minimum clearance: 0.50" (valves up to 6"), 1.00" (6" and above).
Size Range
Standard NPT / pipe sizes from 1¼" to 8". Larger sizes available on request.
| Nominal size | Connection | Body | Dust types |
|---|---|---|---|
| 1¼" | NPT | Schedule 40 pipe + welded steel top | Type 3 / Type 4 |
| 1½" | NPT | Schedule 40 pipe + welded steel top | Type 3 / Type 4 |
| 2" | NPT | Schedule 40 pipe + welded steel top | Type 3 / Type 4 |
| 2½" | NPT | Schedule 40 pipe + welded steel top | Type 3 / Type 4 |
| 3" | NPT | Schedule 40 pipe + welded steel top | Type 3 / Type 4 |
| 4" | NPT | Schedule 40 pipe + welded steel top | Type 3 / Type 4 |
| 5" | NPT | Schedule 40 pipe + welded steel top | Type 3 / Type 4 |
| 6" | NPT | Schedule 40 pipe + welded steel top | Type 3 / Type 4 |
| 8" | NPT | Schedule 40 pipe + welded steel top | Type 3 / Type 4 |
Spec sheet PDF can be emailed on request — use Request Spec Sheet or the quote button above. Confirm Type 3 / Type 4 and operator series when ordering.
Applications
- Manual gate, globe, and ball valve operators
- Actuated valve assemblies requiring stem / linkage protection
- Outdoor and exposed piping installations
- Oil & gas, petrochemical, and industrial process piping systems
OEM manufacture to valve & actuator drawings
Savoy Piping Inc. manufactures NPT stem covers as OEM / made-to-drawing parts for valve manufacturers, actuator makers, EPCs and plant owners. Send your drawing, sample, or operator datasheet — we machine and fabricate to the dimensions and finish you specify.
Covers can be produced to suit operators and actuators commonly used with (and similar to) series from brands such as:
- Valve manufacturers: Velan, Flowserve, Crane, Kitz, Bonney Forge, L&T Valves, Audco / L&T, Emerson / Fisher, Cameron, and other OEM valve houses
- Actuator / operator series: Rotork, Limitorque, AUMA, Bettis, and equivalent manual handwheel / gearbox / electric actuator packages
We are not claiming authorised distributorship for those brands. We supply compatible stem covers manufactured to your OEM drawing or sample so valve builders and users can protect stems without redesigning the operator.
For OEM programmes: send drawing (PDF / DWG), NPT size, Type 3 or Type 4 (or custom clearance), material / finish, annual or batch quantity, and branding / marking needs if any. Email sales@savoypipinginc.com.
Type 3 vs Type 4 — quick compare
| Choose | When | Watch-outs |
|---|---|---|
| Type 3 | Tighter installs / compact clearance | Confirm stroke and indicator rod diameter |
| Type 4 | Larger stroke lengths / extended clearance | Same min clearances by valve size class |
| Size 1¼"–8" | Standard operator range on this page | Above 8" — enquire with drawing |
Copy-paste RFQ
NPT Stem Cover — Dust Protection Type: 3 / 4 / custom to OEM drawing Size (1-1/4" to 8"): ____ Valve / actuator OEM (e.g. Velan, Rotork, Limitorque): ____ Drawing / sample attached: Y/N Stroke / indicator rod dia: ____ Qty: ____ Finish: ____ Destination: ____
Email sales@savoypipinginc.com or use Contact Us.
Typical specification
| Product | NPT Valve Stem Cover — dust protection for valve operators |
| Connection | Screwed NPT onto valve operator |
| Construction | Schedule 40 pipe body with welded steel top cover |
| Dust protection | Type 3 (compact) / Type 4 (extended clearance) |
| Size range | 1¼" to 8" (larger on request) |
| Compatibility | Most standard manual and actuated valve operator series |
| Finish | Corrosion-resistant finish for outdoor / industrial service |
Frequently asked questions
What is an NPT valve stem cover?
An NPT stem cover is a screwed-on protective enclosure that threads onto the valve operator to shield the stem and actuator linkage from dust, debris, moisture and mechanical damage.
What is the difference between Type 3 and Type 4?
Type 3 is a compact clearance design for tighter installations. Type 4 is the extended clearance option for larger stroke lengths and stem indicator rod diameters. Both use minimum clearance of 0.50" for valves up to 6" and 1.00" for 6" and above.
What sizes are available?
Standard size range is 1¼" through 8" NPT / pipe size, with larger sizes on request. Confirm operator series and stroke length with the enquiry.
What should I send on the RFQ?
Type 3 or Type 4, NPT / pipe size, operator or actuator series if known, stroke length or stem indicator rod diameter, quantity, finish, and destination.
Export & documentation
We supply this product for domestic and export projects. Include destination, preferred Incoterms and any inspection need on the RFQ. Email sales@savoypipinginc.com.
