Introduction of Carbon Steel Buttweld Fittings
Carbon steel buttweld fittings are essential components in piping systems used for various industrial applications. These fittings are designed to connect, change direction, or branch off pipelines while ensuring a secure and leak-free connection. Carbon steel, a widely used and versatile material, is the primary material of construction for these fittings due to its durability, strength, and affordability.
Buttweld fittings are named as such because they are welded to the pipes using a butt-welding process. This involves welding the fittings to the ends of the pipes, creating a smooth, continuous connection without any protrusions or gaps that could potentially cause turbulence or leaks in the fluid or gas being transported.Carbon steel buttweld fittings come in a variety of shapes, sizes, and types, each serving a specific purpose in the piping system.
Some Common types of carbon steel buttweld fittings include:

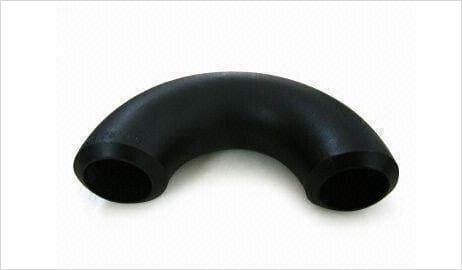

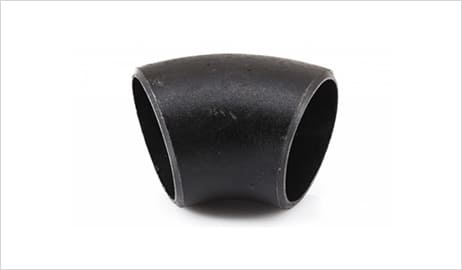

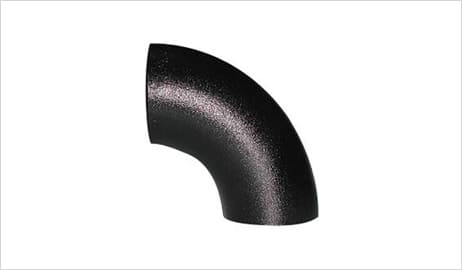

- Elbows: Elbows are fittings that allow changes in the direction of the piping system. They are available in different angles (e.g., 45°, 90°, 180°) to accommodate various piping configurations.

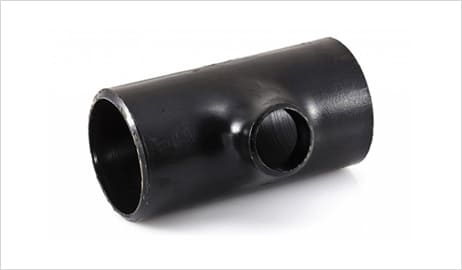

- Tees: Tees are used to create branches in the pipeline, splitting the flow into two or more directions. They come in "equal" tees (where all three outlets are of the same size) and "reducing" tees (where one outlet is larger or smaller than the others).

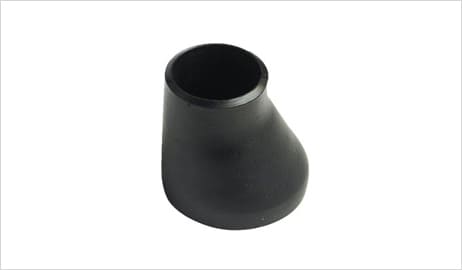

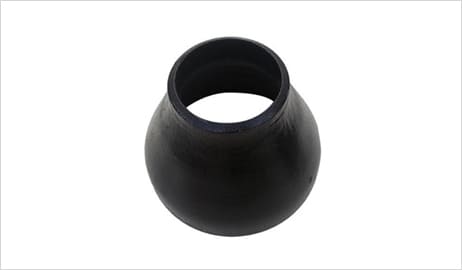

- Reducers: Reducers are used to connect pipes of different diameters. They help in transitioning from a larger pipe size to a smaller one or vice versa.

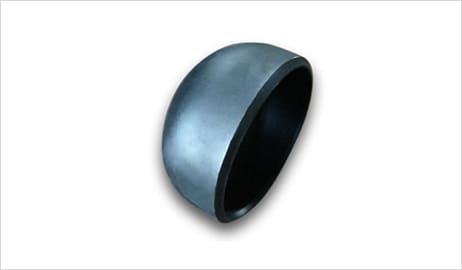

- Caps: Caps are used to seal the end of a pipe. They are often used for applications where the end of the pipe is not connected to another fitting.

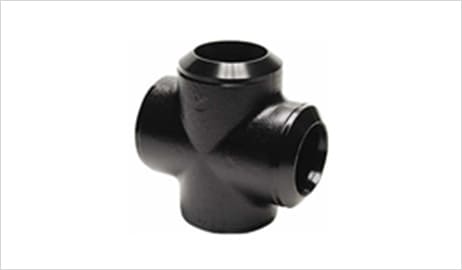

- Crosses: Cross fittings are similar to tees but have a fourth outlet at 90° to the other three. They are used in applications where a pipeline needs to branch off in multiple directions
Carbon steel buttweld fittings are chosen for their excellent mechanical properties, such as high tensile strength and impact resistance. They are particularly suited for high-pressure and high-temperature environments commonly found in industries such as oil and gas, petrochemicals, power generation, and more.
However, it's important to note that carbon steel is susceptible to corrosion, especially in environments with moisture or certain chemicals. To mitigate this, fittings can be coated or lined with protective materials or coatings, or stainless steel fittings can be used in more corrosive environments.Proper welding techniques and quality control are crucial during installation to ensure a reliable and leak-free piping system. Carbon steel buttweld fittings, when used and installed correctly, contribute to the overall efficiency and safety of industrial operations.
ANSI B16.9 Carbon Steel Welded Butt weld Fittings, Carbon Steel 10d Pipe Bend, Carbon Steel WPB Seamless Pipe Fittings, Carbon Steel Butt weld Fittings, Carbon Steel 1D Bend, Carbon Steel 10D Bend, Carbon Steel Pipe bend Exporter, Carbon Steel Pipe Elbow, Carbon Steel U Bend, Carbon Steel WPB Long Stub, Carbon Steel Short Radius Elbow Supplier, Supplier of Carbon Steel 45 degree Elbow, Carbon Steel 3D Bend, Carbon Steel WPB Cross Manufacturer in India.
Savoy Piping Inc. is one of the leading Manufacturer, Exporter, Stockist & Supplier of Carbon Steel Butt Weld Fittings in India. This Specification covers wrought carbon steel and alloy steel fittings of seamless and welded construction. This CS Pipe Fittings are used in pressure vessel fabrication for service at moderate and elevated high temperatures and in pressure piping.
Our CS Fittings offered and manufactured as per ASTM STD with all material normalized at proper temperature to maintain its strength and is always supplied with NACE compliance. SPI manufacture's astm a234 wpb Carbon Steel Pipe fittings and also keep stock for our clients urgent requirements. Our CS Butt welding fittings are manufactured by highly trained workers. We also provide Carbon steel fittings with providing value added services like Hot Dipped Galvanizing, Epoxy Coating, Sand Blasting etc. We also supply IBR Carbon steel Products to various clients in different sectors. We take orders under third party agencies like BV, DNV, TUV, LLOYDS, LINDE, MECON, Chempro, PDIL, TOYO, UDHE, EIL, etc.
Carbon Steel Buttweld Fittings SPECIFICATION :
| Butt Weld Fitting Specification | ASTM A403/ ASTM SA403, ASTM A815 / ASME SA815, ASTM A420 / ASME SA420, ASTM A234 / ASME SA234, ASTM A860 / ASME SA860, ASTM B366 / ASME SB366, DIN 2605 Part 1 / DIN 2605 Part 2, EN10253-2 / EN10253-4 TC1 and TC2 |
| Butt Weld Fittings Manufacturing Process | Hot / Cold / Fabricate / Seamless / Welded / Induction |
| Butt Weld Fittings Other Grades | Stainless Steel - 304, 304L, 304H, 310s, 316, 316L, 317L, 321, 347, 904L, 410, 446 etc. Carbon Steel - WPB, WPC, WPL6, WPHY42, WPHY46, WPHY52, WPHY56, WPHY60, WPHY65 etc. Alloy Steel - WP5, WP9, WP11, WP22, WP91, 4140, Class 1, 2, 3 etc. Duplex and Super Duplex - UNS N031803, UNS N032750, UNS N032760 etc. Inconel - 600, 601, 625, 718, UNS N06600, UNS N06601, UNS N06625, UNS N07718 etc. Incoloy - 800, 800H, 800HT, 825, UNS N08800, UNS N08810, UNS N08811, UNS N08825 etc. Monel - 400, UNS N04400 etc. Hastelloy - C276, C22, UNS N010276, UNS N06022 etc. Titanium - Grade 2, Grade 3, UNS R50400, UNS R56200 etc. Copper Nickel - 90/10, 70/30, UNS C71500, UNS C70600 etc. Other - Alloy 20, SMO 254, UNS N08020, UNS N031254 etc. EN / DIN P235GHTC1/2 (St 35.8 I/ III), P265GH, S355J2H 16Mo3 (15Mo3), 10CrMo9-10 (10CrMo910), 13CrMo4-5 (13CrMo44) X11CrMo5, X11CrMo9-1, X20CrMOV11-1, X10CrMoVNb9-1, X10CrWMoVNb9-2, 7CrMoVTiB10-10 P215NL (TTST35N/V), 12Ni14 (10Ni14) P355N (StE355), P355NH (WStE355), P355NL1 (TStE355), P355NL2, L290NB (STE 290.7), L360NB (STE 360.7) 1.4301, 1.4306, 1.4362(Lean Duplex), 1.4401, 1.4404, 1.4435, 1.4436, 1.4439, 1.4462(Duplex), 1.4466(Super Duplex), 1.4501, 1.4539, 1.4541, 1.4550, 1.4571 1.4841, 1.4878,, 1.4876, 1.4952, 1.4835, 1.4877, 1.4910 |
| Butt Weld Fittings Outer Diameter | 1/2" NB TO 48" NB |
| Butt Weld Fittings Wall Thickness or Schedule | Sch 10s to Sch XXS or As Per Custom Requirement |
| Butt Weld Fittings Types | 45 Degree Elbow, 90 Degree Elbow, 180 Degree Elbow, LR Elbow (Long Radius Elbow), SR Elbow (Short Radius Elbow), Equal Tee, Reducing / Unequal Tee, Concentric Reducer, Eccentric Reducer, End Cap, Long Stub End, Short Stub End, Lap Joint Stub End, Equal Cross, Reducing / Unequal Cross, Seamless Fittings, Welded Fittings, 1.5D, 3D, 5D etc. |
| Butt Weld Fittings Dimension | ASME 16.9 - Factory-Made Wrought Buttwelding Fittings ASME B16.28 - Wrought Steel Buttwelding Short Radius Elbows and Returns MSS SP-43 - Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications |
| Butt Weld Fittings Other Testing | Tensile, Hardness Test, Chemical Analysis – Spectro Analysis, Positive Material Identification – PMI Testing, Flattening Test, Micro and Macro Test, Pitting Resistance Test, Flaring Test, Intergranular Corrosion (IGC) Test, NACE MR0175, Ultrasound Test, ASTM A262 Practice E, Charpy Impact Test, Grain Size, Dye Penetrant Test etc. |
| Butt Weld Fittings Packaging | Carrate / Wooden Pallet / Wooden box-a |
| Butt Weld Fittings Shipment & Transportation | By Road - Truck / Train Partial Load, Full Load, By Sea - Break-bulk Conventional Vessel / FCL (Full Container Load) / LCL (Less Container Load) / 20 Feet Container / 40 Feet Container / 45 Feet Container / High Cube Container / Open Top Container, By Air - Freighter Civil Passenger and Cargo Planes |
| Butt Weld Fittings Material Test Certificate | Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS, Indian Boiler Regulations - 1950, IBR Approved, Bureau of Indian Standards BIS Approved Etc. |
Carbon Steel ASTM A234 WPB Pipe Fittings
Seamless/ Welded 100% Radiography Tested
| Products | Size | |

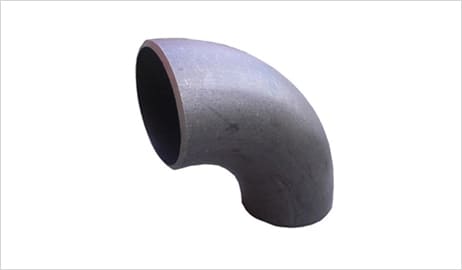

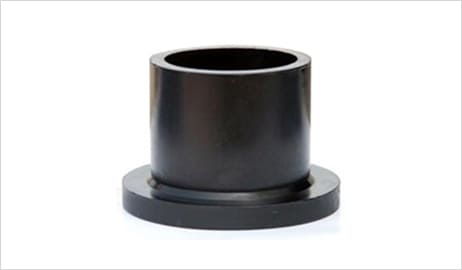

| Carbon Steel ASTM A234 WPB Elbow – Long Radius | Carbon Steel ASTM A234 WPB Stub Ends | Sizes 1/2″ – 48″ |

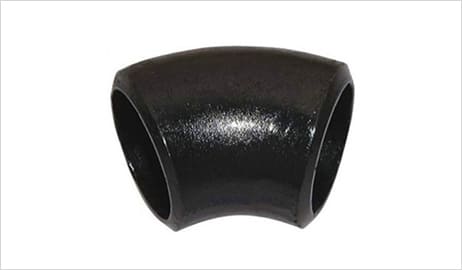

| Carbon Steel ASTM A234 WPB Elbow – Short Radius | Carbon Steel ASTM A234 WPB Cross | |
| Carbon Steel ASTM A234 WPB Reducing Elbow | Carbon Steel ASTM A234 WPB Reducing Cross | |

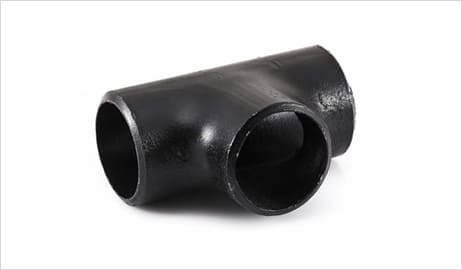

| Carbon Steel ASTM A234 WPB 45° Elbow | Carbon Steel ASTM A234 WPB Tees | |
| Carbon Steel ASTM A234 WPB Fabricated Tee | Carbon Steel ASTM A234 WPB End Cap | |
| Carbon Steel ASTM A234 WPB Reducer | Carbon Steel ASTM A234 WPB Seamless Fittings | |
| Carbon Steel ASTM A234 WPB Concentric Reducer | Carbon Steel ASTM A234 WPB Pipe Nipple | |
| Carbon Steel ASTM A234 WPB Eccentric Reducer | Carbon Steel ASTM A234 WPB 5D Elbow | |
| Carbon Steel ASTM A234 WPB 3D Elbow | Carbon Steel ASTM A234 WPB Welded Pipe Fittings | |
Types Of Grade Carbon Steel Buttweld Fittings
CARBON STEEL BUTTWELD FITTINGS CHEMICAL COMPOSITION
| AISI OR SAE |
C | MN | P MAX | S MAX |
|---|---|---|---|---|
| 1005* | .06 max | .35 max | .040 | .050 |
| 1006* | .08 max | .25/.40 max | .040 | .050 |
| 1008 | .10 max | .30/.50 max | .040 | .050 |
| 1010 | .08/.13 max | .30/.60 max | .040 | .050 |
| 1011* | .08/.13 max | .60/.90 max | .040 | .050 |
| 1012 | .10/.15 max | .30/.60 max | .040 | .050 |
| 1013* | .11/.16 | .50/.80 | .040 | .050 |
| 1015 | .13/.18 | .30/.60 | .040 | .050 |
| 1016 | .13/.18 | .60/.90 | .040 | .050 |
| 1017 | .15/.20 | .30/.60 | .040 | .050 |
| 1018 | .15/.20 | .60/.90 | .040 | .050 |
| 1019 | .15/.20 | .70/1.00 | .040 | .050 |
| 1020 | .18/.23 | .30/.60 | .040 | .050 |
| 1021 | .18/.23 | .60/.90 | .040 | .050 |
| 1022 | .18/.23 | .70/1.00 | .040 | .050 |
| 1023 | .20/.25 | .30/.60 | .040 | .050 |
| 1025 | .22/.28 | .30/.60 | .040 | .050 |
| 1026 | .22/.28 | .60/.90 | .040 | .050 |
| 1029 | .25/.31 | .60/.90 | .040 | .050 |
| 1030 | .28/.34 | .60/.90 | .040 | .050 |
| 1035 | .32/.38 | .60/.90 | .040 | .050 |
| 1037 | .32/.38 | .70/1.00 | .040 | .050 |
| 1038 | .35/.42 | .60/.90 | .040 | .050 |
| 1039 | .37/.44 | .70/1.00 | .040 | .050 |
| 1040 | .37/.44 | .60/.90 | .040 | .050 |
| 1042 | .40/.47 | .60/.90 | .040 | .050 |
| 1043 | .40/.47 | .70/1.00 | .040 | .050 |
| 1044 | .43/.50 | .30/.60 | .040 | .050 |
| 1045 | .43/.50 | .60/.90 | .040 | .050 |
| 1046 | .43/.50 | .70/1.00 | .040 | .050 |
| 1049 | .46/.53 | .60/.90 | .040 | .050 |
| 1050 | .48/.55 | .60/.90 | .040 | .050 |
| 1053 | .48/.55 | .70/1.00 | .040 | .050 |
| 1055 | .50/.60 | .60/.90 | .040 | .050 |
| 1059* | .55/.65 | .50/.80 | .040 | .050 |
| 1060 | .55/.65 | .60/.90 | .040 | .050 |
| 1064* | .60/.70 | .50/.80 | .040 | .050 |
| 1065* | .60/.70 | .60/.90 | .040 | .050 |
| 1069* | .65/.75 | .40/.70 | .040 | .050 |
| 1070 | .65/.75 | .60/.90 | .040 | .050 |
| 1074* | .70/.80 | .50/.80 | .040 | .050 |
| 1075* | .70/.80 | .40/.70 | .040 | .050 |
| 1078 | .72/.85 | .30/.60 | .040 | .050 |
| 1080 | .75/.88 | .60/.90 | .040 | .050 |
| 1084 | .80/.93 | .60/.90 | .040 | .050 |
| 1085* | .80/.93 | .70/1.00 | .040 | .050 |
| 1086* | .80/.93 | .30/.50 | .040 | .050 |
| 1090 | .85/.98 | .60/.90 | .040 | .050 |
| 1095 | .90/1.03 | .30/.50 | .040 | .050 |
CARBON STEEL BUTTWELD FITTINGS MECHANICAL PROPERTIES
| Properties | Metric | Imperial |
|---|---|---|
| Tensile strength, ultimate | 635 MPa | 92100 psi |
| Tensile strength, yield | 490 MPa | 71100 psi |
| Modulus of elasticity | 0.27-0.30 | 0.27-0.30 |
| Bulk modulus (typical for steel) | 140 GPa | 20300 ksi |
| Shear modulus (typical for steel) | 80 GPa | 11600 ksi |
| Poissons ratio (typical for steel) | 0.27-0.30 | 0.27-0.30 |
| Elongation at break (in 50 mm) | 10% | 10% |
| Reduction of area | 45% | 45% |
| Hardness, Brinell | 187 | 187 |
| Hardness, Knoop (converted from Brinell hardness) | 209 | 209 |
| Hardness, Rockwell B (converted from Brinell hardness) | 90 | 90 |
| Hardness, Rockwell C (converted from Brinell hardness. Value below normal HRC range, for comparison purposes only) | 10 | 10 |
| Hardness, Vickers (converted from Brinell hardness) | 196 | 196 |
| Machinability (based on AISI 1212 steel. as 100 machinability) | 60 | 60 |
Carbon Steel ASTM A234 WPB Buttweld Fittings Available Types
| Carbon Steel Pipe Fittings | Carbon Steel WPB Buttweld Pipe Fittings |
| Carbon Steel A234 WPB Seamless Pipe Fittings | Carbon Steel A234 Welded Pipe Fittings |
| Carbon Steel A234 WPB Pipe Elbow | Carbon Steel Buttweld Tee |
| Carbon Steel Buttweld Reducer Suppliers | ANSI WPB Carbon Steel Pipe Fittings |
| Carbon A234 WPB Stubends Dealer | ASTM A234 WPB Pipe Fittings Exporter |
| Carbon Steel WPB Butt weld Fittings Stockholder | Steel WPB Pipe End Cap Distributors |
| Carbon Steel WPB 45deg.Elbow | A234 WPB 90deg. LR Elbow Manufacturer |
| Carbon Steel Grade WPB Pipe Tee | Carbon Steel ASTM A234 WPB Cross |
| CS WPB Butt weld Reducing Nipple | Carbon WPB Short Radius Elbow |
| ANSI B16.9 ASTM A234 WPB Buttweld Fitting | A234 WPB End Pipe Cap Stockist |
| ASTM A234 WPB Welded Pipe Fittings | Carbon Steel ASME SA234 WPB Pipe Fittings |
