Savoy Piping Inc., has evolved as an organization with global reach and having multi business activities. Our huge manufacturing facility located at Mumbai offer a wide variety of Coil Syphons.
The Coil Shaped Syphon design is a reason for its recognition as a coil syphon, which are extensively celebrated in the industries for its effectiveness in preventing pressure gauge from the effect of hot pressure media and reducing the effect of quick pressure surges. This coil syphon permits the formation of condensate that gathered inside the syphon and hence prevents direct contact of hot media with the pressure instruments. The excellent command of this coil syphon has made it widely popular as freeze protector.
Coil Syphon – Used Primarily For Vertical Installations
Coil syphons are used significantly to protect pressure instruments, pressure gauge syphon, switches and transmitters straightly contacting with high temperature process fluids or vapours. This coil syphon is installed between process and pressure instruments and filled with condensation fluids that reduce process pulsation and function as heat dispensed and save instrument from working at unsafe temperatures.
Available Pressure Ranges
Based upon 12″ Syphon
Maximum Pressure up to 80 Bar up to 300˚C Maximum
Maximum Pressure up to 100 Bar up to 120˚C Maximum
Maximum Pressure up to 400 Bar up to 60˚C Maximum
Available Temperature Ranges
Based upon 12″ Syphon
Maximum Temperature up to 300 Deg C up to Maximum 80 Bar
Maximum Temperature up to 120 Deg C up to Maximum 100 Bar
Maximum Temperature up to 60 Deg C up to Maximum 400 Bar
Available Connection Size
- ½” NPT Male / Male Testing
- ½” BSP Male / Male with locknut
- 3/8” NPT Male / Male
- 3/8” BSP Male / Male with locknut
Customized range of the Pressure Gauge Syphon is available on request
Pressure Gauge Syphons Specification
Syphon Pipe : ½” Pipe Sch 40 or 80 or 120
Connection Type : MxM, MxF, FxF
Thread Size : 3/8” or ½” bsp or npt
Pressure Rating (Sch 40) : 135 bar at 400 deg C
Type : Q type, O Type, Plate U Type, Straight U Type
Pressure Gauge Syphon Tube Material of Construction
| Monel | Monel 400, Monel K500, Monel R-405 |
| Nickel | Nickel 200, Nickel 201 |
| Inconel | Inconel 600, Inconel 601, Inconel 625, Inconel 718 |
| Incoloy | Incoloy 800, Inconel 800H, 800HT |
| Hastelloy | Hastelloy B2, Hastelloy B3, Hastelloy C22, Hastelloy C276, Hastelloy X |
| Titanium | Gr1, Gr2, Gr3, Gr5, Gr7, Gr11 |
| Stainless Steel | ASME / ASTM SA / A312 SA / A213 304, 304L, 316, 316L, 304/304L, 304H, 316H, 316/316L, 321, 330, 347, 309/S, 310/S, 317/L, 333, 410/S, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404 |
| Carbon Steel | ASTM A 106, ASTM A333 |
| Duplex Steel | ASTM / ASME A/SA790 UNS S31803, UNS S32750, UNS S32760 |
| Alloy Steel | ASTM SA 335 P5, P9, P11, P22, P91 |
Common Sizes of Pressure Gauge Syphons Tube
Common size of Syphon U Type is SS 316 & SS 304 Syphons 1/4” NPTM x 1/4” NPTM, SCH 40
Common sizes of U Type Umbrella Syphon is SS 316 & SS 304 Syphons, U type, 1/4” NPTM x 1/4” NPTM, SCH 80
Common sizes of Syphons 90 Degree Pigtail Q-type is SS 316 & SS 304 Syphons 90 deg, Q-type 1/2" NPTM, Schedule 80
Common sizes of Pigtail Syphon Q Type 180 degrees is SS 316 & SS 304 Syphons 180 deg 1/2" NPTM x 1/2" NPTF, Schedule 80

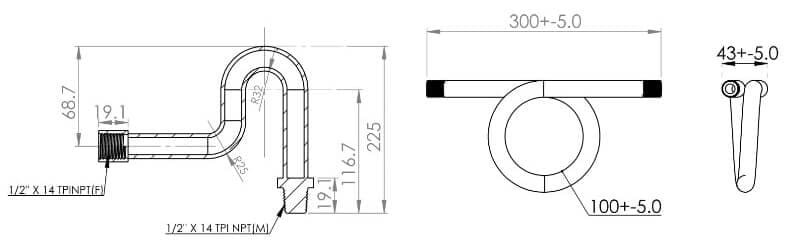

Coil Syphon Tube Grade and Dimension
| MATERIAL | PIPE SIZE | DI | SCH 40 | SCH 80 | SCH 160 | SCH XXS | ||||
| PLAIN x THREADED | DIA | LENGTH L1 |
PRESSURE Kg/cm2 |
LENGTH L1 |
PRESSURE Kg/cm2 |
LENGTH L1 |
PRESSURE Kg/cm2 |
LENGTH L1 |
PRESSURE Kg/cm2 |
|
| A 106 Gr. B | 1/4" | 4" | 175 | 300 | 175 | 600 | 175 | 900 | 175 | 1500 |
| SS 316/316L | 1/4" | 4" | 175 | 300 | 175 | 600 | 175 | 900 | 175 | 1500 |
| SS 304 | 1/2" | 6" | 175 | 300 | 175 | 600 | 175 | 900 | 175 | 1500 |
| A335 Gr. P11 | 1/2" | 6" | 175 | 300 | 175 | 600 | 175 | 900 | 175 | 1500 |
Materials: carbon steel, SS304 and SS316 Connected between the pressure gauge and process in applications where high temperature vapors or fluids are present or temperature above 65 degrees Celsius Acts as cooling coil and protects the gauge from high temperature vapors, also syphons help in dissipating heat
Tube types: U type, Q TYPE type (pigtail and coil type)
Operating temperature:
Steel: 210kg/cm2 at 20°C
Stainless steel: 260kg/cm2 at 20°C
S/W, Screwed NPT, BSP, Male/ Female, Swivel type
Benefit of using Syphon Tube
-Syphons protect pressure measuring instruments from pulsations in the medium and from excessive heating
-To protect pressure measuring instruments from vibration
-Cooling element for fluids, gases and vapours in pressure measurement
-For direct mounting to the pressure connection of the pressure measuring instrument or to the shut-off device (stopcock or valve) mounted underneath
-Compact Design – acquires less space for installation
-Steam Protection – Generates a condensate barrier between the live steam process line and the pressure measurement
-Freeze Protection – Develops a barrier to prevent freezing of instruments on wet air lines when the gauge syphon is filled with glycol. And to protect from freezing, kerosene is used.
-Immediate Installation – No requirement of instruments for installation saves time
-Gauge Whip Protection – diminish gauge whip by removing longer pigtail, permits close coupling to the respective process.
Pressure Gauge Syphons Applications
- Oil and gas equipments
- Offshore technology
- Seawater desalination plants
- Chemical industry
- Bridges
- Storage tanks
- Medical Industry
- Civil Engineering
- Pressure vessels, reactor tanks, and heat exchangers
- Rotors, impellers and shafts
- Power plants
- Petrochemical
- Shipbuilding industry
Pressure Gauge Syphons Exported Countries
We Export Coil Syphons to Saudi Arabia, Iran, Iraq, United Arab Emirates, Qatar, Bahrain, Oman, Kuwait, Turkey, Egypt, Yemen, Syria, Israel, Jordan, Cyprus, Singapore, Malaysia, Indonesia, Thailand, Vietnam, South Korea, Japan, Sri Lanka, Maldives, Bangladesh, Mayanmar, Taiwan, Cambodia, Argentina, Bolivia, Brazil, Chile, Venezuela, Colombia, Ecuador, Guyana, Paraguay, Uruguay, United States Of America, Canada, Mexico, Panama, Costa Rica, Puerto Rica, Trinidad And Tobago, Jamaica, Bahamas, Denmark, Russia, Norway, Germany, France, Italy, United Kingdom, Spain, Ukraine, Netherland, Belgium, Greece, Czech Republic, Portugal, Hungary, Albania, Austria, Switzerland, Slovakia, Finland, Ireland, Croatia, Slovenia, Malta, Nigeria, Algeria, Angola, South Africa, Libya, Egypt, Sudan, Equatorial Guinea, The Republic Of Congo, Gabon, Europe, Africa, Asia, North America, South America, Middle East, Far East.etc
Pressure Gauge Syphons Supplying in States and Cities
We Supply Coil Syphons Andhra Pradesh, Arunachal Pradesh, Assam, Bihar, Chhattisgarh, Goa, Gujarat, Haryana, Himachal Pradesh, Jammu and Kashmir, Jharkhand, Karnataka, Kerala, Madhya Pradesh, Maharashtra, Manipur, Meghalaya, Mizoram, Nagaland, Odisha, Punjab, Rajasthan, Sikkim, Tamil Nadu, Telangana, Tripura, Uttar Pradesh, Uttarakhand, West Bengal, Mumbai, Navi Mumbai, Pune, Nashik, Nagpur, Solapur, Kolhapur, Ambernath, Ahmednagar, Latur, Ahmadabad, Surat, Rajkot, Vadodara, Panaji, Madgaon, Chennai, Kolkata, Hyderabad, Bengaluru, Delhi, New Delhi, Ludhiana, Chandigarh, Raipur, Bhopal, Jamshedpur, Vishakhapatnam, Cochin, Ghaziabad, Noida, Gurugram, Bhillai, Durgapur, Vijaywada, Kanpur etc.
Savoy Piping Inc., is a well known worldwide Exporter of Coil Syphons, Savoy Piping Inc., is committed to provide each and every customer with the highest standard of customer service. We deals in Coil Syphons in India and Overseas, offering a wide range of Coil Type Syphons
