ASTM A240 Grade 304H Stainless Steel with its higher carbon content finds application at elevated temperatures. The austenitic structure also gives these grades excellent toughness, even down to cryogenic temperatures
Savoy Piping Inc., are recognized as the prominent Manufacturer, Trader and Supplier of a broad assortment of ASTM A240 304H Stainless Steel Plates. The offered steel plate is designed with utmost precision in conformity with the international quality standards.
ASTM A240 Stainless Steel, also known as inox steel, is a steel alloy with a minimum of 10.5 or 11% chromium content by mass.
Stainless steel Plate does not stain, corrode, or rust as easily as ordinary steel, but it is not stain-proof.
The term 'corrosion resistant steel' is used when the alloy has less than the 12% minimum of chromium, for example in the aviation industry. There are different grades and surface finishes of stainless steel, depending on where it will be used. Stainless steels have a higher resistance to oxidation (rust) and corrosion in many natural and man-made environments; however, it is important to select the correct type of stainless steel for the use. There are over 150 grades of stainless steel, of which fifteen are the most used.
An ISO 9001:2008 Certified Company, Savoy piping Inc., is a leading Stockholder, Supplier and Exporter of ASTM A240 304H Stainless Steel Plate. ASTM A240 304 Stainless Steel Plates are cut to your specifications and supplied with complete set of mill test reports. Custom length and width up to 2000 mm can be made available. Exports is Our Specialty! and we can source many hard to find grades and or non-standards sizes to meet the special requirements of our customers. All ASTM SS ASTM A240 304H Steel Plate can be cut to size with the help of our extensive expertise in processing steel Plate products.

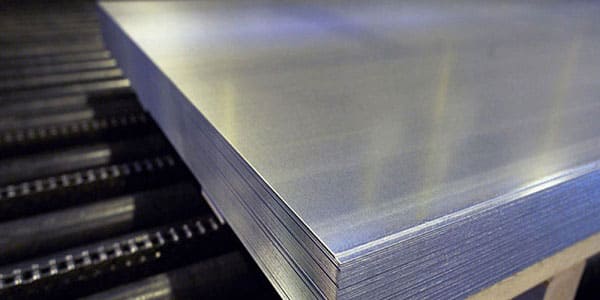

Our stock of ASTM A240 304H Stainless Steel Plate includes thickness of 6mm up to 80mm with width of 1250mm, 1500mm, 2000mm.
|ASTM A240 304H Stainless Steel Plate Specification||ASTM A240 / ASME SA240|
|ASTM A240 304H Stainless Steel Plate Manufacturing Process||Hot Rolled (HR) / Cold Rolled (CR)|
|ASTM A240 304H Stainless Steel Plate Grades||202 / 304 / 304L / 304H / 309S / 310S / 316 / 316L / 316Ti / 317L / 321 / 321H / 347 / 347H / 904L etc.
UNS No. - UNS S30400, UNS S30403, UNS S31008, UNS S31620, UNS S31603, UNS S31603, UNS S31635, UNS S31703, UNS S32100, UNS S34700, UNS S34709, UNS S8904
EN No. - 1.4301, 1.4307, 1.4845, 1.4401, 1.4404, 1.4571, 1.4438, 1.4541, 1.4550, 1.4551, 1.4539
|ASTM A240 304H Stainless Steel Plate Thickness||0.6 MM TO 80 MM THICKNESS|
|ASTM A240 304 Stainless Steel Plate Width||1250 MM / 1500 MM / 2000 MM / 04 Feet / 05 Feet and Custom Cut Width as Per Requirement|
|ASTM A240 304H Stainless Steel Plate Length||2400 MM / 2420 MM / 6000 MM / 08 Feet / 10 Feet / Coil Cut and Custom Cut Length as Per Requirement|
|ASTM A240 304H Stainless Steel Plate Surface Finish||2B, 2D, BA, MATT, MATT PVC, No.4, No.5, SB, HR, No.8, Mirror, Hairline, Brush, Textured, Oil base wet Polished, Both sides Polished available.|
|ASTM A240 304H Stainless Steel Plate Coating||PVC coating Normal / Laser, Film: 100 micrometer, Color: black/white.|
|ASTM A240 304H Stainless Steel Plate Other Testing||NACE MR0175, Ultrasoung TEST, IGC TEST, Intergranular Corrrosion Test as per ASTM A262 Practice E, Charpy Impact Test, Macro, Grain Size, Hardness, etc.|
|ASTM A240 304H Stainless Steel Plate Value Added Services||Gas Cutting / CNC Plasma Cutting / Profiling / Rolling / Bending / Sheet Metal Fabrication / Drill / Punch / Machining / Sand Blasting / Shot Blasting / Heat Treatment|
|ASTM A240 304H Stainless Steel Plate Packaging||Loose / Carrate / Wooden Pallet / Wooden box-a / Plastic Cloth Wraps|
|ASTM A240 304H Stainless Steel Plate Shipment & Transportation||By Road - Truck / Train Partial Load, Full Load, By Sea - Break-bulk Conventional Vessel / FCL (Full Container Load) / LCL (Less Container Load) / 20 Feet Container / 40 Feet Container / 45 Feet Container / High Cube Container / Open Top Container, By Air - Freighter Civil Passenger and Cargo Planes|
|ASTM A240 304H Stainless Steel Plate Material Test Certificate||Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS, Bureau of Indian Standards BIS Approved ETC|
The chemical composition of grade ASTM A240 304H Stainless Steel is outlined in the following table
|304||0.07max||2.0max||0.75max||0.045max||0.03max||min: 18.0 max: 20.0||min: 8.0 max: 10.5||—|
|304L||0.03max||2.0max||0.75max||0.045max||0.03max||min: 18.0 max: 20.0||min: 8.0 max: 12.0||0.10 max|
|304H||min: 18.0 max:20.0||min: 8.0 max: 10.5||min: 0.04 max:0.10||0.75 max||2.0 max||0.045 max||0.03 max||0.10 max|
The mechanical properties of grade ASTM A240 304H Stainless Steel Plates are displayed in the following table.
|Grade||Tensile Strength (MPa) min||Yield Strength 0.2% Proof (MPa) min||Elongation (% in 50mm) min||Hardness|
|Rockwell B (HR B) max||Brinell (HB) max|
|304H also has a requirement for a grain size of ASTM No 7 or coarser.|
Physical properties of ASTM A240 304H grade stainless steel in the annealed condition
|Grade||Density(kg/m3)||Elastic Modulus (GPa)||Mean Coefficient of Thermal Expansion (μm/m/°C)||Thermal Conductivity (W/m.K)||Specific Heat 0-100°C (J/kg.K)||Electrical Resistivity (nΩ.m)|
|0-100°C||0-315°C||0-538°C||at 100°C||at 500°C|
Steel no. k.h.s DIN
|1.4408||G-X 6 CrNiMo 18-10||316||S31600|
|1.4845||X 5 CrNi 2520||310S||S31008|
Buy Now ASTM A240 304H Stainless Steel Plate at an Attactive Discounted Price, Order Above USD $ 25000 are Eligible of 2% Discount. We Offer Free Insurance and Best Shipping Rates. Our Prices are Always More Competitive and without any compromise in Quality of the Material.
ASTM A240 304H Stainless Steel Plates is Covered with Platic Cloth and Packed in Wooden box-a, Wooden Pallet and Wooden Fumigated Carrate. Our Packaging is Fully Waterproof and Safe for Transport with Proper Strips on Wooden box-a, having Lifting Point.
We Export ASTM A240 304H Stainless Steel Plates to Saudi Arabia, Iran, Iraq, United Arab Emirates, Qatar, Bahrain, Oman, Kuwait, Turkey, Egypt, Yemen , Syria, Israel, Jordan, Cyprus, Singapore, Malaysia, Indonesia, Thailand, Vietnam, South Korea, Japan, Sri Lanka, Maldives, Bangladesh, Mayanmar, Taiwan, Cambodia, Argentina, Bolivia, Brazil, Chile, Venezuela, Colombia, Ecuador, Guyana, Paraguay, Uruguay, United States Of America, Canada, Mexico, Panama, Costa Rica, Puerto Rica, Trinidad And Tobago, Jamaica, Bahamas, Denmark, Russia, Norway, Germany, France, Italy, United Kingdom, Spain, Ukraine, Netherland, Belgium, Greece, Czech Republic, Portugal, Hungary, Albania, Austria, Switzerland, Slovakia, Finland, Ireland, Croatia, Slovenia, Malta, Nigeria, Algeria, Angola, South Africa, Libya, Egypt, Sudan, Equatorial Guinea, The Republic Of Congo, Gabon, Europe, Africa, Asia, North America, South America, Middle East, Far East.etc
We Supply 304 Stainless Steel Plate Andhra Pradesh, Arunachal Pradesh, Assam, Bihar, Chhattisgarh, Goa, Gujarat, Haryana, Himachal Pradesh, Jammu and Kashmir, Jharkhand, Karnataka, Kerala, Madhya Pradesh, Maharashtra, Manipur, Meghalaya, Mizoram, Nagaland, Odisha, Punjab, Rajasthan, Sikkim, Tamil Nadu, Telangana, Tripura, Uttar Pradesh, Uttarakhand, West Bengal, Mumbai, Navi Mumbai, Pune, Nashik, Nagpur, Solapur, Kolhapur, Ambernath, Ahmednagar, Latur, Ahmadabad, Surat, Rajkot, Vadodara, Panaji, Madgaon, Chennai, Kolkata, Hyderabad, Bengaluru, Delhi, New Delhi, Ludhiana, Chandigarh, Raipur, Bhopal, Jamshedpur, Vishakhapatnam, Cochin, Ghaziabad, Noida, Gurugram, Bhillai, Durgapur, Vijaywada, Kanpur etc.
Savoy Piping Inc., is a well known worldwide Exporter of ASTM A240 304H Stainless Steel Plates, Savoy Piping Inc., is committed to provide each and every customer with the highest standard of customer service. We deals in ASTM A240 304H Stainless Steel Plate in India and Overseas, offering a wide range of ASTM A240 304H Stainless Steel Plate
