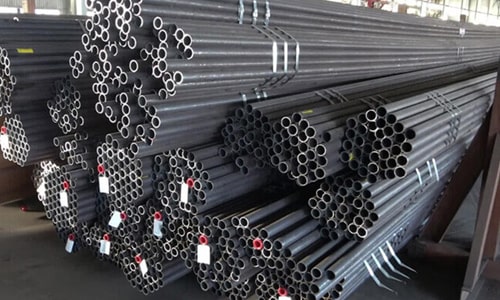

Savoy Piping Inc. we carry a full inventory of API 5L Pipe Carbon Steel Pipe products in a variety of sizes to meet the structural piping requirements for applications the water, petroleum, oil & gas and other industries. API 5L X52 PSL1 Welded Pipe Carbon Steel Pipe can be Structural in Nature or used in Fluid, Gas, Oil Transmission.
We Supply API 5L Welded Line Pipe in API 5L Grade B PSL 1 Welded Pipe, API 5L Grade B PSL 2 Welded Pipe, API 5L Grade X42 PSL 1 Welded Pipe, API 5L Grade X42 PSL 2 Welded Pipe, API 5L Grade X46 PSL 1 Welded Pipe, API 5L Grade X46 PSL 2 Welded Pipe, API 5L Grade X52 PSL 1 Welded Pipe, API 5L Grade X52 PSL 2 Welded Pipe, API 5L Grade X56 PSL 1 Welded Pipe, API 5L Grade X56 PSL 2 Welded Pipe, API 5L Grade X60 PSL 1 Welded Pipe, API 5L Grade X60 PSL 2 Welded Pipe, API 5L Grade X65 PSL 1 Welded Pipe, API 5L Grade X65 PSL 2 Welded Pipe, API 5L Grade X70 PSL 1 Welded Pipe, API 5L Grade X70 PSL 2 Welded Pipe . The grade indicates the testing methods required for a given application. It is critical that structural grades of Carbon Steel Pipe not be used for Pressure or Fluid applications.
Savoy Piping Inc. specializes in API 5L X52 PSL1 Welded Line Pipe with years of Experience in Manufacturing API 5L X52 PSL1 Carbon Steel Welded Pipe we offer high quality, lower cost but the best service. As a result to that our API 5L X52 PSL1 Welded LSAW Pipes export account today is in various countries like Iran, Iraq, Kuwait, Saudi Arabia, Oman, UAE, Singapore, Malaysia, Indonesia, South korea, Chile, Peru, Venezuela, Australia, Nigeria, Angola, Senegal, Mozambique, Algeria, Libya, Azerbaijan, Netherlands, Brazil, Norway, United Kingdom, Mexico, Canada etc.
These pipes are manufactured in two product specification levels known as PSL-1 and PSL-2. PSL-1 provides standard level quality as a linepipe. However, PSL-2 pipe has additional chemical composition, mechanical properties, notch toughness, and additional NDT requirements.
API 5L X52 Pipe Specification Covers Seamless and Welded Steel Line Pipe. It includes standard-weight and Extra-Strong threaded Line Pipe. It includes standard-weight and extra-strong threaded line pipe; and standard-weight plain-end, regular-weight plain-end, special plain-end, extra-strong plain-end, special plain-end, extra-strong plain-end pipe; as as well as bell and spigot and through-the-flow line(TFL) pipe The purpose of this specification is to provide standards for pipe suitable for use in conveying gas, water, and oil in both the oil and natural gas industries Grades covered by this specification are A25 ,A ,B (and the following "X" Grades) X42, X46, X52, X60, X65, & X70. The two digit number following the "X" indicates the Minimum Yield Strength (in 000's psi) of pipe produced to this grade.
The pipe grade for PSL 1 pipe is the same as the steel grade (identified by steel name) and must comply with Table 1. It consists of an alphanumeric or alphanumeric designation that indicates the strength level of the pipe and is associated with the chemical composition of the steel. Pipe quality for PSL 2 pipes must comply with Table 1 and consist of alphanumeric characters indicating the strength level of the pipe. Steel names (names of steel types) are related to the chemical composition of the steel and further include the following suffixes: One character (R, N, Q, or M) to indicate shipping terms
API 5L X52 PSL1 refers to a specific type of welded pipe that conforms to the requirements of the API 5L specification for Line Pipe. The "PSL1" designation indicates that the pipe is manufactured as per the first level of Product Specification Level requirements. API 5L X52 PSL1 welded pipes are widely used in the oil and gas industry for various applications.
API 5L X52 PSL1 welded pipes can be manufactured using different welding techniques, including:
Each type of welded pipe has its own advantages and is suitable for different applications based on factors such as pipe diameter, wall thickness, and project requirements.
API 5L X52 PSL1 welded pipes have specific properties and a composition that make them suitable for various applications in the oil and gas industry. Here are some key characteristics of API 5L X52 PSL1 welded pipes:
The purpose of this specification is to provide standards for pipes suitable for use in the transportation of gas, water and oil, both in the oil and natural gas industries. This specification applies to seamless and welded steel line pipe. This includes plain end Tubing, threaded end tubes, bell end tubes, as well as straight end tubes (TFL) and tubes with machined ends for use in specialized couplings. Plain end line pipes conforming to this specification are primarily intended for on-site assembly by circumferential welding, but the manufacturer is not responsible for on-site welding.
This specification establishes requirements for two product specification levels (PSL I and PSL 2). These two PSL specifications define different levels of standard technical requirements. PSL 2 sets mandatory requirements for carbon equivalent, notch toughness, ultimate yield strength, and ultimate tensile strength. These and other differences are summarized in Appendix 1. Requirements that apply only to PSL I or only to PSL 2 are marked like this. Requirements not specified for a specific PSL apply to both PSL I and PSL 2. Purchaser may add requirements to a PSL I or PSL 2 order as set forth in the Supplemental Requirements.
The grades covered by this specification (see notes) are standard grades A25, A, B, X42, X46, X52, X60, X65, & X70 and all intermediate grades (grades higher than X42, intermediate levels being up to two consecutive standard grades, as agreed between purchaser and manufacturer). PSL I pipe can be supplied in classes A25 to X70. PSL 2 pipe is available in classes B to X80.
Class II (CI II) steels are phosphorus treated and may have better thread properties than Class I (CI I) steels. Class II (CI II) has a higher phosphorus content than Class I (CI I), so it may be a little more difficult to bend. Pipes manufactured in grades X60 or higher may not be exchanged for pipes ordered in grades X52 or lower without the purchaser's consent.
The size used here is a dimensionless designation derived from the specified outside diameter measured in U.S. units, and provides a convenient way to refer to pipe sizes in text and tables (although the (not used for orders). Pipe sizes larger than 23/8 are expressed as whole numbers and fractions. Pipe sizes smaller than 23/8 are displayed to three decimal places. These sizes replace the terms ``size designation'' and ``nominal size designation'' used in previous editions of this specification. Users of this specification who are accustomed to specifying nominal sizes rather than 00 sizes are encouraged to familiarize themselves with the new size designations used in this specification, especially their use in Tables 4, 5, and 6A. Masu.
The size used here is a dimensionless designation derived from the specified outside diameter measured in U.S. units, and provides a convenient way to refer to pipe sizes in text and tables (although the (not used for orders). Pipe sizes larger than 23/8 are expressed as whole numbers and fractions. Pipe sizes smaller than 23/8 are displayed to three decimal places. These sizes replace the terms ``size designation'' and ``nominal size designation'' used in previous editions of this specification. Users of this specification who are accustomed to specifying nominal sizes rather than 00 sizes are encouraged to familiarize themselves with the new size designations used in this specification, especially their use in Tables 4, 5, and 6A. Masu.
API 5L X52 PSL1 Welded Pipe Specification | API 5L / ISO 3183 Hot Rolled. |
API 5L X52 PSL1 Welded Pipe Grades | API 5L Grade B PSL1, PSL 2 / API 5L X42 PSL1, PSL 2 / API 5L X46 PSL1, PSL 2 / API 5L X52 PSL1, PSL 2 / API 5L X56 PSL1, PSL 2 / API 5L X60 PSL1, PSL 2 / API 5L X65 PSL1, PSL 2 / X70 PSL1, PSL 2 / API 5L X70 PSL1 / PSL2 / API 5CT / API 5L X80 PSL1, PSL 2 / ISO 3183 L245 PSL1, PSL 2, ISO 3183 L290 PSL1, PSL 2, ISO 3183 L320 PSL1, PSL2, ISO 3183 L360 PSL1, PSL 2, ISO 3183 L390 PSL1, PSL 2, ISO 3183 L415 PSL1, PSL 2, ISO 3183 L450 PSL1, PSL 2, ISO 3183 L485 PSL1, PSL 2 |
API 5L X52 PSL1 Welded Pipe Type |
LSAW Pipes (Longitudinal Submerged Arc Welded Pipes ) HSAW Pipes (Helical Submerged Arc Welded Pipes ) DSAW Pipes (Double Submerged Arc Welded Pipes ) HSAW Pipes (Helical Submerged Arc Welded Pipes ) SSAW Pipes (Spiral Submerged Arc Welded Pipes ) |
API 5L X52 PSL1 Welded Pipe Outer Diameter Size | 12" NB to 150" NB (Nominal Bore Size) |
API 5L X52 PSL1 Welded Pipe Wall Thickness | Schedule 20 to Schedule XXS (Heavier On Request) Up to 250 mm Thickness |
API 5L X52 PSL1 Welded Pipe Length | 5 to 7 Meters, 09 to 13 Meters, Single Random Length, Double Random Length And Customize Size. |
API 5L X52 PSL1 Welded Pipe Ends | Plain Ends / Beveled Ends / Coupling |
API 5L X52 PSL1 Welded Pipe Delivery Conditions | As Rolled, Normalizing Rolled, Thermomechanical Rolled / Formed, Normalizing Formed, Normalized and Tempered / Quenched and Tempered - BR / N / Q /T |
API 5L X52 PSL1 Welded Pipe Coating | Epoxy Coating / Colour Paint Coating / 3LPE Coating. |
API 5L X52 PSL1 Welded Pipe Other Testing | NACE MR0175, NACE TM0177, SOUR SERVICE, NACE TM0284, PWHT, HIC TEST, SSC TEST, SWC, H2 SERVICE, IBR, IPS-M-PI190, IPS-M-PI-221 APPENDIX G Etc. |
API 5L X52 PSL1 Welded Pipe Dimension | All Pipes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM, ASME, API. |
API 5L X52 PSL1 Welded Pipe Value Added Services | Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Galavanizing / Heat Treatment |
API 5L X52 PSL1 Welded Pipe Packaging | Loose / Bundle / Wooden Pallet / Wooden box-a / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector |
API 5L X52 PSL1 Welded Pipe Shipment & Transportation | By Road - Truck / Train, By Sea - Break-bulk Conventional Vessel / FCL (Full Container Load) / LCL (Less Container Load) / 20 Feet Container / 40 Feet |
API 5L X52 PSL1 Welded Pipe Material Test Certificate | Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab./ Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC |
Mass Fraction, based upon heat and product analyses | ||||||||
Steel grade | C | Mn | P | S | V | NB | Ti | |
(Steel name) | max | max. | min. | max. | max. | max. | max. | max. |
L175 or A25 | 0.21 | 0.60 | 0.030 | 0.030 | - | |||
L175P or A25P | 0.21 | 0.60 | 0.045 | 0.800 | 0.030 | |||
L210 or A | 0.22 | 0.90 | - | 0.030 | 0.030 | - | - | - |
L245 or B | 0.26 | 1.20 | 0.030 | 0.030 | c,d | c,d | d | |
L290 or X42 | 0.26 | 1.30 | 0.030 | 0.030 | d | d | d | |
L320 or X46 | 0.26 | 1.40 | - | 0.030 | 0.030 | d | d | d |
L360 or X52 | 0.26 | 1.40 | 0.030 | 0.030 | d | d | d | |
L390 or X56 | 0.26 | 1.40 | 0.030 | 0.030 | d | d | d | |
L415 or X60 | 0.26 | 1.40 | - | 0.030 | 0.030 | f | f | f |
L450 or X65 | 0.26 | 1.45 | 0.030 | 0.030 | f | f | f | |
L485 or X70 | 0.26 | 1.65 | 0.030 | 0.030 | f | f | f |
Mass Fraction, based upon heat and product analyses | Carbon Equivalent % max | ||||||||||
Steel grade | C | Si | Mn | P | S | V | Nb | Ti | Other | Ce | CE |
L245 or Bm | 0.22 | 0.45 | 1.20 | 0.025 | 0.015 | 0.05 | 0.05 | 0.04 | e,l | 0.43 | 0.25 |
L290M or X42M | 0.22 | 0.45 | 1.30 | 0.025 | 0.015 | 0.05 | 0.05 | 0.04 | e,l | 0.43 | 0.25 |
L320M or X46M | 0.22 | 0.45 | 1.30 | 0.025 | 0.015 | 0.05 | 0.05 | 0.04 | e,l | 0.43 | 0.25 |
L360 or X52M | 0.22 | 0.45 | 1.40 | 0.025 | 0.015 | d | d | d | e,l | 0.43 | 0.25 |
L390 or X56M | 0.22 | 0.45 | 1.40 | 0.025 | 0.015 | d | d | d | ,l | 0.43 | 0.25 |
L415 or X60M | 0.12 | 0.45 | 1.60 | 0.025 | 0.015 | g | g | g | ,l | 0.43 | 0.25 |
L450 or X65M | 0.12 | 0.45 | 1.60 | 0.025 | 0.015 | g | g | g | ,l | 0.43 | 0.25 |
L485 or X70M | 0.12 | 0.45 | 1.60 | 0.025 | 0.015 | g | g | g | ,l | 0.43 | 0.25 |
The information here is summarized from ASTM Standards and API Specification 5L. Please see the specific standards for more information.
API Specification 5L x52 PSL 1 and PSL 2 Comparison information.
Grade Range | A25 Through X70 | Gr B Through X80 | Table 1 |
Size Range | 0.405 Through 80 | 4-2/1 Through 80 | Table 1 |
Type Of Pipe Ends | Plain-End, Threaded-end, Bevelled-End, Special Coupling Pipe | Plain-End | Table 1 |
Seam Welding | All Methods Continous Welding Limited to Grade A25 | All Methods Except Continous And Laser Welding | Table 1 |
Electric Welds: Welder Frequency | No Minimum | 100 Khz Minimum | 5.1.3.3.2 |
Heat Treatments of Electric Welds | Required For Grades > X42 | Required For All Grades (Gr B Through X80) | 5.1.3.3.1; J.3.3.2:6.2.7 |
Chemistry: Max C For Seamless Pipe | 0.28% For Grades > Gr B | 0.24% | tables 2a, 2b |
Chemistry: Max C For Welded Pipe | 0.26% For Grades > Gr B | 0.22% | tables 2a, 2b |
Chemistry: Max P | 0.03% | 0.03% | Tables 2a, 2b |
Chemistry: Max S | Only When Purchases Specifies Sr18 | 0.02% | Tables 2a, 2b |
Carbon Equivalent | None | Maximum Required for Each Grade | 4.2:4.3:6.1.3: Sr15.1 |
Yield Strength, Maximum | None | Maximum for Each Grade | tables 3a, 3b |
UTS, Maximum | None Required | Maximum For Each Grade | Tables 3a, 3b |
Fracture Toughness | Only When Purchaser Specifies Sr4 | Required For All Grades | 6.2.6; 9.3.5: 9.8.4; 9.10.7; |
Non-destructive Inspection of Seamless Pipes | Permitted | sr4 Mandatory | table 14 9.7.2.6 |
Repair By Welding of Pipe Body, Plate And Skelp | Permitted By Agreement | Prohibited | 5.3.2;9.7.6: B.1;b.2 |
Certification | Certificates When Specified Per Sr15 | Prohibited | 4.3;9.7.4.4;9.7.6;b.1.2;b.4 |
Traceability | Traceable Only Until All Tests are Passed Unless Sr15 Is Specified | Certificates (Sr15.1) Mandatory Traceable After Completion of Tests (Sr15.2) Mandatory |
12.1 5.6 |
Country Name | Latest Price/ Recent Updated Price 2017-18 |
API 5L X52 PSL1 Pipe Price in Indonesia | US $850 - 950 / Metric Ton |
API 5L X52 PSL1 Pipe Price in Malaysia | US $850 - 990 / Metric Ton |
API 5L X52 PSL1 Pipe Price in United Arab Emirates | AED 3121.84 - 3489.11/ Metric Ton |
API 5L X52 PSL1 Pipe Price in Singapore | US $850 - 995 / Metric Ton |
API 5L X52 PSL1 Pipe Price in Iran | US $850 - 950 / Metric Ton |
API 5L X52 PSL1 Pipe Price in South Korea | US $850 - 1350 / Metric Ton |
API 5L X52 PSL1 Pipe Price in Egypt | US $850 - 1150 / Metric Ton |
API 5L X52 PSL1 Pipe Price in Saudi Arabia | US $850 - 950 / Metric Ton |
API 5L X52 PSL1 Pipe Price in Kuwait | US $850 - 950 / Metric Ton |
API 5L X52 PSL1 Pipe Price in South Africa | US $850 - 1100 / Metric Ton |
API 5L X52 PSL1 Pipe Price in Qatar | US $850 - 950 / Metric Ton |
API 5L X52 PSL1 Pipe Price in Bahrain | BD 320-358 / Metric Ton |
API 5L X52 PSL1 Pipe Price in Oman | US $850 - 950 / Metric Ton |
API 5L X52 PSL1 Pipe Price in India | INR 56988-63692/ Metric Ton |
API 5L X52 PSL1 Pipe Price in Taiwan | US $850 - 950 / Metric Ton |
API 5L X52 PSL1 Pipe Price in Vietnam | US $850 - 1250 / Metric Ton |
API 5L X52 PSL1 Pipe Price in USA | US $850 - 1050 / Metric Ton |
CHEMICAL REQUIREMENTS for API 5L x52 PSL1 steel Pipe
API 5L Specifications Covers Seamless and Welded pipe suitable for use in conveying gas, water, oil, and other liquefied media. The attached requirements cover our offering of API 5L 45th Ed, PSL 1Seamless and Welded; API 5L 45th Ed PSL 2 Seamless & Welded; and API 5L 45th Ed PSL2 Welded only.
TENSILE PROPERTIES for Seamless and Welded API 5L x52 PSL1 steel Pipe
tensile properties data for Seamless and Welded API 5L steel pipe API 5L 45th Ed PSL 1, PSL 2.
TESTING REQUIREMENTS for Seamless and Welded API 5L x52 PSL1 steel Pipe
Our API 5L Welded Pipes hydrostatic and mechanical testing information for all sizes and grades covered by the specification.
Permissible Variations for Seamless and Welded API 5L x42 psl1 steel Pipe
Grade A, B, A25 | X42 through X80 | |
NPS 2-1/2 and smaller --Seamless and Welded, % | +20 -- 12.5 | +15 -- 12.5 |
NPS 3 --Seamless and Welded, % | +18 -- 12.5 | +15 -- 12.5 |
NPS 4 through 18 --Seamless and Welded, % | +15 -- 12.5 | +15 -- 12.5 |
NPS 20 and larger -- Welded, % | +17.5 -- 10.0 | +19.5 -- 8.0 |
NPS 20 and larger -- Seamless, % | +15.0 -- 12.5 | +17.5 -- 10.0 |
Marking Requirements
Paint-stenciled or die-stamped manufacturer’s name or mark, Spec 5L, size, weight per foot, grade, process of manufacture, type of steel, length (NPS 4 and larger only). Test pressure when higher than tabulated (NPS 2 and larger only).
Supplemental Annexes for API 5L x52 PSL1Seamless and Welded steel Pipe
API Specification 5L contains 15 Supplemental Annexes that address special conditions and/or additional requirements.
