Heat treatment of alloy steel may consist of normalizing and precipitation heat treatment or quenching and precipitation heat treatment. The tempering temperature shall be at least 1000 °F [540 °C]. The precipitation heat treatment of the alloy steel shall be in the range from 1000 to 1225 °F [540 to 665 °C].
ASTM A694 F56 is a specification established by ASTM International (formerly known as the American Society for Testing and Materials) that covers carbon and alloy steel forgings for pipe flanges, fittings, valves, and other high-temperature service Applications. The F56 designation specifically indicates a high-strength, low-alloy Steel GR suitable for use in pressure vessel service and other high-pressure Applications.

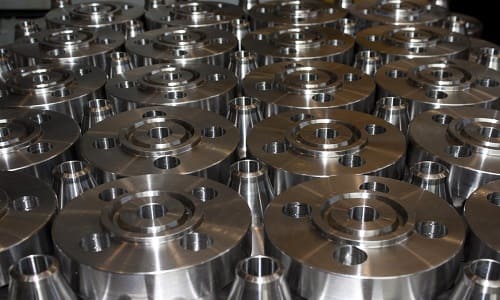

ASTM A694 F56 Flanges is a method of connecting pipes, valves, pumps and other equipment to form a piping system. It also provides easy access for cleaning, inspection or modificantion. Flanges are usually welded or screwed. Flanged joints are made by bolting together two flanges with a gasket between them to provide a seal.ASTM A694 F56 Flanges (Standard Specification for Carbon and Alloy Steel Forgings for Pipe Flanges,Steel Pipe Fittings, Valves, and Parts for High-Pressure Transmission Service)
ASTM A694 F56 Standard Specification for Carbon and Alloy Steel Forgings for Pipe Flanges, Steel Pipe Fittings, Valves, and Parts for High-Pressure Transmission Service. Several grades of material, based on minimum yield strength requirements, are covered Materials adhere to testing and tensile property requirements as well. ASTM A694 F56 Flanges is readily available for Applications in the Industrial and Transportation fields.
ASTM A694 F56 is a low-alloy steel grade that combines elements like carbon, manganese, phosphorus, sulfur, silicon, nickel, chromium, molybdenum, and vanadium to achieve its desired mechanical and chemical properties.
The F56 grade is designed to provide high-strength characteristics, making it suitable for Applications in high-pressure and high-temperature environments. The mechanical properties include specified minimum yield strength, tensile strength, and elongation.
ASTM A694 F56 forgings are typically subjected to heat treatment processes such as normalization and tempering to achieve the desired mechanical properties and enhance the material's overall performance.
ASTM A694 F56 flanges are commonly used in various industries, including oil and gas, petrochemical, power generation, and chemical processing. These Flanges are employed in piping systems where high-pressure and elevated-temperature conditions are encountered.
The specification covers flanges that are manufactured in accordance with specific dimensions and standards, ensuring interchangeability and compatibility with other Components in the piping system. Common flange types covered include Weld Neck Flange, slip-on, blind, lap joint, threaded, and socket weld.
ASTM A694 F56 flanges undergo various tests and inspections to ensure their quality and compliance with the specified requirements. These may include mechanical testing, chemical analysis, hardness testing, impact testing, non-destructive examination (NDE), and dimensional inspection.
Manufacturers of ASTM A694 F56 flanges are required to provide Certification that verifies compliance with the standard. This Certification may include details of the heat treatment, chemical composition, mechanical properties, and testing results.
It's crucial to refer to the latest edition of the ASTM A694 standard for the most up-to-date and detailed information regarding the F56 grade and its Applications. Additionally, users and manufacturers should adhere to industry codes and standards when specifying, designing, and using these flanges in various Applications.
Savoy Piping Inc. are recognized as the prominent Manufactu ASTM A694 F46 Flanges, ASTM A694 F52 Flanges, ASTM A694 F56 Flanges, ASTM A694 F60 Flanges, ASTM A694 F65 Flanges, ASTM A694 F70 Flanges. The offered ASTM A694 F56 Flanges is designed with utmost precision in conformity with the international quality standards.
| ASTM A694 F56 Flanges Specification | ASTM A694 / ASME SA694 |
| ASTM A694 F56 Flanges Manufacturing Process | Hot Forging / Rolling / Machining |
| ASTM A694 F56 Flanges Other Grades | ASTM A694 F42 / ASTM A694 F46 / ASTM A694 F52 / ASTM A694 F56 / ASTM A694 F60 / ASTM A694 F65 / ASTM A694 F70 / ASME SA694 F42 / ASME SA694 F46 / ASME SA694 F52 / ASME SA694 F56 / ASME SA694 F60 / ASME SA694 F65 / ASME SA694 F70 |
| ASTM A694 F56 Flanges Outer Diameter | 1/2" NB TO 64" NB |
| ASTM A694 F56 Flanges Pressure Class | Class 150#, Class 300#, Class 400#, Class 600#, Class 90#, Class 1500#, Class 2500# or As Per Custom Requirement PN 6, PN 10, PN 16, PN 25 and PN 40 etc |
| ASTM A694 F56 Flanges Schedule | Sch 10s TO Sch XXS or As Per Custom Requirement |
| ASTM A694 F56 Flanges Facing | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
| ASTM A694 F56 Flanges Dimension | ASME B16.5, ASME B16.47 SERIES A, ASME B16.47 SERIES B, ASME B16.36, BS10, EN1092-1:2013, MSS SP44, ASA, API-605, ISO 7005, ISO 1559-3, DIN 2631--2638, DIN 2573-2576, DIN 2527, DIn 2641-2642, DIN 2565-2566, DIN2502, AWWA, AS2129 TABLE C, D, E, F, J etc.. |
| ASTM A694 F56 Flanges Types | Welding Neck Flange, Slip On Flange, Socket Weld Flange, Lap Joint Flange, Threaded Flange, Blind Flange, Orifice Flanges, Plate Flange, Long Welding Neck Flanges, Weldoflange, Nipoflange, Expander Flange, Reducing Flange, WNRF Flange, SORF Flange, SWRF Flange, Custom Flange as per Drawing etc. |
| ASTM A694 F56 Flanges Other Testing | NACE MR0175, Ultrasounic Test, Charpy Impact Test, Macro, Grain Size, Hardness, HIC, SSC, Sour Service, A for annealed, N for normalized, NT for Normalized and Tempered, or QT for Quenched and Tempered, Carbon Equivalent etc. |
| ASTM A694 F56 Flanges Value Added Services | Rolling, Drill, Punch, CNC Machining, Sand Blasting, Shot Blasting, Heat Treatment, Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized |
| ASTM A694 F56 Flanges Packaging | Loose / Carrate / Wooden Pallet / Wooden Box / Plastic Cloth Wraps |
| ASTM A694 F56 Flanges Shipment & Transportation | By Road - Truck / Train Partial Load, Full Load, By Sea - Break-bulk Conventional Vessel /Pressure Vessel / FCL (Full Container Load) / LCL (Less Container Load) / 20 Feet Container / 40 Feet Container / 4 Feet Container / High Cube Container / Open Top Container, By Air - Freighter Civil Passenger and Cargo Planes |
| ASTM A694 F56 Flanges Material Test Certificate | Manufacturer Test Certificante As Per EN10204 3.1, 3.2 / Laboratory Test Certificante From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS, Bureau of Indian Standards BIS Approved etc. |
The chemical composition of grade ASTM A694 F56 Flanges is outlined in the following table
| Chemical Composition of ASTM A694, Heat Analysis, % | |
|---|---|
| Carbon [C] | ≤0.30 |
| Manganese [Mn] | ≤1.60 |
| Phosphorus [P] | ≤0.025 |
| Sulfur [S] | ≤0.025 |
| Silicon [Si] | 0.15-0.35 |
*1. Alloying elements including Cu, Ni, Cr, Mo, V, Nb and B shall be reported if any.
*2. No limits apply to above-mentioned elements of A694 forgings furnished in carbon or low alloy steel.
*3. ASTM A694 forgings furnished in alloy steel and Stainless Steel should be in conformance to ASTM A707 Grade L5.
*4. When required, the carbon equivalent CE shall be calculated as per C+Mn/6+(Cr+Mo+V)/5+(Cu+Ni)/15.
The mechanical properties of grade A694 F56 Flange are displayed in the following table.
| ASTM A694 Grade | Yield Strength min. | Tensile Strength min. | Elongation min. | ||
| MPa | ksi | MPa | ksi | % | |
| A694 F42 FLANGES | 29 | 42 | 415 | 65 | 20 |
| A694 F46 FLANGES | 315 | 46 | 415 | 60 | 20 |
| A694 F48 FLANGES | 330 | 48 | 425 | 62 | 20 |
| A694 F50 FLANGES | 34 | 50 | 440 | 64 | 20 |
| A694 F52 FLANGES | 360 | 52 | 45 | 66 | 20 |
| A694 F56 FLANGES | 385 | 56 | 470 | 68 | 20 |
| A694 F60 FLANGES | 415 | 60 | 515 | 75 | 20 |
| A694 F65 FLANGES | 40 | 65 | 530 | 77 | 20 |
| A694 F70 FLANGES | 485 | 70 | 565 | 82 | 18 |
The ASTM A694 F56 forgings can be furnished in Carbon Steel, low alloy steel or alloy steel. The steel shall be made by either open hearth, electric furnace, or basic oxygen process and it shall be fully deoxidized. Its forged flanges and Forged Sittings can be readily manufactured from ingots, blooms, billets, slabs, or bars. However, A694 F56 flanges shall not be machined directly from plate nor from solid bar stock since sufficient hot working(forging) is necessary to develop a wrought structure throughout the part.
All grades of ASTM A694 F56 shall be heat treated. Heat treatment of carbon steel and high-strength low-alloy steel may consist of normalizing, normalizing-and-tempering, or quenching-and tempering. Heat treatment of alloy steel may consist of normalizing and precipitation heat treatment or quenching and precipitation heat treatment. The tempering temperature shall be at least 1000 °F [540 °C]. The precipitation heat treatment of the alloy steel shall be in the range from 1000 to 1225 °F [540 to 665 °C].
Buy Now ASTM A694 F56 Flange at an Attactive Discounted Price, Order Above USD $ 25000 are Eligible of 2% Discount. We Offer Free Insurance and Best Shipping Rates. Our Prices are Always More Competitive and without any compromise in Quality of the Material.
ASTM A694 F56 Flange is Covered with Plastic Cloth and Packed in Wooden Box, Wooden Pallet and Wooden Fumigated Carrate. Our Packaging is Fully Waterproof and Safe for Transport with Proper Strips on Wooden Box, having Lifting Point.
