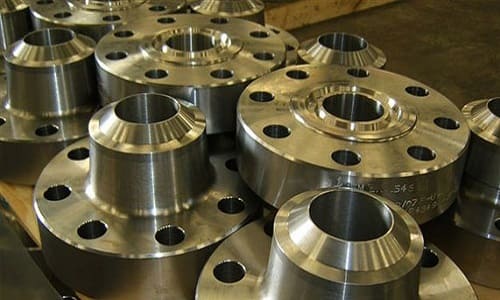

ASTM A182 F5 Flanges / ASME SA182 F5 Alloy Steel Flanges

ASTM A182 F5 Flanges, ASME SA182 F5 Flanges, A182 F5 Chrome Moly Falnges, A335 P5 Pipe Flanges, A182 F5 Flanges Class 1, 2, 3 Manufacturer in India.

Savoy Piping Inc., is an ISO 9001:2015, PED/27/EC and OHSAS 18001:2007 Approved Manufacturer of ASTM A182 F5 Flanges in Specification in Types Like ASTM A182 F5 Weldneck Flange, ASTM A182 F5 Blind Flange, ASTM A182 F5 Socketweld Flange, ASTM A182 F5 Slip On Flange, ASTM A182 F5 Threaded Flange, ASTM A182 F5 Laped Joint Flange, ASTM A182 F5 Screw Flange, ASTM A182 F5 Plate Flange, ASTM A182 F5 WNRF Flange, ASTM A182 F5 BLRF Flange, ASTM A182 F5 SWRF Flange, ASTM A182 F5 SORF Flange etc.

Manufacturer and Exporter of ASTM A182 F5 Flanges in Dimension accordance with ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092-1, DIN, etc. Certified with NACE, PWHT, HIC, SSC, Magnetic Particle Test, Dye Penereteration Test etc.


ASTM A182 F5 Flanges, ASTM A182 F5 , ASTM A182 F5 Weldneck Flange, A182 F5 Blind Flange, ASTM A182 F5 Socketweld Flange, ASTM A182 F5 Slip On Flange, ASTM A182 F5 Threaded Flange, ASTM A182 F5 Laped Joint Flange, ASTM A182 F5 Screw Flange, ASTM A182 F5 Plate Flange, ASTM A182 F5 WNRF Flange, ASTM A182 F5 FBLRF Flange, A182 F5 SWRF Flange, ASTM A182 F5 SORF Flanges

ASTM A182 F5 Flange / ASME SA182 F5 Alloy Steel Flange - Content

Here's an introduction to ASTM A182 F5 flanges:

ASTM A182 F5 alloy steel blind flanges are used to close pipelines with welded or bolted connections. Blind flanges are the only type that closes the connection. All other types of SA 182 Gr F5 steel flanges will continue to develop pipelines. There are welded flanges, seamless flanges, and forged flanges.

ASTM A182 F5 is a specification developed by ASTM International, formerly known as the American Society for Testing and Materials, to standardize the properties of alloy steel flanges used in High-Temperature and high-pressure applications. Specifically, ASTM A182 F5 is designed for flanges made from low alloy steel with added chromium and molybdenum, which enhances their corrosion resistance and provides excellent strength at elevated temperatures.

ASTM A182 is the specification of the flange and F5 is the alloy steel. The nominal diameter of ASTM A182 F5 flanges ranges from ½" to 36". According to ANSI, ASME and DIN standards the dimensions of alloy steel F5 flanges are variable. We are one of the leading ASME SA182 F5 Flange manufacturers in India - they are available in various sizes, shapes and finishes to meet our customers' unique requirements. For example, our Slip on Flanges and alloy steel F5 flanges are widely used in small and high pressure pipelines.

What Does Alloy Steel F5 Flanges means ?

F5 alloy steel flange is a type of flange designed for use in corrosive and acid . Applications include sulfuric and chloric acid media. ASTM A182 specification is for high pressure, high temperature applications. Flanges are available in sizes from ½ inch to 48 inch or 15NB to 1200NB.Flange SA182 Gr F5 is used according to different standards for different dimensions.

flange sa a182 f5 tends to have a fairly high electrical conductivity compared to other wrought alloy steels of the same grade. In addition, the sa a182 f5 material has a moderately high basic cost and a moderately high expressed energy. Most commonly, astm A182 F5 slip Flanges are used in conjunction with A335 pipes The alloy flange material, also known as chromium-molybdenum, has a higher metal content i.e. chromium and molybdenum than Carbon Steel.

1. Material Composition:

  • ASTM A182 F5 is a low alloy steel that contains chromium and molybdenum as alloying elements.
  • The chemical composition of ASTM A182 F5 ensures high corrosion resistance and improved strength under high-temperature conditions.

2. Temperature and Pressure Ratings:

  • These flanges are designed to withstand elevated temperatures and high-pressure environments.
  • The specific temperature and pressure ratings are determined based on the material and manufacturing process.

3. Alloy Properties:

  • Chromium provides corrosion resistance and enhances the material's ability to withstand oxidation.
  • Molybdenum contributes to the alloy's strength and helps maintain its structural integrity at higher temperatures.

4. Common Applications:

ASTM A182 F5 flanges find applications in industries where high-temperature and high-pressure conditions are prevalent, such as petrochemical, chemical processing, power generation, and oil and gas.

5. Manufacturing Standards:

The manufacturing of ASTM A182 F5 flanges must adhere to the standards outlined in the ASTM A182 specification, ensuring consistency in quality and performance.

6. Types of Flanges:

  • ASTM A182 F5 flanges are available in various types, including weld neck, slip-on, blind, socket weld, and threaded flanges, among others.
  • Each type is designed for specific applications and installation requirements.

7. Testing and Inspection:

  • ASTM A182 F5 flanges undergo rigorous testing and inspection procedures to ensure compliance with the specified standards.
  • Common tests include hydrostatic testing, non-destructive testing, and dimensional inspections.

8. Certification:

Manufacturers provide material test certificates (MTC) or inspection certificates to verify the quality and compliance of ASTM A182 F5 flanges with the specified standards.

ASTM A182 F5 flanges play a crucial role in industries requiring robust and corrosion-resistant Components for high-temperature and high-pressure environments. The alloy composition and adherence to stringent manufacturing standards make them reliable choices for critical applications.

Savoy Piping Inc. are recognized as the prominent Manufacturer, Exporter and Supplier of a broad assortment of ASTM A182 F5 Flange , ASTM A182 F9 Flanges, ASTM A182 F11 Flange, ASTM A182 F22 Flange, ASTM A182 F91 Flange etc.

ASTM A182F5 Flange Range

ASTM A182 F5 Flange Specification ASTM A182 / ASME SA182 Class 1, Class 2, Class 3
ASTM A182 F5 Flange Manufacturing Process Hot Forging / Rolling / Machining
ASTM A182 F5 Flange Other Grades ASTM A182 F5 Flange, ASTM A182 F9 Flanges, ASTM A182 F11 Flange, ASTM A182 F22 Flange, ASTM A182 F9, ASME SA182 F5 Flange, ASME SA182 F9 Flanges, ASME SA182 F11 Flange, ASME SA182 F22 Flange, ASME SA182 F91 Flange, A182 UNS K41545 Flange, A182 UNS K9094 Flange, A182 UNS K11572 Flange, A182 UNS K21590 Flange, A182 K91560 Flange
ASTM A182 F5 Flange Outer Diameter 1/2" NB TO 64" NB
ASTM A182 F5 Flange Pressure Class Class 150#, Class 300#, Class 400#, Class 600#, Class 900#, Class 1500#, Class 2500# or As Per Custom Requirement
PN 6, PN 10, PN 16, PN 25 and PN 40 etc
ASTM A182 F5 Flange Schedule Sch 10s TO Sch XXS or As Per Custom Requirement
ASTM A182 F5 Flange Facing Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
ASTM A182 F5 Flange Dimension ASME B16.5, ASME B16.47 SERIES A, ASME B16.47 SERIES B, ASME B16.36, BS10, EN1092-1:2013, MSS SP44, ASA, API-605, ISO 7005, ISO 15590-3, DIN 2631--2638, DIN 2573-2576, DIN 2527, DIn 2641-2642, DIN 2565-2566, DIN2502, AWWA, AS2129 TABLE C, D, E, F, J etc..
ASTM A182 F5 Flange Types Welding Neck Flange, Slip On Flange, Socket Weld Flange, Lap Joint Flange, Threaded Flange, Blind Flange, Orifice Flanges, Plate Flange, Long Welding Neck Flanges, Weld Neck Flanges, Nipoflange, Expander Flange, Reducing Flange, WNRF Flange, SORF Flange, SWRF Flange, Custom Flange as per Drawing etc.
ASTM A182 F5 Flange Other Testing NACE MR0175, Ultrasoung TEST, IGC TEST, Intergranular Corrrosion Test as per ASTM A262 Practice E, Charpy Impact Test, Macro, Grain Size, Hardness, HIC, SSC, Sour Service etc.
ASTM A182 F5 Flange Value Added Services Rolling, Drill, Punch, CNC Machining, Sand Blasting, Shot Blasting, Heat Treatment, Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized
ASTM A182 F5 Flange Packaging Loose / Carrate / Wooden Pallet / Wooden Box / Plastic Cloth Wraps
ASTM A182 F5 Flange Shipment & Transportation By Road - Truck / Train Partial Load, Full Load, By Sea - Break-bulk Conventional Vessel/Pressure Vessel / FCL (Full Container Load) / LCL (Less Container Load) / 20 Feet Container / 40 Feet Container / 45 Feet Container / High Cube Container / Open Top Container, By Air - Freighter Civil Passenger and Cargo Planes
ASTM A182 F5 Flange Material Test Certificate Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS, Bureau of Indian Standards BIS Approved ETC
Material Group Common Name Type UNS Forging Spec. Casting Spec. Equivalent DIN DIN W. No Application
Low Alloy Steel Moly Steel C-1/2Mo K12822 A182-F1 cl2 A217-WC1 15M03 1.5415 Up to 470ºC* (875ºF)
Alloy Steel Chrome Moly 1.1/4Cr-1/2Mo K11572 A182-F11 cl2 A217-WC6 13CRM044 1.7335 Up to 593ºC (1100ºF)
2.1/4Cr-1Mo K21590 A182-F22 cl3 A217-WC9 10CRM0910 1.7380 Up to 593ºC (1100ºF), HP steam
5Cr-1/2Mo K41545 A182-F5/F5a A217-C5 12CRMO195 1.7362 High temp refinery service
9Cr-1Mo K90941 A182-F9 A217-C12 X 12 CrMo 9 1 1.7386 High temp erosive refinery service
9Cr-1Mo-V A182-F91 A217-C12A X 10 CrMoVNb 9 1 1.4903 High pressure steam

ASTM A182F5 Flange Chemical Compostion and Properties

The chemical composition of grade ASTM A182 F5 Flange is outlined in the following table

Grade  UNS#  Composition
ASTM A182 F5  K41545 C .15 max, Mn .30 -.60, Cr   4.0 - 6.0, Mo .44 - .65
ASTM A182 F9 K90941 C  .15 max, Mn .30 -.60, Cr   8.0 - 10.0, Mo .90 - 1.10
ASTM A182 F11 K11572 C .10 - .20, Mn .30 -.80, Cr 1.0 - 1.5, Mo .44 - .65
ASTM A182 F22 K21590 C .05 - .15, Mn .30 -.60, Cr 2.0 - 2.5, Mo .87 - 1.13,
ASTM A182 F91 K91560 C .08 - .12, Mn .30 -.60, Cr 8.0 - 9.5, Mo .85 - 1.05, Cb .06 - .10, N .03 - .07, Al .04 max, V .18 - .25

ASTM A182 F5 Flanges Working Pressure Classs

(Max working pressure of carbon Stainless Steel flanges ASTM A182 - by Class, in bar).

TEMP. C 150# 300# 400# 600# 900# 1500# 2500#
-29 to 3815.9 41.4 55.2 82.7 124.1 206.8 344.7
5015.3 40 53.4 80 120.1 200.1 333.5
10013.3 34.8 46.4 69.6 104.4 173.9 289.9
15012 31.4 41.9 62.8 94.2 157 261.6
20011.2 29.2 38.9 58.3 87.5 145.8 243
25010.5 27.5 36.6 54.9 82.4 137.3 228.9
30010 26.1 34.8 52.1 78.2 130.3 217.2
3259.3 25.5 34 51 76.4 127.4 212.3
3508.4 25.1 33.4 50.1 75.2 125.4 208.9
3757.4 24.8 33 49.5 74.3 123.8 206.3
4006.5 24.3 32.4 48.6 72.9 121.5 202.5
4255.5 23.9 31.8 47.7 71.6 119.3 198.8
4504.6 23.4 31.2 46.8 70.2 117.1 195.1

ASTM A182 F5 Flanges Price

ASTM A182 F5 Flanges Manufacturer Name and Origin

ASTM A182 F5 Flanges is in Ready Stock and Ready to Deliver. High Quality, Lower Cost But Best Service in Flanges

ASTM A182 F5 Flange Application

  • Oil and Gas Industries
  • Food Processing Industries
  • Equipments
  • Pipeline
  • Power Industries
  • Ship Building Industries
  • Paper Industries
  • Cement Industries
  • Chemical Industries

ASTM A182 F5 Flanges Available Offer and Discounts

Buy Now ASTM A182 F5langes at an Attactive Discounted Price, Order Above USD $ 25000 are Eligible of 2% Discount. We Offer Free Insurance and Best Shipping Rates. Our Prices are Always More Competitive and without any compromise in Quality of the Material.

ASTM A182 F5 Flanges Types

  • ASTM A182 F5 Welding Neck Flange
  • ASTM A182 F5 Slip On Flange
  • ASTM A182 F5 Socket Weld Flange
  • ASTM A182 F5 Lap Joint Flange
  • ASTM A182 F5 Threaded Flange
  • ASTM A182 F5 Blind Flange
  • ASTM A182 F5 Orifice Flanges
  • ASTM A182 F5 Long Welding Neck Flanges
  • ASTM A182 F5 Weldoflange
  • ASTM A182 F5 Nipoflange
  • ASTM A182 F5 Expander Flange
  • ASTM A182 F5 Reducing Flange
  • ASTM A182 F5 WNRF Flange
  • ASTM A182 F5 SORF Flange
  • ASTM A182 F5 SWRF Flange
  • ASTM A182 F5 BLRF Flange

alloy steelASTM A182 F5 Flanges Packing Shipment

ASTM A182 F5 Flanges is Covered with Plastic Cloth and Packed in Wooden Box, Wooden Pallet and Wooden Fumigated Carrate. Our Packaging is Fully Waterproof and Safe for Transport with Proper Strips on Wooden Box, having Lifting Point.

ASTM A182 F5 Flanges Exported Countries

We Export ASTM A182 F5 Flanges and Weld Neck Flap joint flange langeto Saudi Arabia, Iran, Iraq, United Arab Emirates, Qatar, Bahrain, Oman, Kuwait, Turkey, Egypt, Yemen , Syria, Israel, Jordan, Cyprus, Singapore, Malaysia, Indonesia, Thailand, Vietnam, South Korea, Japan, Sri Lanka, Maldives, Bangladesh, Mayanmar, Taiwan, Cambodia, Argentina, Bolivia, Brazil, Chile, Venezuela, Colombia, Ecuador, Guyana, Paraguay, Uruguay, United States Of America, Canada, Mexico, Panama, Costa Rica, Puerto Rica, Trinidad And Tobago, Jamaica, Bahamas, Denmark, Russia, Norway, Germany, France, Italy, United Kingdom, Spain, Ukraine, Netherland, Belgium, Greece, Czech Republic, Portugal, Hungary, Albania, Austria, Switzerland, Slovakia, Finland, Ireland, Croatia, Slovenia, Malta, Nigeria, Algeria, Angola, South Africa, Libya, Egypt, Sudan, Equatorial Guinea, The Republic Of Congo, Gabon, Europe, Africa, Asia, North America, South America, Middle East, Far East.etc

ASTM A182 F5 Flanges Supplying in States and Cities

We Supply ASTM A182 F5 Flanges Andhra Pradesh, Arunachal Pradesh, Assam, Bihar, Chhattisgarh, Goa, Gujarat, Haryana, Himachal Pradesh, Jammu and Kashmir, Jharkhand, Karnataka, Kerala, Madhya Pradesh, Maharashtra, Manipur, Meghalaya, Mizoram, Nagaland, Odisha, Punjab, Rajasthan, Sikkim, Tamil Nadu, Telangana, Tripura, Uttar Pradesh, Uttarakhand, West Bengal, Mumbai, Navi Mumbai, Pune, Nashik, Nagpur, Solapur, Kolhapur, Ambernath, Ahmednagar, Latur, Ahmadabad, Surat, Rajkot, Vadodara, Panaji, Madgaon, Chennai, Kolkata, Hyderabad, Bengaluru, Delhi, New Delhi, Ludhiana, Chandigarh, Raipur, Bhopal, Jamshedpur, Vishakhapatnam, Cochin, Ghaziabad, Noida, Gurugram, Bhillai, Durgapur, Vijaywada, Kanpur etc.

Savoy Piping Inc. is a well known worldwide Exporter of ASTM A182 F5 Flanges is committed to provide each and every customer with the highest standard of customer service. We deals in ASTM A182 F5 Alloy Steel Flanges in India and Overseas, offering a wide range of ASTM A182 F5 Flanges
