ASTM A182 F5 Flanges

SA182 F5 · 5Cr-0.5Mo chrome-moly flanges

Savoy Piping Inc. supplies ASTM A182 F5 (5Cr-0.5Mo) chrome-moly flanges for high-temperature process and refinery service — typically matched to A335 P5 pipe.

Related: Alloy steel hub · WNRF · Blind · Flanges hub · F9.

What is this grade?

F5 is a 5% chromium, 0.5% molybdenum alloy steel forging grade used where sulfidation resistance and elevated-temperature strength matter. Confirm class/heat treatment on the PO.

Selection guidance

Related: F9 · F11 · F22 · F91.

What to put on the PO

Include A182 F5 (class if required), flange type and facing, size and pressure class, bore/schedule, heat-treatment condition, quantity, destination, and documentation (EN 10204 3.1 / 3.2, PMI, NACE, TPI). Email sales@savoypipinginc.com.

ASTM A182F5 Flange Range

ASTM A182 F5 Flange Specification	ASTM A182 / ASME SA182 Class 1, Class 2, Class 3
ASTM A182 F5 Flange Manufacturing Process	Hot Forging / Rolling / Machining
ASTM A182 F5 Flange Other Grades	ASTM A182 F5 Flange, ASTM A182 F9 Flanges, ASTM A182 F11 Flange, ASTM A182 F22 Flange, ASTM A182 F9, ASME SA182 F5 Flange, ASME SA182 F9 Flanges, ASME SA182 F11 Flange, ASME SA182 F22 Flange, ASME SA182 F91 Flange, A182 UNS K4154 Flange, A182 UNS K994 Flange, A182 UNS K11572 Flange, A182 UNS K2159 Flange, A182 K91560 Flange
ASTM A182 F5 Flange Outer Diameter	1/2" NB TO 64" NB
ASTM A182 F5 Flange Pressure Class	Class 150#, Class 300#, Class 400#, Class 600#, Class 900#, Class 1500#, Class 2500# or As Per Custom Requirement PN 6, PN 10, PN 16, PN 25 and PN 40 etc
ASTM A182 F5 Flange Schedule	Sch 10s TO Sch XXS or As Per Custom Requirement
ASTM A182 F5 Flange Facing	Flat Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
ASTM A182 F5 Flange Dimension	ASME B16.5, ASME B16.47 SERIES A, ASME B16.47 SERIES B, ASME B16.36, BS10, EN1092-1:2013, MSS SP44, ASA, API-605, ISO 7005, ISO 15590-3, DIN 2631--2638, DIN 2573-2576, DIN 2527, DIn 2641-2642, DIN 2565-2566, DIN2502, AWWA, AS2129 TABLE C, D, E, F, J etc..
ASTM A182 F5 Flange Types	Welding Neck Flange, Slip On Flange, Socket Weld Flange, Lap Joint Flange, Threaded Flange, Blind Flange, Orifice Flanges, Plate Flange, Long Welding Neck Flanges, Weldoflange, Nipoflange, Expander Flange, Reducing Flange, WNRF Flange, SORF Flange, SWRF Flange, Custom Flange as per Drawing etc.
ASTM A182 F5 Flange Other Testing	NACE MR0175, Ultrasoung TEST, IGC TEST, Intergranular Corrrosion Test as per ASTM A262 Practice E, Charpy Impact Test, Macro, Grain Size, Hardness, HIC, SSC, Sour Service etc.
ASTM A182 F5 Flange Value Added Services	Rolling, Drill, Punch, CNC Machining, Sand Blasting, Shot Blasting, Heat Treatment, Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized
ASTM A182 F5 Flange Packaging	Loose / Crate / Wooden Pallet / Wooden Box / Plastic Cloth Wraps
ASTM A182 F5 Flange Shipment & Transportation	By Road - Truck / Train Partial Load, Full Load, By Sea - Break-bulk Conventional Vessel / FCL (Full Container Load) / LCL (Less Container Load) / 20 Feet Container / 40 Feet Container / 4 Feet Container / High Cube Container / Open Top Container, By Air - Freighter Civil Passenger and Cargo Planes
ASTM A182 F5 Flange Material Test Certificate	Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS, Bureau of Indian Standards BIS Approved ETC

Material Group	Common Name	Type	UNS	Forging Spec.	Casting Spec. Equivalent	DIN	DIN W. No	Application
Low Alloy Steel	Moly Steel	C-1/2Mo	K12822	A182-F1 cl2	A217-WC1	15M03	1.5415	Up to 470ºC* (875ºF)
	Alloy Steel Chrome Moly	1.1/4Cr-1/2Mo	K11572	A182-F11 cl2	A217-WC6	13CRM044	1.7335	Up to 593ºC (1100ºF)
		2.1/4Cr-1Mo	K2159	A182-F22 cl3	A217-WC9	10CRM0910	1.7380	Up to 593ºC (1100ºF), HP steam
		5Cr-1/2Mo	K4154	A182-F5/F5a	A217-C5	12CRMO195	1.7362	High temp refinery service
		9Cr-1Mo	K9941	A182-F9	A217-C12	X 12 CrMo 9 1	1.7386	High temp erosive refinery service
		9Cr-1Mo-V		A182-F91	A217-C12A	X 10 CrMoVNb 9 1	1.493	High pressure steam

ASTM A182F5 Flange Chemical Composition and Properties

The chemical composition of grade ASTM A182 F5 Flange is outlined in the following table

Grade	UNS#	Composition
ASTM A182 F5	K4154	C .15 max, Mn .30 -.60, Cr 4.0 - 6.0, Mo .44 - .65
ASTM A182 F9	K9941	C .15 max, Mn .30 -.60, Cr 8.0 - 10.0, Mo .9 - 1.10
ASTM A182 F11	K11572	C .10 - .20, Mn .30 -.80, Cr 1.0 - 1.5, Mo .44 - .65
ASTM A182 F22	K2159	C .05 - .15, Mn .30 -.60, Cr 2.0 - 2.5, Mo .87 - 1.13,
ASTM A182 F91	K91560	C .08 - .12, Mn .30 -.60, Cr 8.0 - 9.5, Mo .85 - 1.05, Cb .06 - .10, N .03 - .07, Al .04 max, V .18 - .25

ASTM A182 F5 Flanges Working Pressure Classs

(Max working pressure of carbon stainless steel flanges ASTM A182 - by Class, in bar).

TEMP. C	150#	300#	400#	600#	90#	1500#	2500#
-29 to 38	15.9	41.4	55.2	82.7	124.1	206.8	344.7
50	15.3	40	53.4	80	120.1	200.1	333.5
100	13.3	34.8	46.4	69.6	104.4	173.9	289.9
150	12	31.4	41.9	62.8	94.2	157	261.6
200	11.2	29.2	38.9	58.3	87.5	14.8	243
250	10.5	27.5	36.6	54.9	82.4	137.3	228.9
300	10	26.1	34.8	52.1	78.2	130.3	217.2
325	9.3	25.5	34	51	76.4	127.4	212.3
350	8.4	25.1	33.4	50.1	75.2	125.4	208.9
375	7.4	24.8	33	49.5	74.3	123.8	206.3
400	6.5	24.3	32.4	48.6	72.9	121.5	202.5
425	5.5	23.9	31.8	47.7	71.6	119.3	198.8
40	4.6	23.4	31.2	46.8	70.2	117.1	195.1

ASTM A182 F5 Flanges Types

ASTM A182 F5 Welding Neck Flange

ASTM A182 F5 Slip On Flange

ASTM A182 F5 Socket Weld Flange

ASTM A182 F5 Lap Joint Flange

ASTM A182 F5 Threaded Flange

ASTM A182 F5 Blind Flange

ASTM A182 F5 Orifice Flanges

ASTM A182 F5 Long Welding Neck Flanges

ASTM A182 F5 Weldoflange

ASTM A182 F5 Nipoflange

ASTM A182 F5 Expander Flange

ASTM A182 F5 Reducing Flange

ASTM A182 F5 WNRF Flange

ASTM A182 F5 SORF Flange

ASTM A182 F5 SWRF Flange

ASTM A182 F5 BLRF Flange

Frequently asked questions

What are ASTM A182 F5 Flanges?

ASTM A182 F5 Flanges are forged pipe flanges ordered to the named ASTM forging grade for pressure piping service.

Which standards apply?

Material: ASTM A182 / ASME SA182. Dimensions: ASME B16.5 / B16.47 (or EN 1092-1 for metric packages).

What pipe grade pairs with F5 flanges?

Commonly ASTM A335 P5 chrome-moly pipe. Confirm the piping class and heat treatment notes.

What flange types are available?

Weld neck, slip-on, blind, socket weld, threaded, lap joint, long weld neck, reducing, spectacle blind and RTJ facings.

What belongs on the purchase order?

Grade/class, type and facing, size and pressure class, bore/schedule, quantity, destination, and MTC (EN 10204 3.1 / 3.2). Email sales@savoypipinginc.com.

ASTM A182 F5 Flanges Packing Shipment

ASTM A182 F5 Flanges is Covered with Plastic Cloth and Packed in Wooden Box, Wooden Pallet and Wooden Fumigated Crate. Our Packaging is Fully Waterproof and Safe for Transport with Proper Strips on Wooden Box, having Lifting Point.

ASTM A182 F5 Flanges Exported Countries

We Export ASTM A182 F5 Flanges to Saudi Arabia, Iran, Iraq, United Arab Emirates, Qatar, Bahrain, Oman, Kuwait, Turkey, Egypt, Yemen , Syria, Israel, Jordan, Cyprus, Singapore, Malaysia, Indonesia, Thailand, Vietnam, South Korea, Japan, Sri Lanka, Maldives, Bangladesh, Myanmar, Taiwan, Cambodia, Argentina, Bolivia, Brazil, Chile, Venezuela, Colombia, Ecuador, Guyana, Paraguay, Uruguay, United States Of America, Canada, Mexico, Panama, Costa Rica, Puerto Rico, Trinidad And Tobago, Jamaica, Bahamas, Denmark, Russia, Norway, Germany, France, Italy, United Kingdom, Spain, Ukraine, Netherlands, Belgium, Greece, Czech Republic, Portugal, Hungary, Albania, Austria, Switzerland, Slovakia, Finland, Ireland, Croatia, Slovenia, Malta, Nigeria, Algeria, Angola, South Africa, Libya, Egypt, Sudan, Equatorial Guinea, The Republic Of Congo, Gabon, Europe, Africa, Asia, North America, South America, Middle East, Far East.etc

ASTM A182 F5 Flanges Supplying in States and Cities

We Supply ASTM A182 F5 Flanges Andhra Pradesh, Arunachal Pradesh, Assam, Bihar, Chhattisgarh, Goa, Gujarat, Haryana, Himachal Pradesh, Jammu and Kashmir, Jharkhand, Karnataka, Kerala, Madhya Pradesh, Maharashtra, Manipur, Meghalaya, Mizoram, Nagaland, Odisha, Punjab, Rajasthan, Sikkim, Tamil Nadu, Telangana, Tripura, Uttar Pradesh, Uttarakhand, West Bengal, Mumbai, Navi Mumbai, Pune, Nashik, Nagpur, Solapur, Kolhapur, Ambernath, Ahmednagar, Latur, Ahmadabad, Surat, Rajkot, Vadodara, Panaji, Madgaon, Chennai, Kolkata, Hyderabad, Bengaluru, Delhi, New Delhi, Ludhiana, Chandigarh, Raipur, Bhopal, Jamshedpur, Vishakhapatnam, Cochin, Ghaziabad, Noida, Gurugram, Bhillai, Durgapur, Vijaywada, Kanpur etc.

Savoy Piping Inc., is a well known worldwide Exporter of ASTM A182 F5 Flanges, Savoy Piping Inc., is committed to provide each and every customer with the highest standard of customer service. We deal in ASTM A182 F5 Alloy Steel Flanges in India and Overseas, offering a wide range of ASTM A182 F5 Flanges

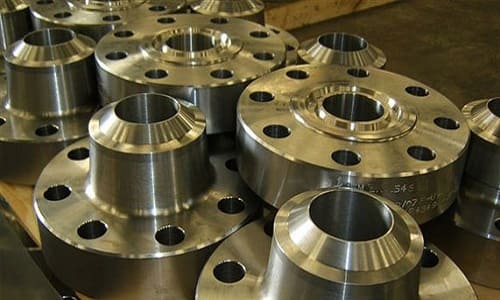

ASTM A182 F5 Flanges / ASME SA182 F5 Alloy Steel Flanges
