ASTM A182 F11 Flanges, ASME SA182 F11 Flanges, A182 F11 Chrome Moly Falnges, A335 P11 Pipe Flanges, A182 F11 Flanges Class 1, 2, 3 Manufacturer in India.
Savoy Piping Inc.is an ISO 9001:2015, PED/27/EC and OHSAS 18001:2007 Approved Manufacturer of ASTM A182 F11 Flanges in Specification in Types Like ASTM A182 F11 Weldneck Flange, ASTM A182 F11 Blind Flange, ASTM A182 F11 Socketweld Flange, ASTM A182 F11 Slip On Flange, ASTM A182 F11 Threaded Flange, ASTM A182 F11 Laped Joint Flange, ASTM A182 F11 Screw Flange, ASTM A182 F11 Plate Flange, ASTM A182 F11 WNRF Flange, ASTM A182 F11 BLRF Flange, ASTM A182 F11 SWRF Flange, ASTM A182 F11 SORF Flange etc.
Manufacturer and Exporter of ASTM A182 F11 Flanges in Dimension accordance with ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092-1, DIN, etc. Certified with NACE, PWHT, HIC, SSC, Magnetic Particle Test, Dye Penereteration Test etc.
ASTM A182 F11 Flange / ASME SA182 F11 Alloy Steel Flange - Content
- What is ASTM A182 F11 Flanges
- ASTM A182 F11 Flanges Available Range
- ASTM A182 F11 Flanges Chemical Composition
- ASTM A182 F11 Flanges Work Pressure
- ASTM A182 F11 Flanges Price
- ASTM A182 F11 Flanges Manufacturer, Mill Name and Origin
- ASTM A182 F11 Flanges Application and Usage
- ASTM A182 F11 Flanges Available Offer and Discount Best Price
- ASTM A182 F11 Flanges Types
- ASTM A182 F11 Flanges Packing and Shipment
- ASTM A182 F11 Flanges Export Countries
- ASTM A182 F11 Flanges Supplying States and Cities
Here's a brief introduction to ASTM A182 F11 flanges and ASME SA182 F11 flanges:
ASTM A182 F11 is a specification for forged or rolled alloy-steel pipe flanges, forged fittings, and valves and parts for high-temperature service. These Components are intended for use in pressure systems at elevated temperatures and high pressures. The associated standard for these flanges is ASME SA182, which is the American Society of Mechanical Engineers (ASME) code for pressure piping.
ASTM A182 is the Standard Specification for Forged Stainless Steel Pipe Flanges and Stainless Steel Forged Fittings. ASTM 182 is use in pressure systems, Included are flanges, fittings and similar parts to specified dimensions or to dimensional standards, such as the ASME specifications.ASTM A182 F11 Flanges is a method of connecting pipes, valves, pumps and other equipment to form a piping system. It also provides easy access for cleaning, inspection or modification. Flanges are usually welded or screwed. Flanged joints are made by bolting together two flanges with a gasket between them to provide a seal. Chromium-Molybdenum Alloy Steel or Chrome-Moly, CrMo is an alloy steel intended for High Temperature and high pressure services. Chrome-Moly is used in the power generation industry and the petro-chemical industry because of its tensile strength, corrosion resistance and high-temperature strength. Chrome-Moly has a better strength to Weight ratio than steel, which enables designers to use thinner wall pipe or smaller diameter tubing to reduce overall weight.

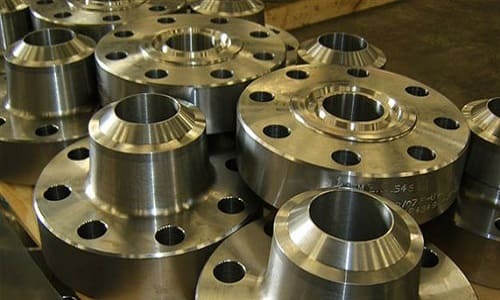

ASTM A182 F11 Flanges - ASME SA182 F11 Flanges
Material Composition:
- ASTM A182 F11 flanges are made from chromium-molybdenum alloy steel, specifically designed for high-temperature applications.
- The chemical composition includes chromium, molybdenum, and other alloying elements to enhance the flange's resistance to high temperatures and corrosion.
Temperature Range:
- These flanges are suitable for use in environments with elevated temperatures, making them ideal for applications in industries such as petrochemical, power generation, and refining.
Pressure Ratings:
- The flanges manufactured under ASTM A182 F11 are designed to withstand high-pressure conditions, meeting the requirements of various industrial processes.
Manufacturing Process:
- The flanges are produced through forging or rolling processes, ensuring a high level of strength and durability.
- Heat treatment is often applied to achieve the desired mechanical properties and improve the performance of the material at elevated temperatures.
Types of Flanges:
- ASTM A182 F11 includes various types of flanges, such as weld neck, slip-on, socket weld, threaded, blind, and lap joint flanges, among others.
- Each type serves a specific purpose in piping systems, offering versatility in design and installation.
Compliance and Certification:
- Flanges manufactured under ASTM A182 F11 must comply with the specified mechanical and chemical properties outlined in the standard.
- Manufacturers typically provide material test certificates to ensure the product's conformity to the required standards.
Applications:
- ASTM A182 F11 flanges are commonly used in high-temperature and high-pressure applications, including in power plants, chemical processing plants, and oil refineries.
Global Standards:
- ASTM A182 F11 and ASME SA182 F11 are recognized and adopted internationally, providing a standardized approach to the manufacturing and use of alloy-steel flanges.
ASTM A182 F11 flanges, governed by the ASME SA182 standard, offer reliable and durable solutions for applications requiring resistance to high temperatures and pressures. These flanges play a crucial role in ensuring the integrity and safety of piping systems in various industrial settings.
Savoy Piping Inc. are recognized as the prominent Manufacturer, Exporter and Supplier of a broad assortment of ASTM A182 F5 Flange, ASTM A182 F11 Flanges, ASTM A182 F11 Flange, ASTM A182 F22 Flange, ASTM A182 F91 Flange etc.
ASTM A182 F11 Flange Range
| ASTM A182 F11 Flange Specification | ASTM A182 / ASME SA182 Class 1, Class 2, Class 3 |
| ASTM A182 F11 Flange Manufacturing Process | Hot Forging / Rolling / Machining |
| ASTM A182 F11 Flange Other Grades | ASTM A182 F5 Flange, ASTM A182 F9 Flanges, ASTM A182 F11 Flange, ASTM A182 F22 Flange, ASTM A182 F9, ASME SA182 F5 Flange, ASME SA182 F9 Flanges, ASME SA182 F11 Flange, ASME SA182 F22 Flange, ASME SA182 F91 Flange, A182 UNS K41545 Flange, A182 UNS K9094 Flange, A182 UNS K11572 Flange, A182 UNS K21590 Flange, A182 K91560 Flange |
| ASTM A182 F11 Flange Outer Diameter | 1/2" NB TO 64" NB |
| ASTM A182 F11 Flange Pressure Class | Class 150#, Class 300#, Class 400#, Class 600#, Class 900#, Class 1500#, Class 2500# or As Per Custom Requirement PN 6, PN 10, PN 16, PN 25 and PN 40 etc |
| ASTM A182 F11 Flange Schedule | Sch 10s TO Sch XXS or As Per Custom Requirement |
| ASTM A182 F11 Flange Facing | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
| ASTM A182 F11 Flange Dimension | ASME B16.5, ASME B16.47 SERIES A, ASME B16.47 SERIES B, ASME B16.36, BS10, EN1092-1:2013, MSS SP44, ASA, API-605, ISO 7005, ISO 15590-3, DIN 2631--2638, DIN 2573-2576, DIN 2527, DIn 2641-2642, DIN 2565-2566, DIN2502, AWWA, AS2129 TABLE C, D, E, F, J etc.. |
| ASTM A182 F11 Flange Types | Welding Neck Flange, Slip On Flange, Socket Weld Flange, Lap Joint Flange, Threaded Flange, Blind Flange, Orifice Flanges, Plate Flange, Long Welding Neck Flanges, Weldoflange, Nipoflange, Expander Flange, Reducing Flange, WNRF Flange, SORF Flange, SWRF Flange, Custom Flange as per Drawing etc. |
| ASTM A182 F11 Flange Other Testing | NACE MR0175, Ultrasoung TEST, IGC TEST, Intergranular Corrrosion Test as per ASTM A262 Practice E, Charpy Impact Test, Macro, Grain Size, Hardness, HIC, SSC, Sour Service etc. |
| ASTM A182 F11 Flange Value Added Services | Rolling, Drill, Punch, CNC Machining, Sand Blasting, Shot Blasting, Heat Treatment, Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized |
| ASTM A182 F11 Flange Packaging | Loose / Carrate / Wooden Pallet / Wooden Box / Plastic Cloth Wraps |
| ASTM A182 F11 Flange Shipment & Transportation | By Road - Truck / Train Partial Load, Full Load, By Sea - Break-bulk Conventional Vessel / FCL (Full Container Load) / LCL (Less Container Load) / 20 Feet Container / 40 Feet Container / 45 Feet Container / High Cube Container / Open Top Container, By Air - Freighter Civil Passenger and Cargo Planes |
| ASTM A182 F11 Flange Material Test Certificate | Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS, Bureau of Indian Standards BIS Approved ETC |
| Material Group | Common Name | Type | UNS | Forging Spec. | Casting Spec. Equivalent | DIN | DIN W. No | Application |
|---|---|---|---|---|---|---|---|---|
| Low Alloy Steel | Moly Steel | C-1/2Mo | K12822 | A182-F1 cl2 | A217-WC1 | 15M03 | 1.5415 | Up to 470ºC* (875ºF) |
| Alloy Steel Chrome Moly | 1.1/4Cr-1/2Mo | K11572 | A182-F11 cl2 | A217-WC6 | 13CRM044 | 1.7335 | Up to 593ºC (1100ºF) | |
| 2.1/4Cr-1Mo | K21590 | A182-F22 cl3 | A217-WC9 | 10CRM0910 | 1.7380 | Up to 593ºC (1100ºF), HP steam | ||
| 5Cr-1/2Mo | K41545 | A182-F5/F5a | A217-C5 | 12CRMO195 | 1.7362 | High temp refinery service | ||
| 9Cr-1Mo | K90941 | A182-F9 | A217-C12 | X 12 CrMo 9 1 | 1.7386 | High temp erosive refinery service | ||
| 9Cr-1Mo-V | A182-F91 | A217-C12A | X 10 CrMoVNb 9 1 | 1.4903 | High pressure steam |
ASTM A182 F11 Flange Chemical Compostion and Properties
The chemical composition of grade ASTM A182 F11 Flange is outlined in the following table
| Grade | UNS# | Composition |
| ASTM A182 F5 | K41545 | C .15 max, Mn.30 -.60,Cr4.0 - 6.0,Mo .44 -.65 |
| ASTM A182 F9 | K90941 | C .15 max,Mn.30 -.60,Cr8.0 - 10.0,Mo.90 - 1.10 |
| ASTM A182 F11 | K11572 | C .10 - .20,Mn.30 -.80,Cr1.0 - 1.5, Mo.44 - .65 |
| ASTM A182 F22 | K21590 | C .05 - .15, Mn.30 -.60,Cr2.0 - 2.5,Mo.87 - 1.13, |
| ASTM A182 F91 | K91560 | C .08 - .12,Mn.30 -.60,Cr8.0 - 9.5,Mo.85 - 1.05, Cb.06 - .10, N.03 - .07,Al.04 max,V.18 - .25 |
ASTM A182 F11 Flanges Working Pressure Classs
(Max working pressure of Alloy Steel flanges ASTM A182 - by Class, in bar).
| TEMP. C | 150# | 300# | 400# | 600# | 900# | 1500# | 2500# |
|---|---|---|---|---|---|---|---|
| -29 to 38 | 15.9 | 41.4 | 55.2 | 82.7 | 124.1 | 206.8 | 344.7 |
| 50 | 15.3 | 40 | 53.4 | 80 | 120.1 | 200.1 | 333.5 |
| 100 | 13.3 | 34.8 | 46.4 | 69.6 | 104.4 | 173.9 | 289.9 |
| 150 | 12 | 31.4 | 41.9 | 62.8 | 94.2 | 157 | 261.6 |
| 200 | 11.2 | 29.2 | 38.9 | 58.3 | 87.5 | 145.8 | 243 |
| 250 | 10.5 | 27.5 | 36.6 | 54.9 | 82.4 | 137.3 | 228.9 |
| 300 | 10 | 26.1 | 34.8 | 52.1 | 78.2 | 130.3 | 217.2 |
| 325 | 9.3 | 25.5 | 34 | 51 | 76.4 | 127.4 | 212.3 |
| 350 | 8.4 | 25.1 | 33.4 | 50.1 | 75.2 | 125.4 | 208.9 |
| 375 | 7.4 | 24.8 | 33 | 49.5 | 74.3 | 123.8 | 206.3 |
| 400 | 6.5 | 24.3 | 32.4 | 48.6 | 72.9 | 121.5 | 202.5 |
| 425 | 5.5 | 23.9 | 31.8 | 47.7 | 71.6 | 119.3 | 198.8 |
| 450 | 4.6 | 23.4 | 31.2 | 46.8 | 70.2 | 117.1 | 195.1 |
ASTM A182 F11 Flanges Price
- USD $ 6500 Per Metric Ton - ASTM A182 F11 Alloy Steel Flanges (Weldneck, Socketweld, Blind, Slip-on etc)
- USD $ 6500 Per Metric Ton - ASTM A182 F11 Chrome Moly Flanges (Weldneck, Socketweld, Blind, Slip-on etc)
- USD $ 6500 Per Metric Ton - ASTM A182 F11 Weldneck Flange
- USD $ 6520 Per Metric Ton - ASTM A182 F11 Socketweld Flange
- USD $ 6450 Per Metric Ton - ASTM A182 F11 Blind Flange
- USD $ 6690 Per Metric Ton - ASTM A182 F11 Slip On Flange
- USD $ 7200 Per Metric Ton - ASTM A182 F11 Lap Joint Flange
- USD $ 6420 Per Metric Ton - ASTM A182 F11 Threaded Flange
- USD $ 6900 Per Metric Ton - ASTM A182 F11 Reducing Flange
ASTM A182 F11 Flanges Manufacturer Name and Origin
- ASTM A182 F11 Flanges - Savoy Piping Inc., Make, Origin - India
- ASTM A182 F11 Flanges - Ulma, Origin - Spain
- ASTM A182 F11 Flanges - Matalfar, Origin - Italy
- ASTM A182 F11 Flanges - Kofco, Origin - South Korea
- ASTM A182 F11 Flanges - Melesi, Origin - Italy
- ASTM A182 F11 Flanges - Viraj, Origin -India
- ASTM A182 F11 Flanges - Galpetri, Origin - Italy
- ASTM A182 F11 Flanges - Korea Flages, Origin - South Korea
- ASTM A182 F11 Flanges - N.K Forge, Origin - Japan
- ASTM A182 F11 Flanges - Ring Mill, Origin - Italy
- ASTM A182 F11 Flanges - WMASS, Origin - India
- ASTM A182 F11 Flanges - Korea Metal, Origin - South Korea
- ASTM A182 F11 Flanges - Cladtek, Origin - South Korea
- ASTM A182 F11 Flanges - CHW Forge Origin - India
ASTM A182 F11 Flanges is in Ready Stock and Ready to Deliver. High Quality, Lower Cost But Best Service in Flanges
ASTM A182 F11 Flange Application
- Oil and Gas Industries
- Food Processing Industries
- Equipments
- Pipeline
- Power Industries
- Ship Building Industries
- Paper Industries
- Cement Industries
- Chemical Industries
ASTM A182 F11 Flanges Available Offer and Discounts
Buy Now ASTM A182 F11 langes at an Attactive Discounted Price, Order Above USD $ 25000 are Eligible of 2% Discount. We Offer Free Insurance and Best Shipping Rates. Our Prices are Always More Competitive and without any compromise in Quality of the Material.
ASTM A182 F11 Flanges Types
- ASTM A182 F11 Welding Neck Flange
- ASTM A182 F11 Slip On Flange
- ASTM A182 F11 Socket Weld Flange
- ASTM A182 F11 Lap Joint Flange
- ASTM A182 F11 Threaded Flange
- ASTM A182 F11 Blind Flange
- ASTM A182 F11 Orifice Flanges
- ASTM A182 F11 Long Welding Neck Flanges
- ASTM A182 F11 Weldoflange
- ASTM A182 F11 Nipoflange
- ASTM A182 F11 Expander Flange
- ASTM A182 F11 Reducing Flange
- ASTM A182 F11 WNRF Flange
- ASTM A182 F11 SORF Flange
- ASTM A182 F11 SWRF Flange
- ASTM A182 F11 BLRF Flange
ASTM A182 F11 Flanges Packing Shipment
ASTM A182 F11 Flanges Weld Neck Flangeis Covered with Plastic Cloth and Packed in Wooden Box, Wooden Pallet and Wooden Fumigated Carrate. Our Packaging is Fully Waterproof and Safe for Transport with Proper Strips on Wooden Box, having Lifting Point.ASTM A182 F11 Flanges Exported Countries
We Export ASTM A182 F11 Flanges to Saudi Arabia, Iran, Iraq, United Arab Emirates, Qatar, Bahrain, Oman, Kuwait, Turkey, Egypt, Yemen , Syria, Israel, Jordan, Cyprus, Singapore, Malaysia, Indonesia, Thailand, Vietnam, South Korea, Japan, Sri Lanka, Maldives, Bangladesh, Mayanmar, Taiwan, Cambodia, Argentina, Bolivia, Brazil, Chile, Venezuela, Colombia, Ecuador, Guyana, Paraguay, Uruguay, United States Of America, Canada, Mexico, Panama, Costa Rica, Puerto Rica, Trinidad And Tobago, Jamaica, Bahamas, Denmark, Russia, Norway, Germany, France, Italy, United Kingdom, Spain, Ukraine, Netherland, Belgium, Greece, Czech Republic, Portugal, Hungary, Albania, Austria, Switzerland, Slovakia, Finland, Ireland, Croatia, Slovenia, Malta, Nigeria, Algeria, Angola, South Africa, Libya, Egypt, Sudan, Equatorial Guinea, The Republic Of Congo, Gabon, Europe, Africa, Asia, North America, South America, Middle East, Far East.etc
ASTM A182 F11 Flanges Supplying in States and Cities
We Supply ASTM A182 F11 Flanges Andhra Pradesh, Arunachal Pradesh, Assam, Bihar, Chhattisgarh, Goa, Gujarat, Haryana, Himachal Pradesh, Jammu and Kashmir, Jharkhand, Karnataka, Kerala, Madhya Pradesh, Maharashtra, Manipur, Meghalaya, Mizoram, Nagaland, Odisha, Punjab, Rajasthan, Sikkim, Tamil Nadu, Telangana, Tripura, Uttar Pradesh, Uttarakhand, West Bengal, Mumbai, Navi Mumbai, Pune, Nashik, Nagpur, Solapur, Kolhapur, Ambernath, Ahmednagar, Latur, Ahmadabad, Surat, Rajkot, Vadodara, Panaji, Madgaon, Chennai, Kolkata, Hyderabad, Bengaluru, Delhi, New Delhi, Ludhiana, Chandigarh, Raipur, Bhopal, Jamshedpur, Vishakhapatnam, Cochin, Ghaziabad, Noida, Gurugram, Bhillai, Durgapur, Vijaywada, Kanpur etc.
Savoy Piping Inc., is a well known worldwide Exporter of ASTM A182 F11 Flanges, Savoy Piping Inc., is committed to provide each and every customer with the highest standard of customer service. We deals in ASTM A182 F11 Alloy Steel Flanges in India and Overseas, offering a wide range of ASTM A182 F11 Flanges
