DIN EN 1092-1 Flanges, EN 1091-1 Type 02 Flanges, EN 1091-1 Type 11 Flanges, EN 1091-1 Type 12 Flanges, EN 1091-1 Type 13 Flanges Manufacturer in India.
Savoy Piping Inc., is an ISO 9001:2015, RINA, PED/27/EC and OHSAS 18001:2007 Approved Manufacturer of EN 1091-1 Weld-neck Flanges, EN 1091-1 Plate Flanges, EN 1091-1 Blind Flanges, EN 1091-1 Hubbed Slip-on Flanges, EN 1091-1 Hubbed Threaded Flanges, EN 1091-1 Long Weld Neck Flanges
Distributing and Exporting Worlwide EN 1092-01 Flanges in Material like Carbon Steel, Chrome Moly Alloy Steel, Stainless Steel, Duplex Steel, Super Duplex Steel etc. in Pressure Rating as PN6, PN10, PN16, PN25, PN40, PN63, PN100, with Facing like Flat Face, Raised Face, Tongue, Groove, Spigot, Recess, O-ring Spigot, O-ring Groove.
EN 1092-1 Flanges Definition
EN 1090-1 Flanges is a method of Connecting Pipes, Valves, Pumps and other Equipment to form a Piping System. It also provides Easy Access for Cleaning, Inspection or Modification. Flanges are usually Welded or Screwed. Flanged joints are made by Bolting Together two Flanges with a Gasket between them to Provide a Seal.
EN 1092-1 flanges are an essential component in piping systems, widely used across various industries. Understanding their design, classifications, and applications is crucial for professionals involved in engineering, construction, and maintenance projects.
EN 1090-1 Flanges European Standard Specification
EN 1092-1 flanges are commonly used in the oil and gas industry and mining. Made of steel, aluminum, copper alloy and iron. The type of material and flange dimensions will vary depending on the type of application in which it will be used.
(Flanges and ther joints - Crcular flanges for pipes, valves, fittings and accessories, PN designated - Part 1: Steel Flanges) EN 1092-1 Flanges European Standard for a single series of flanges specïfies requirements for circular steel flanges in PN designations PN 2.5 to PN 100 and nominal sizes from DN 10 to DN 4000. EN 1092-1 Flanges Standard specifies the Flange Types and their Facings, Dimensions, Tolerances, Threading, Bolt Sizes, Flange Jointing Face Surface Finish, Marking, Materials, Pressure / Temperature Ratings and Approximate Flange Masses.
Savoy Piping Inc. are recognized as the prominent Manufacturer, Exporter and Supplier of a broad assortment of EN 1092-1 Flanges in EN 1092-01 Type 01, EN 1092-01 Type 05, EN 1092-01 Type 11, EN 1092-01 Type 12, EN 1092-01 Type 13 etc.
Material of Composition EN 1092-01 Carbon Steel Flange, EN 1092-01 Alloy Steel Flanges, EN 1092-1 Stainless Steel Flanges, EN 1092-01 Duplex Steel Flanges, Loose FlangesEN 1092-01 Super Duplex Steel Flanges, with Pressure / Temperature Ratings of PN6,DIN Flanges PN10, PN16, PN25, PN40, PN63, PN100. Popular Type of EN 1092-01 Flanges in Compare to ASTM / ASME / DIN Standards are EN 1091-1 Weld-neck Flanges, EN 1091-1 Plate Flanges, EN 1091-1 Blind Flanges, EN 1091-1 Hubbed Slip-on Flanges, EN 1091-1 Hubbed Threaded Flanges, EN 1091-1 Long Weld Neck Flange etc
The offered EN 1092-1 Flanges is Designed with Utmost Precision in Conformity with the International European Quality Standards.Additionally, it aligns with other international flange standards like ANSI, ASME, and DIN, ensuring global compatibility.
EN 1092-01 Flanges Manufacturing Range
| EN 1092-01 Flanges Specification & Standard | DIN EN 1092-01 European Standard |
| EN 1092-01 Flanges Manufacturing Process | Hot Forging / Steel Casting / Hot Rolled / Plate Machining |
| IS 1092-01 Flanges Outer Diameter | DN 15 to DN 4000 |
| EN 1092-01 Flanges Pressure Class | PN 2.5, PN 6, PN 8, PN 10, PN 16, PN 25, PN 40, PN 63, PN 100 etc |
| IS 1092-01 Flanges Facing | Type Flat Face (FF), Type B Raised Face (RF), Type C Tongue, Type D Groove, Type E Spigot, Type F Recess, Type G O-ring Spigot, Type H O-ring Groove, |
| IS 1092-01 Flanges Types | Type 01 Plate Flange for welding, Type 02 Loose Plate Flange with Weld-on Plate Collar or for Lapped Pipe End, Type 04 Loose Plate Flange with weld-neck collar, Type 05 Blind Flange, Threaded FlangesType 11 Weld-neck Flange, Type 12 Hubbed Slip-on Flange for welding, Type 13 Hubbed Threaded, Type 34 Weld-neck collar Flange, Type 35 Weldring neck Flange, Type 36 Pressed collar with long neck Flange, Type 37 Pressed collar Flange,WNRF Flange, SORF Flange, BLRF Flange, Custom Flange as per Drawing etc. |
| EN 1092-01 Flanges Specication, Grades, Symbol, Material Number | EN Series - EN 10028-2, EN 10028-3, EN 10028-4, EN 10028-7, EN 10222-2, EN 10222-3, EN 10222-4, EN 10222-5, EN 10272, EN 10273 Material Name - 10CrMo9-10, 11MnNi5-3, 12CrMo9-10, 12Ni14, 13CrMo4-5, 13MnNi6-3, 15NiMn6, 16Mo3, G17CrMo5-5, G17CrMo9-10, G17Mn5, G20Mn5, G20Mo5, G9Ni10, G9Ni14, GP240GH, GP280GH, GX15CrMo5, GX23CrMoV12-1, GX2CrNi19-11, GX2CrNiMo19-11- 2, GX2CrNiMoCuN25-6-3-3, GX2CrNiMoN22-5- 3, GX2CrNiMoN26-7- 4, GX2NiCrMo28-20- 2, GX5CrNi19-10, GX5CrNiMo19-11- 2, GX5CrNiMoNb19- 11-2, GX5CrNiNb19-11, P235GH, P245GH, P250GH, P265GH, P275NH, P275NL1, P275NL2, P280GH, P285NH, P285QH, P295GH, P355N, P355NH, P355NL1, P355NL2, P355QH, P355QH1, X10CrMoVNb 9-1, X10CrMoVNb9-1, X12 Ni 5, X12Ni5, X16CrMo5-1+NT, X1CrNi25-21, X1CrNiMoCuN20- 18-7, X1CrNiMoCuN20-18-7, X1NiCrMoCu25- 20-5, X1NiCrMoCu31- 27-4, X1NiCrMoCuN25- 20-7, X1NiCrMoCuN25-20-7, X20CrMoV11- 1, X2CrNi18-9, X2CrNi19-11, X2CrNiMo17- 12-2, X2CrNiMo17- 12-3, X2CrNiMo17-12- 2, X2CrNiMo18- 14-3, X2CrNiMo18-14- 3, X2CrNiMoN1 7-11-2, X2CrNiMoN1 7-13-3,Spade X2CrNiMoN17- 11-2, X2CrNiMoN17- 13-3, X2CrNiMoN17- 13-5, X2CrNiMoN2 2-5-3, X2CrNiMoN2 5-7-4, X2CrNiMoN22- 5-3, X2CrNiMoN22-5- 3, X2CrNiMoN25- 7-4, X2CrNiMoN25-7- 4, X2CrNiN18- 10, X2CrNiN18-10, X2CrNiN23-4, X3CrNiMo17- 13-3, X3CrNiMo17-13- 3, X5CrNi18-10, X5CrNiMo17- 12-2, X5CrNiMo17-12- 2, X6CrNi18-10, X6CrNiMoNb17- 12-2, X6CrNiMoTi1 7-12-2, X6CrNiNb18- 10, X6CrNiNb18-10, X6CrNiTi18- 10, X6CrNiTi18-10, X6CrNiTiB18- 10, X6CrNiTiB18-10, X8Ni9 Material Number - 1.0345, 1.0352, 1.0425, 1.0426, 1.0460, 1.0477, 1.0478, 1.0481, 1.0487, 1.0488, 1.0562, 1.0565, 1.0566, 1.0571, 1.0619, 1.0625, 1.1104, 1.1106, 1.1131, 1.4301, 1.4306, 1.4307, 1.4308, 1.4309, 1.4311, 1.4335, 1.4362,1.4401, 1.4404, 1.4406, 1.4409, 1.4410, 1.4429, 1.4432, 1.4435, 1.4436, 1.4439, 1.4458, 1.4462, 1.4529, 1.4539, 1.4541, 1.4547, 1.4550, 1.4552, 1.4563, 1.4571, 1.4580, 1.4903, 1.4922, 1.4931, 1.4941, 1.4948, 1.5415, 1.5419, 1.5636, 1.5637, 1.5638, 1.5662, 1.5680, 1.6212, 1.6217, 1.6220, 1.6228, 1.7335, 1.7357, 1.7365, 1.7366, 1.7375, 1.7379, 1.7380, 1.7383, 1.8867 |
| EN 1092-01 Flanges Dimensions | EN 1092-1, ASME B16.5, ASME B16.47 SERIES A, ASME B16.47 SERIES B, ASME B16.36, BS10, EN1092-1:2013, MSS SP44, ASA, API-605, ISO 7005, ISO 15590-3, DIN 2631--2638, DIN 2573-2576, DIN 2527, DIN 2641-2642, DIN 2565-2566, DIN2502, AWWA, AS2129 TABLE C, D, E, F, J etc.. |
| EN 1092-01 Flanges Other Testing | NACE MR0175, Ultrasounic Test, Charpy Impact Test, Macro, Post-weld Heat Treatment (PWHT), Grain Size, Hardness, HIC, SSC, Sour Service, A for annealed, N for normalized, NT for Normalized and Tempered, or QT for Quenched and Tempered, Carbon Equivalent, Dye Penetrant Test etc. |
| EN 1092-01 Flanges Value Added Services | Rolling, Drill, Punch, CNC Machining, Sand Blasting, Shot Blasting, Heat Treatment, Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized |
| EN 1092-01 Flanges Packaging | Loose / Carrate / Wooden Pallet / Wooden Box / Plastic Cloth Wraps |
| EN 1092-01 Flanges Shipment & Transportation | By Road - Truck / Train Partial Load, Full Load, By Sea - Break-bulk Conventional Vessel / FCL (Full Container Load) / LCL (Less Container Load) / 20 Feet Container / 40 Feet Container / 45 Feet Container / High Cube Container / Open Top Container, By Air - Freighter Civil Passenger and Cargo Planes |
| EN 1092-01 Flanges Material Test Certificate | Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / RINA Approved / PED Approved / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS, Bureau of Indian Standards BIS Approved etc. |
EN 1092-1 Flanges Types
| Type No | Description | |
| EN 1092-1 TYPE 01 | Plate flange for welding |  |
| EN 1092-1 TYPE 02 | Loose plate flange with weld-on plate collar or for lapped pipe end |  |
| EN 1092-1 TYPE 04 | Loose plate flange with weld-neck collar |  |
| EN 1092-1 TYPE 05 | Blind flange |  |
| EN 1092-1 TYPE 11 | Weld-neck flange |  |
| EN 1092-1 TYPE 12 | Hubbed slip-on flange for welding |  |
| EN 1092-1 TYPE 13 | Hubbed threaded flange |  |
| EN 1092-1 TYPE 21 a | Integral flange |  |
| EN 1092-1 TYPE 32 b | Weld-on plate collar |  |
| EN 1092-1 TYPE 33 a, b | Lapped pipe end |  |
| EN 1092-1 TYPE 34 b | Weld-neck collar |  |
| EN 1092-1 TYPE 35 b | Weldring neck |  |

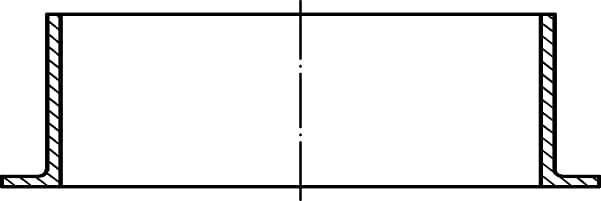

| EN 1092-1 TYPE 36 b | Pressed collar with long neck |  |
| EN 1092-1 TYPE 37 b | Pressed collar |  |
| NOTE: Type numbers have been made non-consecutive to permit possible future additions. a This is an integral part of a pressure equipment or a component. b Type numbers 32, 33, 35, 36 and 37 are for use with type 02 flanges and type number 34 for use with type 04 flanges. |
EN 1092-1 Flanges Facing Types
 EN 1092-1 Type 34 C Tongue |
 EN 1092-1 Type 34 C Tongue |
 EN 1092-1 Type 34 C Tongue |
 EN 1092-1 Type F Recess |
 EN 1092-1 Type F Recess |
 EN 1092-1 Type F Recess |
 EN 1092-1 Type G O Ring Groove |
 EN 1092-1 Type H O Ring Spigot |
NOTE 1 The transition from the edge of the raised face to the flange face can be by radius or chamfer for
types B, D, F and G only (see 5.7.1). | |||
Pressure Rating of EN 1092-1 Flanges
|
|
EN 1092-1 Flanges related to DIN Standard
| Correlation of the flange sizes & types covered by the older DIN Standards with those included in DIN EN 1092-1 | ||||
|---|---|---|---|---|
| DIN Standard | Flange type as in DIN EN 1092-1 | Item description | Size range (DN) as in DIN Standard | Size range (DN) as in DIN EN 1092-1 |
| *2512 | – | Tongue and groove | Up to PN 160 DN 4 to DN 1000 | Up to PN 100 DN 10 to DN 2000 |
| *2513 | – | Spigot and recess | DN 10 to DN 1000 | Up to PN 100 DN 10 to DN 2000 |
| *2514 | – | Spigot with groove and recess | DN 10 to DN 3000 | Up to PN 100 DN 10 to DN 2000 |
| 2527 | 05 | Blank flanges, PN 2,5 | Not specified. | DN 10 to DN 2000 |
| 05 | Blank flanges, PN 6 | DN 10 to DN 500 | DN 10 to DN 2000 | |
| 05 | Blank flanges, PN 10 | DN 10 to DN 500 | DN 10 to DN 1200 | |
| 05 | Blank flanges, PN 16 | DN 10 to DN 500 | DN 10 to DN 1200 | |
| 05 | Blank flanges, PN 25 | DN 10 to DN 500 | DN 10 to DN 600 | |
| 05 | Blank flanges, PN 40 | DN 10 to DN 500 | DN 10 to DN 600 | |
| 05 | Blank flanges, PN 64 (now PN 63) | DN 10 to DN 400 | DN 10 to DN 400 | |
| 05 | Blank flanges, PN 100 | DN 10 to DN 350 | DN 10 to DN 350 | |
| 2543 | – | Cast steel flanges, PN 16 | DN 10 to DN 2200 | DN 10 to DN 2000 |
| 2544 | – | Cast steel flanges, PN 25 | DN 10 to DN 2000 | DN 10 to DN 2000 |
| 2545 | – | Cast steel flanges, PN 40 | DN 10 to DN 1600 | DN 10 to DN 600 |
| 2546 | – | Cast steel flanges, PN 64 (now PN 63) | DN 10 to DN 1200 | DN 10 to DN 1200 |
| 2547 | – | Cast steel flanges, PN 100 | DN 125 to DN 700 | DN 10 to DN 500 |
| 2566 | 13 | Hubbed threaded flanges, PN 10 to PN 16 | DN 6 to DN 100 | DN 10 to DN 600 |
| 2573 | 01 | Plate flanges for brazing or welding, PN 6 | DN 10 to DN 500 | DN 10 to DN 600 |
| 2576 | 01 | Plate flanges for brazing or welding, PN 10 | DN 10 to DN 500 | DN 10 to DN 600 |
| 2630 | 11 | Weld-neck flanges, PN 1 and PN 2,5 | DN 10 to DN 4000 | DN 10 to DN 4000 |
| 2631 | 11 | Weld-neck flanges, PN 6 | DN 10 to DN 3600 | DN 10 to DN 3600 |
| 2632 | 11 | Weld-neck flanges, PN 10 | DN 10 to DN 3000 | DN 10 to DN 3000 |
| 2633 | 11 | Weld-neck flanges, PN 16 | DN 10 to DN 2000 | DN 10 to DN 2000 |
| 2634 | 11 | Weld-neck flanges, PN 25 | DN 10 to DN 1000 | DN 10 to DN 1000 |
| 2635 | 11 | Weld-neck flanges, PN 40 | DN 10 to DN 500 | DN 10 to DN 600 |
| 2636 | 11 | Weld-neck flanges, PN 64 (now PN 63) | DN 10 to DN 400 | DN 10 to DN 400 |
| 2637 | 11 | Weld-neck flanges, PN 100 | DN 10 to DN 350 | DN 10 to DN 350 |
| 2641 | 02, 33, 32 | Loose plate flanges, lapped pipe ends, weld-on plate collars, PN 6 | DN 10 to DN 1200 | DN 10 to DN 600 |
| 2642 | 02, 33, 32 | Loose plate flanges, lapped pipe ends, weld-on plate collars, PN 10 | DN 10 to DN 800 | DN 10 to DN 600 |
| 2655 | 02, 33, 32 | Loose plate flanges, weld-on plate collars, PN 25 | DN 10 to DN 500 | DN 10 to DN 600 |
| 2656 | 02, 33, 32 | Loose plate flanges, weld-on plate collars, PN 40 | DN 10 to DN 400 | DN 10 to DN 600 |
| 2673 | 04, 34 | Loose plate flanges with weld-neck collar, PN 10 | DN 10 to DN 1200 | DN 10 to DN 600 |
| *Flange feature only; not the call out for a complete flange | ||||
| DIN Plate Flanges (Slip On Flanges) | DIN Weld Neck Flanges | DIN Blind Flanges | DIN Threaded Flanges |
| DIN 2573 PN6 Flanges DIN 2576 PN10 Flanges DIN 2502 PN16 Flanges DIN 2503 PN25 Flanges DIN 2543 PN16 Flanges |
DIN 2631 PN6 Flanges DIN 2632 PN10 Flanges DIN 2633 PN16 Flanges DIN 2634 PN25 Flanges DIN 2635 PN40 Flanges |
DIN 2527 PN6 Flanges DIN 2527 PN10 Flanges DIN 2527 PN16 Flanges DIN 2527 PN25 Flanges DIN 2527 PN40 Flanges |
DIN 2565 PN6 Flanges DIN 2566 PN16 Flanges |
EN 1092-1 Equivalent Flanges to DIN
| Some Flange feature equivalents: DIN EN 1092 from DIN | |
|---|---|
| DIN EN 1092-1 | DIN |
| DIN EN 1092-1 Type B Raised Face | DIN 2526 Form C |
| DIN EN 1092-1 Type C Tongue | DIN 2512 Feder (Form F) |
| DIN EN 1092-1 Type D Groove | DIN 2512 Nut (Form N) |
| DIN EN 1092-1 Type E Spigot | DIN 2513 Vorsprung (Form V) |
| DIN EN 1092-1 Type F Recess | DIN 2513 Rücksprung (Form R) |
EN 1092- 1 Flanges is used in the Following Applications:-
We Cater to Diverse Industries, including Oil and Gas, where EN 1092-1 Flanges find Extensive Applications. Our EN 1092-1 Flanges Solutions meet Stringent Specifications and Industry Standards, Making them Ideal for High-Temperature Pipe Bending in Demanding Environments - Oil and Gas Equipments, Offshore Technology, Seawater Desalination Plants, Chemical Industry, Bridges, Storage Tanks, Medical Industry, Civil Engineering, Pressure Vessel, Reactor Tanks, and Heat Exchangers, Rotors, Impellers and Shafts, Power Plants, Petrochemical, Shipbuilding Industry, Pumping Stations, Nuclear Power.
EN 1092-1 Flange Packing Shipment
EN 1092-1 Flange is Covered with Plastic Cloth and Packed in Wooden Box, Wooden Pallet and Wooden Fumigated Carrate. Our Packaging is Fully Waterproof and Safe for Transport with Proper Strips on Wooden Box, having Lifting Point.
EN 1092-1 Flange Exported Countries
We Export EN 1092-1 Flanges to Saudi Arabia, Iran, Iraq, United Arab Emirates, Qatar, Bahrain, Oman, Kuwait, Turkey, Egypt, Yemen , Syria, Israel, Jordan, Cyprus, Singapore, Malaysia, Indonesia, Thailand, Vietnam, South Korea, Japan, Sri Lanka, Maldives, Bangladesh, Mayanmar, Taiwan, Cambodia, Argentina, Bolivia, Brazil, Chile, Venezuela, Colombia, Ecuador, Guyana, Paraguay, Uruguay, United States Of America, Canada, Mexico, Panama, Costa Rica, Puerto Rica, Trinidad And Tobago, Jamaica, Bahamas, Denmark, Russia, Norway, Germany, France, Italy, United Kingdom, Spain, Ukraine, Netherland, Belgium, Greece, Czech Republic, Portugal, Hungary, Albania, Austria, Switzerland, Slovakia, Finland, Ireland, Croatia, Slovenia, Malta, Nigeria, Algeria, Angola, South Africa, Libya, Egypt, Sudan, Equatorial Guinea, The Republic Of Congo, Gabon, Europe, Africa, Asia, North America, South America, Middle East, Far East.etc
EN 1092-1 Flange Supplying in States and Cities
We Supply EN 1092-1 Flanges Andhra Pradesh, Arunachal Pradesh, Assam, Bihar, Chhattisgarh, Goa, Gujarat, Haryana, Himachal Pradesh, Jammu and Kashmir, Jharkhand, Karnataka, Kerala, Madhya Pradesh, Maharashtra, Manipur, Meghalaya, Mizoram, Nagaland, Odisha, Punjab, Rajasthan, Sikkim, Tamil Nadu, Telangana, Tripura, Uttar Pradesh, Uttarakhand, West Bengal, Mumbai, Navi Mumbai, Pune, Nashik, Nagpur, Solapur, Kolhapur, Ambernath, Ahmednagar, Latur, Ahmadabad, Surat, Rajkot, Vadodara, Panaji, Madgaon, Chennai, Kolkata, Hyderabad, Bengaluru, Delhi, New Delhi, Ludhiana, Chandigarh, Raipur, Bhopal, Jamshedpur, Vishakhapatnam, Cochin, Ghaziabad, Noida, Gurugram, Bhillai, Durgapur, Vijaywada, Kanpur etc.
EN 1092-1 Flanges are vital Components in Piping Systems, offering Reliable and Standardized Connections for various Industries. This guide has provided an overview of the key aspects of EN 1092-1 Flanges, including their definition, Classification, Dimensions, Materials, Installation, and Applications. by following the Standard Guidelines and Considering Specific Project Requirements, Professionals can ensure safe and efficient piping systems that meet Industry Standards and Regulations
EN 1091-1 Long Weld Neck Flanges, EN 1091-1 Stainless Steel Flanges, EN 1091-1 Carbon Steel Flanges, EN 1091-1 Alloy Steel Flanges, Din en 1092 1 flange dimensions pdf, din en 1092-1 flange dimensions, En 1092 1 flange dimensions, en 1092-1 flange dimensions pdf, en 1092-1 flange specifications, en 1092-1 flange standard, en 1092-1 flange weight, en 1092-1 pdf free download, en 1092-1 pn16 flange dimensions, en 1092-1 standard pdf, en 1092-1:2018 pdf free download
