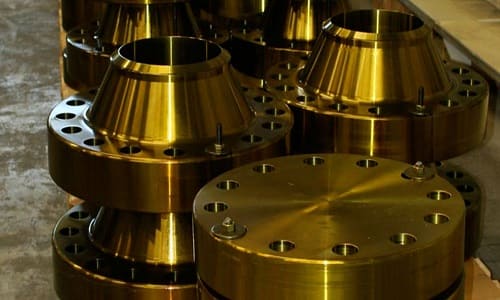

ISO 1559-3 L24 Flanges is a method of connecting pipes, valves, pumps and other equipment to form a piping system. It also provides easy access for cleaning, inspection or modificantion. Flanges are usually welded or screwed. Flanged joints are made by bolting together two flanges with a gasket between them to provide a seal.
ISO 1559-3 L24 Flanges Petroleum and natural gas industries Induction bends, fittings and flanges for pipeline transportation systems b Part 3: Flanges)
ISO 1559-3 L24 Flanges This part of ISO 1559 applies to weldneck and blind flanges (full face, raised face, and RTJ groove) as well as anchor, swivel-ring flanges and orifice flanges.
This part of ISO 1559 specifies the technical requirements for carbon steel and low-alloy steel forged flanges for use in pipeline transportation systems for the petroleum and natural gas industries as defined in ISO 13623.
This part of ISO 1559 designates those cantegories of flanges that meet the industry's need to match ISO 3183 pipe. These flanges are for normal and low-temperature service and include supplementary requirements where required for sour service.
ISO 1559-3 L24 Flanges is readily available for Applications in the Industrial and Transportation fields.
Savoy Piping Inc., are recognized as the prominent Manufacturer, Exporter and Supplier of a broad assortment of ISO 1559-3 L24 Flanges, ISO 1559-3 L29 Flanges, ISO 1559-3 L360 Flanges, ISO 1559-3 L415 Flanges, ISO 1559-3 L40 Flanges, ISO 1559-3 L485 Flanges. The offered ISO 1559-3 L24 Flanges is designed with utmost precision in conformity with the international quality standards.
| ISO 1559-3 L24 Flanges Specification | ISO 1559-3:2004 |
| ISO 1559-3 L24 Flanges Manufacturing Process | Hot Forging / Rolling / Machining |
| ISO 1559-3 L24 Flanges Other Grades | ISO 1559-3 L24 / ISO 1559-3 L29 / ISO 1559-3 L360 / ISO 1559-3 L415 / ISO 1559-3 L40 / ISO 1559-3 L485 |
| ISO 1559-3 L24 Flanges Outer Diameter | 1/2" NB TO 64" NB |
| ISO 1559-3 L24 Flanges Pressure Class | Class 150#, Class 300#, Class 400#, Class 600#, Class 90#, Class 1500#, Class 2500# or As Per Custom Requirement PN 6, PN 10, PN 16, PN 25 and PN 40 etc |
| ISO 1559-3 L24 Flanges Schedule | Sch 10s TO Sch XXS or As Per Custom Requirement |
| ISO 1559-3 L24 Flanges Facing | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
| ISO 1559-3 L24 Flanges Dimension | ASME B16.5, ASME B16.47 SERIES A, ASME B16.47 SERIES B, ASME B16.36, BS10, EN1092-1:2013, MSS SP44, ASA, API-605, ISO 7005, ISO 1559-3, DIN 2631--2638, DIN 2573-2576, DIN 2527, DIn 2641-2642, DIN 2565-2566, DIN2502, AWWA, AS2129 TABLE C, D, E, F, J etc.. |
| ISO 1559-3 L24 Flanges Types | Welding Neck Flange, Slip On Flange, Socket Weld Flange, Lap Joint Flange, Threaded Flange, Blind Flange, Orifice Flanges, Plate Flange, Long Welding Neck Flanges, Weldoflange, Nipoflange, Expander Flange, Reducing Flange, WNRF Flange, SORF Flange, SWRF Flange, Custom Flange as per Drawing etc. |
| ISO 1559-3 L24 Flanges Other Testing | NACE MR0175, Ultrasounic Test, Charpy Impact Test, Macro, Grain Size, Hardness, HIC, SSC, Sour Service, A for annealed, N for normalized, NT for Normalized and Tempered, or QT for Quenched and Tempered, Carbon Equivalent etc. |
| ISO 1559-3 L24 Flanges Value Added Services | Rolling, Drill, Punch, CNC Machining, Sand Blasting, Shot Blasting, Heat Treatment, Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized |
| ISO 1559-3 L24 Flanges Packaging | Loose / Carrate / Wooden Pallet / Wooden Box / Plastic Cloth Wraps |
| ISO 1559-3 L24 Flanges Shipment & Transportation | By Road - Truck / Train Partial Load, Full Load, By Sea - Break-bulk Conventional Vessel / FCL (Full Container Load) / LCL (Less Container Load) / 20 Feet Container / 40 Feet Container / 4 Feet Container / High Cube Container / Open Top Container, By Air - Freighter Civil Passenger and Cargo Planes |
| ISO 1559-3 L24 Flanges Material Test Certificate | Manufacturer Test Certificante As Per EN10204 3.1, 3.2 / Laboratory Test Certificante From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS, Bureau of Indian Standards BIS Approved etc. |
The chemical composition of grade ISO 1559-3 L24 Flanges is outlined in the following table
| Concentration in Alloys % mass fraction |
||||||
| Element | Non-sour service (designation N and L) |
Sour service (designation NS and LS) |
||||
| C | 0,20 | 0,18 | ||||
| Mn | 1,60 | 1,30 | ||||
| Si | 0,40 | 0,40 | ||||
| P | 0,025 | 0,025 | ||||
| S | 0,010 | 0,003 | ||||
| V | 0,10 | 0,10 | ||||
| Nb | 0,05 | 0,05 | ||||
| Ti | 0,04 | 0,04 | ||||
| Cr | 0,25 | 0,25 | ||||
| Mo | 0,10 | 0,10 | ||||
| Ni | 0,50 | 0,50 | ||||
| Cu | 0,35 | 0,35 | ||||
| Al | 0,06 | 0,05 | ||||
| N | 0,010 to 0,030 | 0,012 | ||||
| B | 0,001 | 0,0005 | ||||
| Ca | 0,006 | 0,006 | ||||
| CE | 0,4 | 0,43 | ||||
The mechanical properties of grade ISO 1559-3 L24 Flange are displayed in the following table.
| Steel Grade SMTS | SMTS | Elongation | Minimum average Charpy V-notch value | Minium Charpy V-notch Value |
| N/mm2 | N/mm2 | % | J | J |
| 24 | 415 | 22 | 27 | 22 |
| 29 | 415 | 21 | 30 | 24 |
| 360 | 460 | 20 | 36 | 30 |
| 415 | 520 | 18 | 42 | 35 |
| 40 | 535 | 18 | 4 | 38 |
| 485 | 570 | 18 | 50 | 40 |
| 555 | 625 | 18 | 56 | 4 |
| The tensile requirements for intermediate grades shall be obtained by interpolation between those specified for standard grades. | ||||
Buy Now ISO 1559-3 L24 Flange at an Attactive Discounted Price, Order Above USD $ 25000 are Eligible of 2% Discount. We Offer Free Insurance and Best Shipping Rates. Our Prices are Always More Competitive and without any compromise in Quality of the Material.
ISO 1559-3 L24 Flange is Covered with Plastic Cloth and Packed in Wooden Box, Wooden Pallet and Wooden Fumigated Carrate. Our Packaging is Fully Waterproof and Safe for Transport with Proper Strips on Wooden Box, having Lifting Point.
