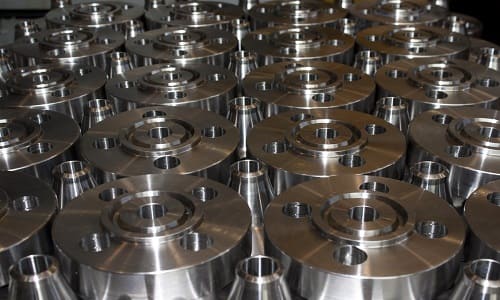

ASTM A694 F60 flanges are carbon steel and alloy steel flange specifications. ASTM A694 F60 is made from F60 duplex steel. F60 carbon steel flanges have high durability and tensile strength due to the manufacturing material. A694 F60 WNRF flanges have welded duplex steel necks with raised faces.
ASTM A694 F60 is a specification developed by ASTM International (formerly known as the American Society for Testing and Materials) that covers carbon and alloy steel forgings for pipe flanges, fittings, valves, and other high-pressure and high-temperature service Components. The F60 designation specifically refers to a certain grade within this specification.
ASTM A694 F60 Flanges is a method of connecting pipes, valves, pumps and other equipment to form a piping system. It also provides easy access for cleaning, inspection or modification. Flanges are usually welded or screwed. Flanged joints are made by bolting together two flanges with a gasket between them to provide a seal.ASTM A694 F60 Flanges (Standard Specification for Carbon and Alloy Steel Forgings for Pipe Flanges ,Steel Pipe , Fittings, Valves, and Parts for High-Pressure Transmission Service)
ASTM A694 F60 Standard Specification for Carbon and Alloy Steel Forgings for Pipe Flanges, Fittings, Valves, and Parts for High-Pressure Transmission Service. Several grades of material, based on minimum yield strength requirements, are covered Materials adhere to testing and tensile property requirements as well. ASTM A694 F60 Flanges is readily available for applications in the Industrial and Transportation fields.
The chemical composition of ASTM A694 F60 includes specific percentages of carbon, manganese, phosphorus, sulfur, silicon, nickel, chromium, molybdenum, vanadium, and other elements. This composition is carefully controlled to ensure the desired mechanical and corrosion-resistant properties.
F60 is known for its excellent mechanical properties, including high tensile strength, yield strength, and impact toughness. These properties make it suitable for demanding environments where reliability and performance are critical.
ASTM A694 F60 flanges are manufactured through a forging process. The steel is heated and shaped using controlled pressure to produce the desired shape and dimensions. The forging process enhances the mechanical properties of the material.
Heat treatment is a crucial step in the manufacturing process to achieve the required mechanical properties. The treatment may include normalization, quenching, and tempering to ensure the desired hardness and toughness of the material.
ASTM A694 F60 flanges conform to specific standards outlined in the ASTM A694 specification. Compliance with these standards ensures that the flanges meet the necessary requirements for high-pressure and high-temperature applications.
ASTM A694 F60 flanges are widely used in industries where elevated temperatures and pressures are encountered. Typical applications include piping systems in oil refineries, chemical plants, power plants, and other industrial facilities.
ASTM A694 F60 flanges are critical components designed for use in demanding environments where strength, corrosion resistance, and reliability are essential. Manufacturers and users alike adhere to the specifications outlined by ASTM International to ensure the proper performance of these components in various industrial applications.
Savoy Piping Inc. are recognized as the prominent Manufacturer, Exporter and Supplier of a broad assortment of ASTM A694 F42 Flanges, ASTM A694 F46 Flanges, ASTM A694 F52 Flanges, ASTM A694 F56 Flanges, ASTM A694 F60 Flanges, ASTM A694 F65 Flanges,ASTM A694 F70 Flanges. The offered ASTM A694 F60 Flanges is designed with utmost precision in conformity with the international quality standards.
ASTM A694 F60 Flanges Specification | ASTM A694 / ASME SA694 |
ASTM A694 F60 Flanges Manufacturing Process | Hot Forging / Rolling / Machining |
ASTM A694 F60 Flanges Other Grades | ASTM A694 F42 / ASTM A694 F46 / ASTM A694 F52 / ASTM A694 F56 / ASTM A694 F60 / ASTM A694 F65 / ASTM A694 F70 / ASME SA694 F42 / ASME SA694 F46 / ASME SA694 F52 / ASME SA694 F56 / ASME SA694 F60 / ASME SA694 F65 / ASME SA694 F70 |
ASTM A694 F60 Flanges Outer Diameter | 1/2" NB TO 64" NB |
ASTM A694 F60 Flanges Pressure Class | Class 150#, Class 300#, Class 400#, Class 600#, Class 900#, Class 1500#, Class 2500# or As Per Custom Requirement PN 6, PN 10, PN 16, PN 25 and PN 40 etc |
ASTM A694 F60 Flanges Schedule | Sch 10s TO Sch XXS or As Per Custom Requirement |
ASTM A694 F60 Flanges Facing | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
ASTM A694 F60 Flanges Dimension | ASME B16.5, ASME B16.47 SERIES A, ASME B16.47 SERIES B, ASME B16.36, BS10, EN1092-1:2013, MSS SP44, ASA, API-605, ISO 7005, ISO 15590-3, DIN 2631--2638, DIN 2573-2576, DIN 2527, DIn 2641-2642, DIN 2565-2566, DIN2502, AWWA, AS2129 TABLE C, D, E, F, J etc.. |
ASTM A694 F60 Flanges Types | Welding Neck Flange, Slip On Flange, Socket Weld Flange, Lap Joint Flange, Threaded Flange, Blind Flange, Orifice Flanges, Plate Flange, Long Welding Neck Flanges, Weldoflange, Nipoflange, Expander Flange, Reducing Flange, WNRF Flange, SORF Flange, SWRF Flange, Custom Flange as per Drawing etc. |
ASTM A694 F60 Flanges Other Testing | NACE MR0175, Ultrasounic Test, Charpy Impact Test, Macro, Grain Size, Hardness, HIC, SSC, Sour Service, A for annealed, N for normalized, NT for Normalized and Tempered, or QT for Quenched and Tempered, Carbon Equivalent etc. |
ASTM A694 F60 Flanges Value Added Services | Rolling, Drill, Punch, CNC Machining, Sand Blasting, Shot Blasting, Heat Treatment, Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized |
ASTM A694 F60 Flanges Packaging | Loose / Carrate / Wooden Pallet / Wooden Box / Plastic Cloth Wraps |
ASTM A694 F60 Flanges Shipment & Transportation | By Road - Truck / Train Partial Load, Full Load, By Sea - Break-bulk Conventional Vessel /Pressure Vessel / FCL (Full Container Load) / LCL (Less Container Load) / 20 Feet Container / 40 Feet Container / 45 Feet Container / High Cube Container / Open Top Container, By Air - Freighter Civil Passenger and Cargo Planes |
ASTM A694 F60 Flanges Material Test Certificate | Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS, Bureau of Indian Standards BIS Approved etc. |
The chemical composition of grade ASTM A694 F60 Flanges is outlined in the following table
Chemical Composition of ASTM A694, Heat Analysis, % | |
---|---|
Carbon [C] | ≤0.30 |
Manganese [Mn] | ≤1.60 |
Phosphorus [P] | ≤0.025 |
Sulfur [S] | ≤0.025 |
Silicon [Si] | 0.15-0.35 |
*1. Alloying elements including Cu, Ni, Cr, Mo, V, Nb and B shall be reported if any.
*2. No limits apply to above-mentioned elements of A694 forgings furnished in carbon or low alloy steel.
*3. ASTM A694 forgings furnished in alloy Steel GR should be in conformance to ASTM A707 Grade L5.
*4. When required, the carbon equivalent CE shall be calculated as per C+Mn/6+(Cr+Mo+V)/5+(Cu+Ni)/15.
The mechanical properties of grade A694 F60 Flange are displayed in the following table.
ASTM A694 Grade | Yield Strength min. | Tensile Strength min. | Elongation min. | ||
MPa | ksi | MPa | ksi | % | |
A694 F42 FLANGES | 290 | 42 | 415 | 65 | 20 |
A694 F46 FLANGES | 315 | 46 | 415 | 60 | 20 |
A694 F48 FLANGES | 330 | 48 | 425 | 62 | 20 |
A694 F50 FLANGES | 345 | 50 | 440 | 64 | 20 |
A694 F52 FLANGES | 360 | 52 | 455 | 66 | 20 |
A694 F56 FLANGES | 385 | 56 | 470 | 68 | 20 |
A694 F60 FLANGES | 415 | 60 | 515 | 75 | 20 |
A694 F65 FLANGES | 450 | 65 | 530 | 77 | 20 |
A694 F70 FLANGES | 485 | 70 | 565 | 82 | 18 |
The ASTM A694 F60 forgings can be furnished in Carbon Steel, low alloy steel or alloy steel. The steel shall be made by either open hearth, electric furnace, or basic oxygen process and it shall be fully deoxidized. Its forged flanges and Forged Fittings can be readily manufactured from ingots, blooms, billets, slabs, or bars. However, A694 F60 flanges shall not be machined directly from plate nor from solid bar stock since sufficient hot working(forging) is necessary to develop a wrought structure throughout the part.
All grades of ASTM A694 F60 shall be heat treated. Heat treatment of carbon steel and Stainless Steelhigh-strength low-alloy steel may consist of normalizing, normalizing-and-tempering, or quenching-and tempering. Heat Treatment of alloy steel may consist of normalizing and precipitation heat treatment or quenching and precipitation heat treatment. The tempering temperature shall be at least 1000 °F [540 °C]. The precipitation heat treatment of the alloy steel shall be in the range from 1000 to 1225 °F [540 to 665 °C].
Buy Now ASTM A694 F60 Flange at an Attactive Discounted Price, Order Above USD $ 25000 are Eligible of 2% Discount. We Offer Free Insurance and Best Shipping Rates. Our Prices are Always More Competitive and without any compromise in Quality of the Material.
ASTM A694 F60 Flange is Covered with Plastic Cloth and Packed in Wooden Box, Wooden Pallet and Wooden Fumigated Carrate. Our Packaging is Fully Waterproof and Safe for Transport with Proper Strips on Wooden Box, having Lifting Point.
We Export ASTM A694 F60 Flange Flanges to Saudi Arabia, Iran, Iraq, United Arab Emirates, Qatar, Bahrain, Oman, Kuwait, Turkey, Egypt, Yemen , Syria, Israel, Jordan, Cyprus, Singapore, Malaysia, Indonesia, Thailand, Vietnam, South Korea, Japan, Sri Lanka, Maldives, Bangladesh, Mayanmar, Taiwan, Cambodia, Argentina, Bolivia, Brazil, Chile, Venezuela, Colombia, Ecuador, Guyana, Paraguay, Uruguay, United States Of America, Canada, Mexico, Panama, Costa Rica, Puerto Rica, Trinidad And Tobago, Jamaica, Bahamas, Denmark, Russia, Norway, Germany, France, Italy, United Kingdom, Spain, Ukraine, Netherland, Belgium, Greece, Czech Republic, Portugal, Hungary, Albania, Austria, Switzerland, Slovakia, Finland, Ireland, Croatia, Slovenia, Malta, Nigeria, Algeria, Angola, South Africa, Libya, Egypt, Sudan, Equatorial Guinea, The Republic Of Congo, Gabon, Europe, Africa, Asia, North America, South America, Middle East, Far East.etc
We Supply ASTM A694 F60 Flanges Andhra Pradesh, Arunachal Pradesh, Assam, Bihar, Chhattisgarh, Goa, Gujarat, Haryana, Himachal Pradesh, Jammu and Kashmir, Jharkhand, Karnataka, Kerala, Madhya Pradesh, Maharashtra, Manipur, Meghalaya, Mizoram, Nagaland, Odisha, Punjab, Rajasthan, Sikkim, Tamil Nadu, Telangana, Tripura, Uttar Pradesh, Uttarakhand, West Bengal, Mumbai, Navi Mumbai, Pune, Nashik, Nagpur, Solapur, Kolhapur, Ambernath, Ahmednagar, Latur, Ahmadabad, Surat, Rajkot, Vadodara, Panaji, Madgaon, Chennai, Kolkata, Hyderabad, Bengaluru, Delhi, New Delhi, Ludhiana, Chandigarh, Raipur, Bhopal, Jamshedpur, Vishakhapatnam, Cochin, Ghaziabad, Noida, Gurugram, Bhillai, Durgapur, Vijaywada, Kanpur etc.
Savoy Piping Inc., is a well known worldwide Exporter of ASTM A694 F60 Flange, Savoy Piping Inc., is committed to provide each and every customer with the highest standard of customer service. We deals in ASTM A694 F60 Flanges in India and Overseas, offering a wide range of ASTM A694 F60 Flanges
