Savoy Piping Inc. manufactures and supplies socket weld boss in socket weld and threaded ends for small-bore process and utility piping. Dimensions and pressure classes follow ASME B16.11 (and MSS SP-79 / SP-83 / SP-95 where applicable), with ASTM/ASME forging grades for chemistry and mechanicals.
Related: Forged fittings hub · 90° Elbow · 45° Elbow · Tee · Cross.
A forged boss is a weld-on outlet with a socket or threaded bore for instrument, drain or branch connections. Bosses are machined for fillet welding onto pipe or fittings.
Specify bore size, end type inside the boss, class and the header size/material it will be welded to. Related forms: 90° Elbow · 45° Elbow · Tee · Cross · all forged fittings.
Include material grade / ASTM class, end type (socket weld or threaded), fitting form, size, pressure class, quantity, destination, and documentation (EN 10204 3.1 / 3.2, PMI, NACE, TPI). Email sales@savoypipinginc.com.
Same fitting form across stainless, carbon, alloy, duplex and nickel grades
| Socket weld Boss Specification | ASTM A182 / ASTM SA182, ASTM A105 / ASME SA105, ASTM A350 / ASME SA350, ASTM A694 / ASME SA694, ASTM B462 / ASME SB462 / ASTM B564 / ASME SB564, ASTM B151 / ASME SB151, ASTM B381 / ASME SB381 |
| Socket weld Boss Manufacturing Process | Forging / Socket / Threaded / Screwed |
| Socket weld Boss Available Other Grades | Stainless Steel - F304, F304L, F304H, F310s, F316, F316L, F317L, F321, F347, F94L, F410, F446 etc. Carbon Steel - 105N, LF2, F42, F46, F52, F56, F60, F65 etc. Alloy Steel - F5, F9, F11, F22, F91, 4140, Class 1, 2, 3 etc. Duplex and Super Duplex - F51, F53, F55, UNS S31803, UNS S32750, UNS S32760 etc. Inconel - 600, 601, 625, 718, UNS N06600, UNS N06601, UNS N06625, UNS N07718 etc. Incoloy - 800, 800H, 800HT, 825, UNS N08800, UNS N08810, UNS N08811, UNS N08825 etc. Monel - 400, UNS N04400 etc. Hastelloy - C276, C22, UNS N10276, UNS N06022 etc. Titanium - Grade 2, Grade 3, UNS R50400, UNS R56200 etc. Copper Nickel - 90/10, 70/30, UNS C71500, UNS C70600 etc. Other - Alloy 20, SMO 254, F44, 6 Moly, UNS N08020, UNS N031254 etc. |
| Socket weld Boss Outer Diameter | 1/8" NB TO 4" NB (DN6 to DN100) |
| Socket weld Boss Pressure Class | 2000 LBS, 3000 LBS, 6000 LBS ,9000 LBS or As Per Custom Requirement |
| Socket weld Boss Other Fittings Types | 45 Degree Elbow, 90 Degree Elbow, Lateral, Tee, Reducer Insert, Full Coupling, Half Coupling, Reducing Coupling, Cap, Union, Cross, Boss, Plug, Bushing etc. |
| Socket weld Boss Dimension | ASME 16.11 - Socket Welding and Threaded Forged Fittings MSS SP-79 - Socket Welding Reducer Inserts MSS SP-83 - Socket Weld Union MSS SP-95 - Swage(d) Nipples and Bull Plugs BS 3799 - Specification for Steel Pipe Fittings, Screwed and Socket-welding for the petroleum industry. |
| Socket weld Boss Other Testing | Tensile, Hardness Test, Chemical Analysis – Spectro Analysis, Positive Material Identification – PMI Testing, Flattening Test, Micro and Macro Test, Pitting Resistance Test, Flaring Test, Intergranular Corrosion (IGC) Test, NACE MR0175, Ultrasound Test, ASTM A262 Practice E, Charpy Impact Test, Grain Size, Dye Penetrant Test etc. |
| Socket weld Boss Packaging | Carrate / Wooden Pallet / Wooden box-a |
| Socket weld Boss Shipment & Transportation | By Road - Truck / Train Partial Load, Full Load, By Sea - Break-bulk Conventional Vessel / FCL (Full Container Load) / LCL (Less Container Load) / 20 Feet Container / 40 Feet Container / 4 Feet Container / High Cube Container / Open Top Container, By Air - Freighter Civil Passenger and Cargo Planes |
| Socket weld Boss Material Test Certificate | Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS, Bureau of Indian Standards BIS Approved ETC |
 |
|||||||

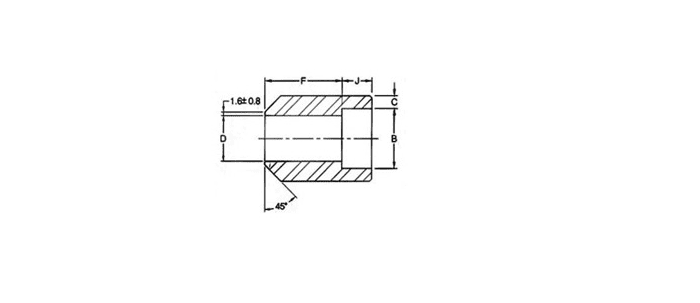

| NPS | Socket bore dia B | Bore diameter of fitting - D | socket wall thickness min - C | depth min J | End to End L | End to End L1 | End to End R |
| 1/4 | 14.10-14.60 | 8.5-10.0 | 3.3 | 10 | 26 | 62 | 25 |
| 3/8 | 17.55-18.05 | 11.8-13.3 | 3.5 | 10 | 27 | 66 | 30 |
| 1/2 | 21.70-22.20 | 15.0-16.6 | 4.1 | 10 | 32 | 82 | 30 |
| 3/4 | 27.05-27.55 | 20.2-21.7 | 4.25 | 13 | 37 | 88 | 30 |
| 1 | 33.80-34.30 | 25.9-27.4 | 5 | 13 | 41 | 96 | 40 |
| 1.25 | 42.55-43.05 | 34.3-35.8 | 5.3 | 13 | 43 | 105 | 4 |
| 1.5 | 48.65-49.15 | 40.1-41.7 | 5.55 | 13 | 4 | 112 | 55 |
| 2 | 61.10-61.60 | 51.7-53.5 | 6.05 | 16 | 57 | 125 | 55 |
Socket Weld Boss are forged small-bore fittings used to join pipe, valves and instrumentation with socket weld or threaded ends. Size, class and material must match the piping class.
Dimensional: ASME B16.11 for most forged fittings; MSS SP-79 (reducer inserts), MSS SP-83 (unions) and MSS SP-95 (swage nipples / bull plugs) where applicable. Material follows the ASTM forging spec that matches the pipe (A182, A105, A350, A694, B564, etc.).
Choose Boss when the piping class and installation method call for this connection form. Confirm end type, NPS and Class 3000 / 6000 / 9000 on the purchase order.
Material grade / ASTM class, end type (SW or threaded), fitting form, size, pressure class, quantity, destination, and documentation (EN 10204 3.1 or 3.2, PMI, NACE, TPI if required). Email sales@savoypipinginc.com.
We Export Boss Fittings to Saudi Arabia, Iran, Iraq, United Arab Emirates, Qatar, Bahrain, Oman, Kuwait, Turkey, Egypt, Yemen, Syria, Israel, Jordan, Cyprus, Singapore, Malaysia, Indonesia, Thailand, Vietnam, South Korea, Japan, Sri Lanka, Maldives, Bangladesh, Myanmar, Taiwan, Cambodia, Argentina, Bolivia, Brazil, Chile, Venezuela, Colombia, Ecuador, Guyana, Paraguay, Uruguay, United States Of America, Canada, Mexico, Panama, Costa Rica, Puerto Rico, Trinidad And Tobago, Jamaica, Bahamas, Denmark, Russia, Norway, Germany, France, Italy, United Kingdom, Spain, Ukraine, Netherlands, Belgium, Greece, Czech Republic, Portugal, Hungary, Albania, Austria, Switzerland, Slovakia, Finland, Ireland, Croatia, Slovenia, Malta, Nigeria, Algeria, Angola, South Africa, Libya, Egypt, Sudan, Equatorial Guinea, The Republic Of Congo, Gabon, Europe, Africa, Asia, North America, South America, Middle East, Far East.etc
We Supply Boss Andhra Pradesh, Arunachal Pradesh, Assam, Bihar, Chhattisgarh, Goa, Gujarat, Haryana, Himachal Pradesh, Jammu and Kashmir, Jharkhand, Karnataka, Kerala, Madhya Pradesh, Maharashtra, Manipur, Meghalaya, Mizoram, Nagaland, Odisha, Punjab, Rajasthan, Sikkim, Tamil Nadu, Telangana, Tripura, Uttar Pradesh, Uttarakhand, West Bengal, Mumbai, Navi Mumbai, Pune, Nashik, Nagpur, Solapur, Kolhapur, Ambernath, Ahmednagar, Latur, Ahmadabad, Surat, Rajkot, Vadodara, Panaji, Madgaon, Chennai, Kolkata, Hyderabad, Bengaluru, Delhi, New Delhi, Ludhiana, Chandigarh, Raipur, Bhopal, Jamshedpur, Vishakhapatnam, Cochin, Ghaziabad, Noida, Gurugram, Bhillai, Durgapur, Vijaywada, Kanpur etc.
Savoy Piping Inc., is a well known worldwide Exporter of Socket weld Boss, Savoy Piping Inc., is committed to provide each and every customer with the highest standard of customer service. We deal in Boss Socket weld in India and Overseas, offering a wide range of Boss Socket weld Fitting
