Forged Cap — ASME B16.11 / related MSS

Savoy Piping Inc. manufactures and supplies forged cap in socket weld and threaded ends for small-bore process and utility piping. Dimensions and pressure classes follow ASME B16.11 (and MSS SP-79 / SP-83 / SP-95 where applicable), with ASTM/ASME forging grades for chemistry and mechanicals.

Related: Forged fittings hub · 90° Elbow · 45° Elbow · Tee · Cross.

What are Cap?

A forged cap closes the end of a socket weld or threaded pipe. Caps provide a pressure-tight termination on small-bore ASME B16.11 systems.

Selection guidance

Match NPS, end type and class to the line. Caps are used for permanent ends, hydrotest blanks and future tie-in points when tagged for removal. Related forms: 90° Elbow · 45° Elbow · Tee · Cross · all forged fittings.

What to put on the PO

Include material grade / ASTM class, end type (socket weld or threaded), fitting form, size, pressure class, quantity, destination, and documentation (EN 10204 3.1 / 3.2, PMI, NACE, TPI). Email sales@savoypipinginc.com.

By material

Same fitting form across stainless, carbon, alloy, duplex and nickel grades

Cap Range

Cap Specification ASTM A182 / ASTM SA182, ASTM A105 / ASME SA105, ASTM A350 / ASME SA350, ASTM A694 / ASME SA694, ASTM B462 / ASME SB462 / ASTM B564 / ASME SB564, ASTM B151 / ASME SB151, ASTM B381 / ASME SB381
Cap Manufacturing Process Forging / Socket / Threaded / Screwed
Cap Available Other Grades Stainless Steel - F304, F304L, F304H, F310s, F316, F316L, F317L, F321, F347, F94L, F410, F446 etc.
Carbon Steel - 105N, LF2, F42, F46, F52, F56, F60, F65 etc.
Alloy Steel - F5, F9, F11, F22, F91, 4140, Class 1, 2, 3 etc.
Duplex and Super Duplex - F51, F53, F55, UNS S31803, UNS S32750, UNS S32760 etc.
Inconel - 600, 601, 625, 718, UNS N06600, UNS N06601, UNS N06625, UNS N07718 etc.
Incoloy - 800, 800H, 800HT, 825, UNS N08800, UNS N08810, UNS N08811, UNS N08825 etc.
Monel - 400, UNS N04400 etc.
Hastelloy - C276, C22, UNS N10276, UNS N06022 etc.
Titanium - Grade 2, Grade 3, UNS R50400, UNS R56200 etc.
Copper Nickel - 90/10, 70/30, UNS C71500, UNS C70600 etc.
Other - Alloy 20, SMO 254, F44, 6 Moly, UNS N08020, UNS N031254 etc.
Cap Outer Diameter 1/8" NB TO 4" NB (DN6 to DN100)
Cap Pressure Class 2000 LBS, 3000 LBS, 6000 LBS ,9000 LBS or As Per Custom Requirement
Cap Elbow Other Fittings Types 45 Degree Elbow, 90 Degree Elbow, Lateral, Tee, Reducer Insert, Full Coupling, Half Coupling, Reducing Coupling, Cap, Union, Cross, Boss, Plug, Bushing etc.
Cap Dimension ASME 16.11 - Socket Welding and Threaded Forged Fittings
MSS SP-79 - Socket Welding Reducer Inserts
MSS SP-83 - Socket Weld Union
MSS SP-95 - Swage(d) Nipples and Bull Plugs
BS 3799 - Specification for Steel Pipe Fittings, Screwed and Socket-welding for the petroleum industry.
Cap Other Testing Tensile, Hardness Test, Chemical Analysis – Spectro Analysis, Positive Material Identification – PMI Testing, Flattening Test, Micro and Macro Test, Pitting Resistance Test, Flaring Test, Intergranular Corrosion (IGC) Test, NACE MR0175, Ultrasound Test, ASTM A262 Practice E, Charpy Impact Test, Grain Size, Dye Penetrant Test etc.
Cap Packaging Carrate / Wooden Pallet / Wooden box-a
Cap Shipment & Transportation By Road - Truck / Train Partial Load, Full Load, By Sea - Break-bulk Conventional Vessel / FCL (Full Container Load) / LCL (Less Container Load) / 20 Feet Container / 40 Feet Container / 4 Feet Container / High Cube Container / Open Top Container, By Air - Freighter Civil Passenger and Cargo Planes
Cap Material Test Certificate Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS, Bureau of Indian Standards BIS Approved ETC

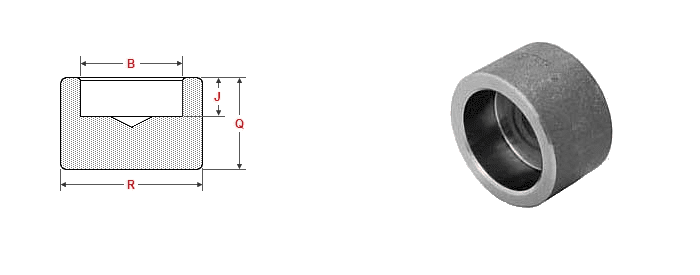

Dimensions of Socket Weld Cap ASME B16.11 - NPS 1/2 to 4 - Class 3000

Cap, Socket weld Cap, Forged Cap, Threaded Cap, Screwed Cap
NPS Socket Bore Depth Socket Length Cap Diameter Cap
B J Q R
1/2 21.95
21.70		 10 19 32
3/4 27.30
27.05		 13 23 38
1 34.05
33.80		 13 26 4
1.1/4 42.80
42.55		 13 28 55
1.1/2 48.9
48.65		 13 30 65
2 61.35
61.10		 16 36 75
2.1/2 74.20
73.80		 16 38 92
3 9.15
89.80		 16 42 110
4 115.80
115.4		 19 48 140

Dimensions of Socket Weld Cap ASME B16.11 - NPS 1/2 to 2 - Class 6000

Cap, Socket weld Cap, Forged Cap, Threaded Cap, Screwed Cap
NPS Socket Bore Depth Socket Length Cap Diameter Cap
B J Q R
1/2 21.95
21.70		 10 22 34
3/4 27.30
27.05		 13 26 41
1 34.05
33.80		 13 28 50
1.1/4 42.80
42.55		 13 30 58
1.1/2 48.9
48.65		 13 32 66.5
2 61.35
61.10		 16 38 85

Genral Notes

  • Dimensions are in millimeters unless otherwise indicated.
  • Socket Bore(B) - Maximum and Minimum dimensions.

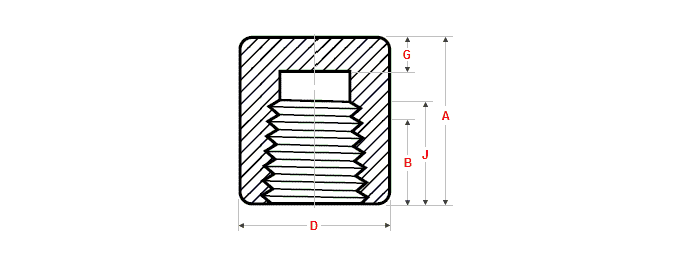

Dimensions of Threaded Cap ASME B16.11 - NPS 1/2 to 4 - Class 2000

Cap, Socket weld Cap, Forged Cap, Threaded Cap, Screwed Cap
NPS End to End Outside Diameter Minimum End Wall Thickness Min Length of Thread
A D G B J
1/2 32 28 6.4 10.9 13.6
3/4 37 35. 6.4 12.7 13.9
1 41 44 9.7 14.7 17.3
1.1/4 44 57 9.7 17 18
1.1/2 44 64 11.2 17.8 18.4
2 48 76 12.7 19 19.2
2.1/2 60 92 15.7 23.6 28.9
3 65 108 19 25.9 30.5
4 68 140 22.4 27.7 33

Dimensions of Threaded Cap ASME B16.11 - NPS 1/2 to 2 - Class 6000

Cap, Socket weld Cap, Forged Cap, Threaded Cap, Screwed Cap
NPS End to End Outside Diameter Minimum End Wall Thickness Min Length of Thread
A D G B J
1/2 33 38 7.9 10.9 13.6
3/4 38 44 7.9 12.7 13.9
1 43 57 11.2 14.7 17.3
1.1/4 46 64 11.2 17 18
1.1/2 48 76 12.7 17.8 18.4
2 51 92 15.7 19 19.2
2.1/2 64 108 19 23.6 28.9
3 68 127 22.4 25.9 30.5
4 75 159 28.4 27.7 33

General notes:

  • Dimensions are in millimeters unless otherwise indicated.
  • Dimension (B) is minimum length of perfect thread.

Typical applications

  • Line end closures
  • Hydrotest and temporary blanks
  • Instrument dead-legs
  • Utility terminations

Frequently asked questions

What are Cap?

Forged Cap are forged small-bore fittings used to join pipe, valves and instrumentation with socket weld or threaded ends. Size, class and material must match the piping class.

Which standards apply?

Dimensional: ASME B16.11 for most forged fittings; MSS SP-79 (reducer inserts), MSS SP-83 (unions) and MSS SP-95 (swage nipples / bull plugs) where applicable. Material follows the ASTM forging spec that matches the pipe (A182, A105, A350, A694, B564, etc.).

When should I choose Cap?

Choose Cap when the piping class and installation method call for this connection form. Confirm end type, NPS and Class 3000 / 6000 / 9000 on the purchase order.

What should be on the purchase order?

Material grade / ASTM class, end type (SW or threaded), fitting form, size, pressure class, quantity, destination, and documentation (EN 10204 3.1 or 3.2, PMI, NACE, TPI if required). Email sales@savoypipinginc.com.
