Reducer Insert Socket weld, Socket weld Reducer Insert, Reducing Insert, Manufacturer and Suppliers in India.
Reducer Insert as per ANSI B16.11 in Stainless Steel, Carbon Steel, Alloys Steel, Duplex Steel, Inconel, Incoloy, Monel, Hastelloy, Titanium, Copper Nickel, Copper, Brass etc. Master Stockist in India.
Reducer Insert is a pipe attachment detail in which a pipe is inserted into a recessed area of a Valve, fitting or flange. In contrast to buttweld fittings, Socket Weld Fittings are mainly used for small Pipe Diameters (Small Bore Piping); Generally for Piping whose Nominal Diameter is NPS 2 or smaller.
To join pipe to Valves and Fittings or to other sections of Pipe, Fillet-type seal welds be used. Socket Welded Joints construction is a good choice wherever the benefits of high leakage integrity and great structural strength are important design considerations.
Savoy Piping Inc., was established in 1985 and have 3 decades of Experience in Manufacturing Reducer Insert Socket Weld Fittings in accordance to ASME B16.11 and MSS-SP-83 with commitment to provide world class Quality to our Customers at Competitive Price by using Innovative Production System and Process.
Savoy Piping Inc., are recognized as the prominent Manufacturer, Exporter and Supplier of a broad assortment of Reducer Insert, Socket weld Reducer Insert.
The offered Socket weld Reducer Insert is designed with utmost precision in conformity with the International Quality Standards.
Socket weld Reducer Insert Range
| Socket weld Reducer Insert Specification | ASTM A182 / ASTM SA182, ASTM A105 / ASME SA105, ASTM A350 / ASME SA350, ASTM A694 / ASME SA694, ASTM B462 / ASME SB462 / ASTM B564 / ASME SB564, ASTM B151 / ASME SB151, ASTM B381 / ASME SB381 |
| Socket weld Reducer Insert Manufacturing Process | Forging / Socket / Threaded / Screwed |
| Socket weld Reducer Insert Available Other Grades | Stainless Steel - F304, F304L, F304H, F310s, F316, F316L, F317L, F321, F347, F904L, F410, F446 etc. Carbon Steel - 105N, LF2, F42, F46, F52, F56, F60, F65 etc. Alloy Steel - F5, F9, F11, F22, F91, 4140, Class 1, 2, 3 etc. Duplex and Super Duplex - F51, F53, F55, UNS N031803, UNS N032750, UNS N032760 etc. Inconel - 600, 601, 625, 718, UNS N06600, UNS N06601, UNS N06625, UNS N07718 etc. Incoloy - 800, 800H, 800HT, 825, UNS N08800, UNS N08810, UNS N08811, UNS N08825 etc. Monel - 400, UNS N04400 etc. Hastelloy - C276, C22, UNS N010276, UNS N06022 etc. Titanium - Grade 2, Grade 3, UNS R50400, UNS R56200 etc. Copper Nickel - 90/10, 70/30, UNS C71500, UNS C70600 etc. Other - Alloy 20, SMO 254, F44, 6 Moly, UNS N08020, UNS N031254 etc. |
| Socket weld Reducer Insert Outer Diameter | 1/8" NB TO 4" NB (DN6 to DN100) |
| Socket weld Reducer Insert Pressure Class | 2000 LBS, 3000 LBS, 6000 LBS ,9000 LBS or As Per Custom Requirement |
| Socket weld Reducer Insert Other Fittings Types | 45 Degree Elbow, 90 Degree Elbow, Lateral, Tee, Reducer Insert, Full Coupling, Half Coupling, Reducing Coupling, Cap, Union, Cross, Boss, Plug, Bushing etc. |
| Socket weld Reducer Insert Dimension | ASME 16.11 - Socket Welding and Threaded Forged Fittings MSS SP-79 - Socket Welding Reducer Inserts MSS SP-83 - Socket Weld Union MSS SP-95 - Swage(d) Nipples and Bull Plugs BS 3799 - Specification for Steel Pipe Fittings, Screwed and Socket-welding for the petroleum industry. |
| Socket weld Reducer Insert Other Testing | Tensile, Hardness Test, Chemical Analysis – Spectro Analysis, Positive Material Identification – PMI Testing, Flattening Test, Micro and Macro Test, Pitting Resistance Test, Flaring Test, Intergranular Corrosion (IGC) Test, NACE MR0175, Ultrasound Test, ASTM A262 Practice E, Charpy Impact Test, Grain Size, Dye Penetrant Test etc. |
| Socket weld Reducer Insert Packaging | Carrate / Wooden Pallet / Wooden box-a |
| Socket weld Reducer Insert Shipment & Transportation | By Road - Truck / Train Partial Load, Full Load, By Sea - Break-bulk Conventional Vessel / FCL (Full Container Load) / LCL (Less Container Load) / 20 Feet Container / 40 Feet Container / 45 Feet Container / High Cube Container / Open Top Container, By Air - Freighter Civil Passenger and Cargo Planes |
| Socket weld Reducer Insert Material Test Certificate | Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS, Bureau of Indian Standards BIS Approved ETC |

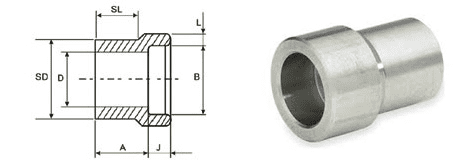

Dimensions Socket weld Reducer Insert ASME B16.11
|
||||||||||||||
| Class 3000 | Class 6000 | Class 9000 | ||||||||||||
| Nominal Pipe Size | C | D | Fitting Type |
A | B | E | Fitting Type |
A | B | E | Fitting Type |
A | B | E |
| 3/8 x 1/4 | 0.675 | 0.555 | 1 | 7/16 | 3/4 | 15/16 | 1 | 7/16 | 7/8 | 1 | ||||
| 1/2 x 3/8 | 0.850 | 0.690 | 1 | 7/16 | 13/16 | 1 1/16 | 1 | 7/16 | 15/16 | 1 3/16 | ||||
| 1/2 x 1/4 | 0.850 | 0.555 | 1 | 7/16 | 13/16 | 15/16 | 1 | 7/16 | 7/8 | 1 | ||||
| 3/4 x 1/2 | 1.060 | 0.855 | 1 | 7/16 | 7/8 | 1 5/16 | 1 | 7/16 | 1 1/16 | 1 3/8 | 1 | 7/16 | 1 3/16 | 1 3/4 |
| 3/4 x 3/8 | 1.060 | 0.690 | 2 | 7/16 | 5/8 | - | 1 | 7/16 | 7/8 | 1 3/16 | ||||
| 3/4 x 1/4 | 1.060 | 0.555 | 2 | 3/8 | 11/16 | - | 2 | 3/8 | 7/8 | - | ||||
| 1 x 3/4 | 1.325 | 1.065 | 1 | 9/16 | 15/16 | 1 1/2 | 1 | 9/16 | 1 1/8 | 1 11/16 | 1 | 9/16 | 1 1/4 | 2 |
| 1 x 1/2 | 1.325 | 0.855 | 2 | 1/2 | 5/8 | - | 1 | 7/16 | 1 1/8 | 1 3/8 | 1 | 7/16 | 1 1/8 | 1 3/4 |
| 1 x 3/8 | 1.325 | 0.690 | 2 | 7/16 | 11/16 | - | 2 | 1/2 | 7/8 | - | ||||
| 1 x 1/4 | 1.325 | 0.555 | 2 | 3/8 | 3/4 | - | 2 | 3/8 | 15/16 | - | ||||
| 1 1/4 x 1 | 1.670 | 1.330 | 1 | 9/16 | 1 | 1 7/8 | 1 | 9/16 | 1 3/16 | 2 | 1 | 9/16 | 1 3/8 | 2 3/8 |
| 1 1/4 x 3/4 | 1.670 | 1.065 | 2 | 9/16 | 11/16 | - | 2 | 9/16 | 13/16 | - | 1 | 9/16 | 1 3/16 | 2 |
| 1 1/4 x 1/2 | 1.670 | 0.855 | 2 | 1/2 | 3/4 | - | 2 | 1/2 | 7/8 | - | 2 | 1/2 | 7/8 | - |
| 1 1/4 x 3/8 | 1.670 | 0.690 | 2 | 7/16 | 13/16 | - | 2 | 7/16 | 15/16 | - | ||||
| 1 1/4 x 1/4 | 1.670 | 0.555 | 2 | 3/8 | 7/8 | - | 2 | 3/8 | 1 | - | ||||
| 1 1/2 x 1 1/4 | 1.910 | 1.675 | 1 | 9/16 | 1 1/8 | 2 1/4 | 1 | 9/16 | 1 3/8 | 2 3/8 | 1 | 9/16 | 1 5/8 | 2 3/4 |
| 1 1/2 x 1 | 1.910 | 1.330 | 2 | 5/8 | 11/16 | - | 1 | 9/16 | 1 3/16 | 2 | 1 | 9/16 | 1 3/8 | 2 3/8 |
| 1 1/2 x 3/4 | 1.910 | 1.065 | 2 | 9/16 | 3/4 | - | 2 | 9/16 | 1 | - | 2 | 9/16 | 1 | - |
| 1 1/2 x 1/2 | 1.910 | 0.855 | 2 | 1/2 | 13/16 | - | 2 | 1/2 | 1 1/16 | - | 2 | 9/16 | 1 | - |
| 1 1/2 x 3/8 | 1.910 | 0.690 | 2 | 7/16 | 7/8 | - | 2 | 7/16 | 1 1/8 | - | ||||
| 2 x 1 1/2 | 2.385 | 1.915 | 1 | 9/16 | 1 1/4 | 2 1/2 | 1 | 9/16 | 1 7/8 | 2 11/16 | 1 | 9/16 | 2 1/16 | 3 |
| 2 x 1 1/4 | 2.385 | 1.675 | 2 | 11/16 | 13/16 | - | 2 | 7/8 | 15/16 | - | 1 | 9/16 | 2 | 2 3/4 |
| 2 x 1 | 2.385 | 1.330 | 2 | 5/8 | 7/8 | - | 2 | 13/16 | 1 | - | 2 | 13/16 | 1 | - |
| 2 x 3/4 | 2.385 | 1.065 | 2 | 9/16 | 15/16 | - | 2 | 3/4 | 1 1/16 | - | 2 | 3/4 | 1 1/16 | - |
| 2 x 1/2 | 2.385 | 0.855 | 2 | 1/2 | 1 | - | 2 | 11/16 | 1 1/8 | - | 2 | 11/16 | 1 1/8 | - |
Reducer Insert Material and Grades
Stainless Steel Forged Socket Weld Reducer Insert:
ASTM A182 F304, F304L, F306, F316L, F304H, F309S, F309H, F310S, F310H, F316TI, F316H, F316LN, F317, F317L, F321, F321H, F11, F22, F91, F347, F347H, F454L, ASTM A312/A403 TP304, TP304L, TP316, TP316L
Duplex & Super Duplex Steel Forged Socket Weld Reducer Insert :
ASTM A 182 – F 51, F53, F55 S 31803, S 32205, S 32550, S 32750, S 32760, S 32950.
Carbon Steel Forged Socket Weld Reducer Insert :
ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2, ASTM / ASME A 53 GR. A & B, ASTM A 106 GR. A, B & C. API 5L GR. B, API 5L X 42, X 46, X 52, X 60, X 65 & X 70. ASTM / ASME A 691 GR A, B & C
Alloy Steel Forged Socket Weld Reducer Insert :
ASTM / ASME A 182, ASTM / ASME A 335, ASTM / ASME A 234 GR P 1, P 5, P 9, P 11, P 12, P 22, P 23, P 91, ASTM / ASME A 691 GR 1 CR, 1 1/4 CR, 2 1/4 CR, 5 CR, 9CR, 91
Copper Alloy Steel Forged Socket Weld Reducer Insert : ASTM / ASME SB 111 UNS NO. C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 C 71500, ASTM / ASME SB 466 UNS NO. C 70600 ( CU -NI- 45/10) , C 71500 ( CU -NI- 70/30)
Nickel Alloy Forged Socket Weld Reducer Insert :
ASTM / ASME SB 336, ASTM / ASME SB 564 / 160 / 163 / 472, UNS 2200 (NICKEL 200) , UNS 2201 (NICKEL 201 ) , UNS 4400 (MONEL 400 ) , UNS 8020 ( ALLOY 20 / 20 CB 3 ) , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS 6601 (INCONEL 601) , UNS 6625 (INCONEL 625) , UNS 10276 (HASTELLOY C 276)
Reducer Insert is in Ready Stock and Ready to Deliver. High Quality, Lower Costing with Best Service in Socketweld Fittings, Threaded Fittings and Screwed Fittings.
Reducer Insert Application
- Oil and Gas Industries
- Food Processing Industries
- Equipments
- Pipeline
- Power Industries
- Ship Building Industries
- Paper Industries
- Cement Industries
- Chemical Industries
Reducer Insert Available Offer and Discounts
Buy Now Reducer Insert at an Attractive Discounted Price, Order Above USD $ 25000 are Eligible of 2% Discount. We Offer Free Insurance and Best Shipping Rates. Our Prices are Always More Competitive and without any compromise in Quality of the Material.
Reducer Insert Exported Countries
We Export Reducer Insert Fittings to Saudi Arabia, Iran, Iraq, United Arab Emirates, Qatar, Bahrain, Oman, Kuwait, Turkey, Egypt, Yemen, Syria, Israel, Jordan, Cyprus, Singapore, Malaysia, Indonesia, Thailand, Vietnam, South Korea, Japan, Sri Lanka, Maldives, Bangladesh, Mayanmar, Taiwan, Cambodia, Argentina, Bolivia, Brazil, Chile, Venezuela, Colombia, Ecuador, Guyana, Paraguay, Uruguay, United States Of America, Canada, Mexico, Panama, Costa Rica, Puerto Rica, Trinidad And Tobago, Jamaica, Bahamas, Denmark, Russia, Norway, Germany, France, Italy, United Kingdom, Spain, Ukraine, Netherland, Belgium, Greece, Czech Republic, Portugal, Hungary, Albania, Austria, Switzerland, Slovakia, Finland, Ireland, Croatia, Slovenia, Malta, Nigeria, Algeria, Angola, South Africa, Libya, Egypt, Sudan, Equatorial Guinea, The Republic Of Congo, Gabon, Europe, Africa, Asia, North America, South America, Middle East, Far East.etc
Reducer Insert Supplying in States and Cities
We Supply Reducer Insert Andhra Pradesh, Arunachal Pradesh, Assam, Bihar, Chhattisgarh, Goa, Gujarat, Haryana, Himachal Pradesh, Jammu and Kashmir, Jharkhand, Karnataka, Kerala, Madhya Pradesh, Maharashtra, Manipur, Meghalaya, Mizoram, Nagaland, Odisha, Punjab, Rajasthan, Sikkim, Tamil Nadu, Telangana, Tripura, Uttar Pradesh, Uttarakhand, West Bengal, Mumbai, Navi Mumbai, Pune, Nashik, Nagpur, Solapur, Kolhapur, Ambernath, Ahmednagar, Latur, Ahmadabad, Surat, Rajkot, Vadodara, Panaji, Madgaon, Chennai, Kolkata, Hyderabad, Bengaluru, Delhi, New Delhi, Ludhiana, Chandigarh, Raipur, Bhopal, Jamshedpur, Vishakhapatnam, Cochin, Ghaziabad, Noida, Gurugram, Bhillai, Durgapur, Vijaywada, Kanpur etc.
Savoy Piping Inc., is a well known worldwide Exporter of Socket weld Reducer Insert, Savoy Piping Inc., is committed to provide each and every customer with the highest standard of customer service. We deals in Reducer Insert Socket weld in India and Overseas, offering a wide range of Reducer Insert Socket weld Fitting
