Socket weld Half Coupling is a pipe attachment detail in which a pipe is inserted into a recessed area of a Valve, fitting or flange. In contrast to buttweld fittings, Socket Weld Fittings are mainly used for small Pipe Diameters (Small Bore Piping); Generally for Piping whose Nominal Diameter is NPS 2 or smaller.
To join pipe to Valves and Fittings or to other sections of Pipe, Fillet-type seal welds be used. Socket Welded Joints construction is a good choice wherever the benefits of high leakage integrity and great structural strength are important design considerations.
Threaded Half Coupling
Threaded Half Coupling joints probably represent the oldest method of joining piping systems. Like Socket Weld fittings, threaded fittings are mainly used for small pipe diameters (Small Bore Piping); generally for piping whose nominal diameter is NPS 2 or smaller.
The dimensional standards for taper pipe threads are given in ASME B1.20.1. That document gives all required dimensions including number of threads per inch, pitch diameter, and normal engagement lengths for all pipe diameters.
- Threaded piping is commonly used in low-cost, noncritical applications such as domestic water, fire protection, and industrial cooling water systems.
- Threaded fittings are normally made of cast gray or malleable iron, cast brass or bronze, or forged alloy and carbon sHalf Couplingl.
- They are available in three pressure ratings: Class 2000, 3000 and 6000.
Savoy Piping Inc., was established in 1985 and have 3 decades of Experience in Manufacturing Forged Fittings in accordance to ASME B16.11 and MSS-SP-83 with commitment to provide world class Quality to our Customers at Competitive Price by using Innovative Production System and Process.
Savoy Piping Inc., are recognized as the prominent Manufacturer, Exporter and Supplier of a broad assortment of Socket weld Half Coupling, Threaded Half Coupling, Half Coupling.
The offered Full Coupling is designed with utmost precision in conformity with the International Quality Standards.
Half Coupling Range
| Half Coupling Specification | ASTM A182 / ASTM SA182, ASTM A105 / ASME SA105, ASTM A350 / ASME SA350, ASTM A694 / ASME SA694, ASTM B462 / ASME SB462 / ASTM B564 / ASME SB564, ASTM B151 / ASME SB151, ASTM B381 / ASME SB381 |
| Half Coupling Manufacturing Process | Forging / Socket / Threaded / Screwed |
| Half Coupling Available Other Grades | Stainless Steel - F304, F304L, F304H, F310s, F316, F316L, F317L, F321, F347, F904L, F410, F446 etc. Carbon Steel - 105N, LF2, F42, F46, F52, F56, F60, F65 etc. Alloy Steel - F5, F9, F11, F22, F91, 4140, Class 1, 2, 3 etc. Duplex and Super Duplex - F51, F53, F55, UNS N031803, UNS N032750, UNS N032760 etc. Inconel - 600, 601, 625, 718, UNS N06600, UNS N06601, UNS N06625, UNS N07718 etc. Incoloy - 800, 800H, 800HT, 825, UNS N08800, UNS N08810, UNS N08811, UNS N08825 etc. Monel - 400, UNS N04400 etc. Hastelloy - C276, C22, UNS N010276, UNS N06022 etc. Titanium - Grade 2, Grade 3, UNS R50400, UNS R56200 etc. Copper Nickel - 90/10, 70/30, UNS C71500, UNS C70600 etc. Other - Alloy 20, SMO 254, F44, 6 Moly, UNS N08020, UNS N031254 etc. |
| Half Coupling Outer Diameter | 1/8" NB TO 4" NB (DN6 to DN100) |
| Half Coupling Pressure Class | 2000 LBS, 3000 LBS, 6000 LBS ,9000 LBS or As Per Custom Requirement |
| Half Elbow Other Fittings Types | 45 Degree Elbow, 90 Degree Elbow, Lateral, Tee, Reducer Insert, Full Coupling, Half Coupling, Reducing Coupling, Cap, Union, Cross, Boss, Plug, Bushing etc. |
| Half Coupling Dimension | ASME 16.11 - Socket Welding and Threaded Forged Fittings MSS SP-79 - Socket Welding Reducer Inserts MSS SP-83 - Socket Weld Union MSS SP-95 - Swage(d) Nipples and Bull Plugs BS 3799 - Specification for Steel Pipe Fittings, Screwed and Socket-welding for the petroleum industry. |
| Half Coupling Other Testing | Tensile, Hardness Test, Chemical Analysis – Spectro Analysis, Positive Material Identification – PMI Testing, Flattening Test, Micro and Macro Test, Pitting Resistance Test, Flaring Test, Intergranular Corrosion (IGC) Test, NACE MR0175, Ultrasound Test, ASTM A262 Practice E, Charpy Impact Test, Grain Size, Dye Penetrant Test etc. |
| Half Coupling Packaging | Carrate / Wooden Pallet / Wooden box-a |
| Half Coupling Shipment & Transportation | By Road - Truck / Train Partial Load, Full Load, By Sea - Break-bulk Conventional Vessel / FCL (Full Container Load) / LCL (Less Container Load) / 20 Feet Container / 40 Feet Container / 45 Feet Container / High Cube Container / Open Top Container, By Air - Freighter Civil Passenger and Cargo Planes |
| Half Coupling Material Test Certificate | Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS, Bureau of Indian Standards BIS Approved ETC |

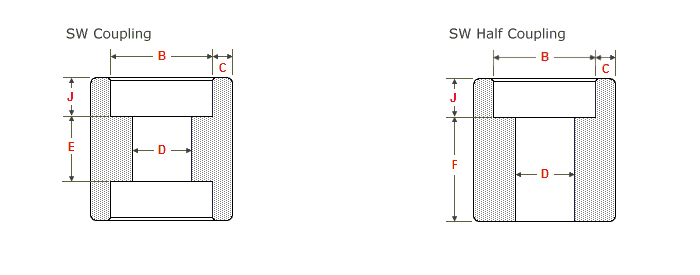

Dimensions of Socket Weld Full Coupling and Threaded Half Coupling ASME B16.11 - NPS 1/2 to 4 - Class 3000
|
|||||
| NPS | Socket Bore |
Depth Socket |
Bore DIA |
Socket wall THK |
|
| B | J | D | C | ||
| 1/2 | 21.95 21.70 |
10 | 16.6 15 |
4.65 4.10 |
|
| 3/4 | 27.30 27.05 |
13 | 21.7 20.2 |
4.90 4.25 |
|
| 1 | 34.05 33.80 |
13 | 27.4 25.9 |
5.70 5.00 |
|
| 1.1/4 | 42.80 42.55 |
13 | 35.8 34.3 |
6.05 5.30 |
|
| 1.1/2 | 48.90 48.65 |
13 | 41.7 40.1 |
6.35 5.55 |
|
| 2 | 61.35 61.10 |
16 | 53.5 51.7 |
6.95 6.05 |
|
| 2.1/2 | 74.20 73.80 |
16 | 64.2 61.2 |
8.75 7.65 |
|
| 3 | 90.15 89.80 |
16 | 79.5 46.4 |
9.50 8.30 |
|
| 4 | 115.80 115.45 |
19 | 103.8 100.7 |
10.70 9.35 |
|
| NPS | Laying lengths | ||||
| Coupling E |
Half coupling F |
||||
| 1/2 | 9.5 | 22.5 | |||
| 3/4 | 9.5 | 23.5 | |||
| 1 | 13 | 29 | |||
| 1.1/4 | 13 | 30 | |||
| 1.1/2 | 13 | 32 | |||
| 2 | 19 | 41 | |||
| 2.1/2 | 19 | 42.5 | |||
| 3 | 19 | 44.5 | |||
| 4 | 19 | 47.5 | |||
Dimensions of Socket Weld Full Coupling and Threaded Half Coupling ASME B16.11 - NPS 1/2 to 2 - Class 6000
|
|
|||||
| NPS | Socket Bore |
Depth Socket |
Bore DIA |
Socket wall THK |
|
| B | J | D | C | ||
| 1/2 | 21.95 21.70 |
10 | 12.5 11 |
5.95 5.20 |
|
| 3/4 | 27.30 27.05 |
13 | 16.3 14.8 |
6.95 6.05 |
|
| 1 | 34.05 33.80 |
13 | 21.5 19.9 |
7.90 6.95 |
|
| 1.1/4 | 42.80 42.55 |
13 | 30.2 28.7 |
7.90 6.95 |
|
| 1.1/2 | 48.90 48.65 |
13 | 34.7 33.2 |
8.90 7.80 |
|
| 2 | 61.35 61.10 |
16 | 43.6 42.1 |
10.90 9.50 |
|
| NPS | Laying lengths | ||||
| Coupling E |
Half coupling F |
||||
| 1/2 | 9.5 | 22.5 | |||
| 3/4 | 9.5 | 23.5 | |||
| 1 | 13 | 29 | |||
| 1.1/4 | 13 | 30 | |||
| 1.1/2 | 13 | 32 | |||
| 2 | 19 | 41 | |||
Genral Notes
- Dimensions are in millimeters unless otherwise indicated.
- Socket Bore (B) - Maximum and Minimum dimensions.
- Bore Diameter (D) - Maximum and Minimum dimensions.
- Socket wall thickness - (C) - Average of Socket wall thickness.
- Dimensional tolerances laying lengths - (E & F)
NPS 1/2 and NPS 3/4 = +/- 1.5 mm
NPS 1 to NPS 2 = +/- 2 mm
NPS 2.1/2 to NPS 4 = +/- 2.5 mm

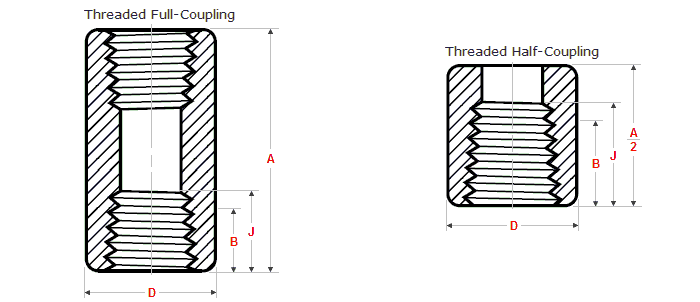

Dimensions of Full Coupling and Threaded Half Coupling ASME B16.11 - NPS 1/2 to 4 - Class 3000
|
|||||
