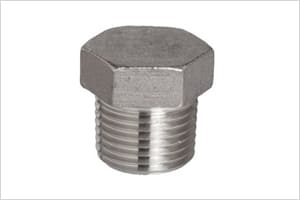

Threaded Plug joints probably represent the oldest method of joining piping systems. Like Socket Weld fittings, threaded fittings are mainly used for small pipe diameters (Small Bore Piping); generally for piping whose nominal diameter is NPS 2 or smaller.
The dimensional standards for taper pipe threads are given in ASME B1.20.1. That document gives all required dimensions including number of threads per inch, pitch diameter, and normal engagement lengths for all pipe diameters.
Savoy Piping Inc., was established in 1985 and have 3 decades of Experience in Manufacturing Threaded Plug Fittings in accordance to ASME B16.11 and MSS-SP-83 with commitment to provide world class Quality to our Customers at Competitive Price by using Innovative Production System and Process.
Savoy Piping Inc., are recognized as the prominent Manufacturer, Exporter and Supplier of a broad assortment of Threaded Plug, Hex Plug, Square Head Plug, Round Head Plug.
The offered Threaded Plug is designed with utmost precision in conformity with the International Quality Standards.
Threaded Plug Specification | ASTM A182 / ASTM SA182, ASTM A105 / ASME SA105, ASTM A350 / ASME SA350, ASTM A694 / ASME SA694, ASTM B462 / ASME SB462 / ASTM B564 / ASME SB564, ASTM B151 / ASME SB151, ASTM B381 / ASME SB381 |
Threaded Plug Manufacturing Process | Forging / Socket / Threaded / Screwed |
Threaded Plug Available Other Grades | Stainless Steel - F304, F304L, F304H, F310s, F316, F316L, F317L, F321, F347, F904L, F410, F446 etc. Carbon Steel - 105N, LF2, F42, F46, F52, F56, F60, F65 etc. Alloy Steel - F5, F9, F11, F22, F91, 4140, Class 1, 2, 3 etc. Duplex and Super Duplex - F51, F53, F55, UNS N031803, UNS N032750, UNS N032760 etc. Inconel - 600, 601, 625, 718, UNS N06600, UNS N06601, UNS N06625, UNS N07718 etc. Incoloy - 800, 800H, 800HT, 825, UNS N08800, UNS N08810, UNS N08811, UNS N08825 etc. Monel - 400, UNS N04400 etc. Hastelloy - C276, C22, UNS N010276, UNS N06022 etc. Titanium - Grade 2, Grade 3, UNS R50400, UNS R56200 etc. Copper Nickel - 90/10, 70/30, UNS C71500, UNS C70600 etc. Other - Alloy 20, SMO 254, F44, 6 Moly, UNS N08020, UNS N031254 etc. |
Threaded Plug Outer Diameter | 1/8" NB TO 4" NB (DN6 to DN100) |
Threaded Plug Pressure Class | 2000 LBS, 3000 LBS, 6000 LBS ,9000 LBS or As Per Custom Requirement |
Threaded Plug Other Fittings Types | 45 Degree Elbow, 90 Degree Elbow, Lateral, Tee, Reducer Insert, Full Coupling, Half Coupling, Reducing Coupling, Cap, Union, Cross, Boss, Plug, Bushing etc. |
Threaded Plug Dimension | ASME 16.11 - Socket Welding and Threaded Forged Fittings MSS SP-79 - Socket Welding Reducer Inserts MSS SP-83 - Socket Weld Union MSS SP-95 - Swage(d) Nipples and Bull Plugs BS 3799 - Specification for Steel Pipe Fittings, Screwed and Socket-welding for the petroleum industry. |
Threaded Plug Other Testing | Tensile, Hardness Test, Chemical Analysis – Spectro Analysis, Positive Material Identification – PMI Testing, Flattening Test, Micro and Macro Test, Pitting Resistance Test, Flaring Test, Intergranular Corrosion (IGC) Test, NACE MR0175, Ultrasound Test, ASTM A262 Practice E, Charpy Impact Test, Grain Size, Dye Penetrant Test etc. |
Threaded Plug Packaging | Carrate / Wooden Pallet / Wooden box-a |
Threaded Plug Shipment & Transportation | By Road - Truck / Train Partial Load, Full Load, By Sea - Break-bulk Conventional Vessel / FCL (Full Container Load) / LCL (Less Container Load) / 20 Feet Container / 40 Feet Container / 45 Feet Container / High Cube Container / Open Top Container, By Air - Freighter Civil Passenger and Cargo Planes |
Threaded Plug Material Test Certificate | Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS, Bureau of Indian Standards BIS Approved ETC |
Nominal Pipe Size |
Square Head Plugs | Round Head Plugs | Hex Plugs and Bushing | ||||||
Min Length, | Min. Square Height, |
Min. Width Flats, |
Nominal Head Diameter, |
Min Length, | Nominal Width Flats, |
Min. Hex Height |
|||
Bushing, | Plug, | ||||||||
A | B | C | E | D | E | G | H | ||
1⁄8 | 10 | 6 | 7 | 10 | 35 | 11 | . . . | 6 | |
1⁄4 | 11 | 6 | 10 | 14 | 41 | 16 | 3 | 6 | |
3⁄8 | 13 | 8 | 11 | 18 | 41 | 18 | 4 | 8 | |
1⁄2 | 14 | 10 | 14 | 21 | 44 | 22 | 5 | 8 | |
3⁄4 | 16 | 11 | 16 | 27 | 44 | 27 | 6 | 10 | |
1 | 19 | 13 | 21 | 33 | 51 | 36 | 6 | 10 | |
11⁄4 | 21 | 14 | 24 | 43 | 51 | 46 | 7 | 14 | |
11⁄2 | 21 | 16 | 28 | 48 | 51 | 50 | 8 | 16 | |
2 | 22 | 18 | 32 | 60 | 64 | 65 | 9 | 18 | |
21⁄2 | 27 | 19 | 36 | 73 | 70 | 75 | 10 | 19 | |
3 | 28 | 21 | 41 | 89 | 70 | 90 | 10 | 21 | |
4 | 32 | 25 | 65 | 114 | 76 | 115 | 13 | 25 |
GENERAL NOTE: Dimensions are in millimeters.
(1) Cautionary Note Regarding Hex Bushings: Hex head bushings of one-size reduction should not be used in services where they might be subject to harmful loads and forces other than internal pressures.
Stainless Steel Forged Threaded Plugs :
ASTM A182 F304, F304L, F306, F316L, F304H, F309S, F309H, F310S, F310H, F316TI, F316H, F316LN, F317, F317L, F321, F321H, F11, F22, F91, F347, F347H, F454L, ASTM A312/A403 TP304, TP304L, TP316, TP316L
Duplex & Super Duplex Steel Forged Threaded Plugs :
ASTM A 182 – F 51, F53, F55 S 31803, S 32205, S 32550, S 32750, S 32760, S 32950.
Carbon Steel Forged Threaded Plugs :
ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2, ASTM / ASME A 53 GR. A & B, ASTM A 106 GR. A, B & C. API 5L GR. B, API 5L X 42, X 46, X 52, X 60, X 65 & X 70. ASTM / ASME A 691 GR A, B & C
Alloy Steel Forged Threaded Plugs :
ASTM / ASME A 182, ASTM / ASME A 335, ASTM / ASME A 234 GR P 1, P 5, P 9, P 11, P 12, P 22, P 23, P 91, ASTM / ASME A 691 GR 1 CR, 1 1/4 CR, 2 1/4 CR, 5 CR, 9CR, 91
Copper Alloy Steel Forged Threaded Plugs : ASTM / ASME SB 111 UNS NO. C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 C 71500, ASTM / ASME SB 466 UNS NO. C 70600 ( CU -NI- 45/10) , C 71500 ( CU -NI- 70/30)
Nickel Alloy Forged Threaded Plugs :
ASTM / ASME SB 336, ASTM / ASME SB 564 / 160 / 163 / 472, UNS 2200 (NICKEL 200) , UNS 2201 (NICKEL 201 ) , UNS 4400 (MONEL 400 ) , UNS 8020 ( ALLOY 20 / 20 CB 3 ) , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS 6601 (INCONEL 601) , UNS 6625 (INCONEL 625) , UNS 10276 (HASTELLOY C 276)
