Cross - Forged Fitting

Socket weld Cross, Threaded Cross, Scewed Cross, Manufacturer and Suppliers in India.

Cross as per ANSI B16.11 in Stainless Cross, Carbon Cross, Alloys Cross, Duplex Cross, Inconel, Incoloy, Monel, Hastelloy, Titanium, Copper Nickel, Copper, Brass etc. Master Stockist in India.


Socket weld Cross, Threaded Cross, Scewed Cross

Socket weld Cross is a pipe attachment detail in which a pipe is inserted into a recessed area of a Valve, fitting or flange. In contrast to buttweld fittings, Socket Weld Fittings are mainly used for small Pipe Diameters (Small Bore Piping); Generally for Piping whose Nominal Diameter is NPS 2 or smaller.

To join pipe to Valves and Fittings or to other sections of Pipe, Fillet-type seal welds be used. Socket Welded Joints construction is a good choice wherever the benefits of high leakage integrity and great structural strength are important design considerations.

Threaded Cross

Threaded Cross joints probably represent the oldest method of joining piping systems. Like Socket Weld fittings, threaded fittings are mainly used for small pipe diameters (Small Bore Piping); generally for piping whose nominal diameter is NPS 2 or smaller.

The dimensional standards for taper pipe threads are given in ASME B1.20.1. That document gives all required dimensions including number of threads per inch, pitch diameter, and normal engagement lengths for all pipe diameters.

  • Threaded piping is commonly used in low-cost, noncritical applications such as domestic water, fire protection, and industrial cooling water systems.
  • Threaded fittings are normally made of cast gray or malleable iron, cast brass or bronze, or forged alloy and carbon Cross.
  • They are available in three pressure ratings: Class 2000, 3000 and 6000.

Savoy Piping Inc., was established in 1985 and have 3 decades of Experience in Manufacturing Forged Weld Fittings in accordance to ASME B16.11 and MSS-SP-83 with commitment to provide world class Quality to our Customers at Competitive Price by using Innovative Production System and Process.

Savoy Piping Inc., are recognized as the prominent Manufacturer, Exporter and Supplier of a broad assortment of Socket weld Cross, Threaded Cross, Cross.

The offered Cross is designed with utmost precision in conformity with the International Quality Standards.

Cross Range

Cross Specification ASTM A182 / ASTM SA182, ASTM A105 / ASME SA105, ASTM A350 / ASME SA350, ASTM A694 / ASME SA694, ASTM B462 / ASME SB462 / ASTM B564 / ASME SB564, ASTM B151 / ASME SB151, ASTM B381 / ASME SB381
Cross Manufacturing Process Forging / Socket / Threaded / Screwed
Cross Available Other Grades Stainless Steel - F304, F304L, F304H, F310s, F316, F316L, F317L, F321, F347, F904L, F410, F446 etc.
Carbon Steel - 105N, LF2, F42, F46, F52, F56, F60, F65 etc.
Alloy Steel - F5, F9, F11, F22, F91, 4140, Class 1, 2, 3 etc.
Duplex and Super Duplex - F51, F53, F55, UNS N031803, UNS N032750, UNS N032760 etc.
Inconel - 600, 601, 625, 718, UNS N06600, UNS N06601, UNS N06625, UNS N07718 etc.
Incoloy - 800, 800H, 800HT, 825, UNS N08800, UNS N08810, UNS N08811, UNS N08825 etc.
Monel - 400, UNS N04400 etc.
Hastelloy - C276, C22, UNS N010276, UNS N06022 etc.
Titanium - Grade 2, Grade 3, UNS R50400, UNS R56200 etc.
Copper Nickel - 90/10, 70/30, UNS C71500, UNS C70600 etc.
Other - Alloy 20, SMO 254, F44, 6 Moly, UNS N08020, UNS N031254 etc.
Cross Outer Diameter 1/8" NB TO 4" NB (DN6 to DN100)
Cross Pressure Class 2000 LBS, 3000 LBS, 6000 LBS ,9000 LBS or As Per Custom Requirement
Cross Elbow Other Fittings Types 45 Degree Elbow, 90 Degree Elbow, Lateral, Tee, Reducer Insert, Full Coupling, Half Coupling, Reducing Coupling, Cap, Union, Cross, Boss, Plug, Bushing etc.
Cross Dimension ASME 16.11 - Socket Welding and Threaded Forged Fittings
MSS SP-79 - Socket Welding Reducer Inserts
MSS SP-83 - Socket Weld Union
MSS SP-95 - Swage(d) Nipples and Bull Plugs
BS 3799 - Specification for Steel Pipe Fittings, Screwed and Socket-welding for the petroleum industry.
Cross Other Testing Tensile, Hardness Test, Chemical Analysis – Spectro Analysis, Positive Material Identification – PMI Testing, Flattening Test, Micro and Macro Test, Pitting Resistance Test, Flaring Test, Intergranular Corrosion (IGC) Test, NACE MR0175, Ultrasound Test, ASTM A262 Practice E, Charpy Impact Test, Grain Size, Dye Penetrant Test etc.
Cross Packaging Carrate / Wooden Pallet / Wooden box-a
Cross Shipment & Transportation By Road - Truck / Train Partial Load, Full Load, By Sea - Break-bulk Conventional Vessel / FCL (Full Container Load) / LCL (Less Container Load) / 20 Feet Container / 40 Feet Container / 45 Feet Container / High Cube Container / Open Top Container, By Air - Freighter Civil Passenger and Cargo Planes
Cross Material Test Certificate Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS, Bureau of Indian Standards BIS Approved ETC

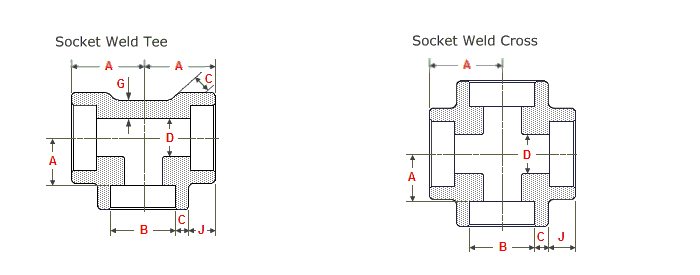

Dimensions of Socket Weld Tee and Socket weld Cross ASME B16.11 - NPS 1/2 to 4 - Class 3000

Tee, Socket weld Tee, Forged Tee, Threaded Tee, Screwed Tee, Cross, Socket weld Cross, Forged Cross, Threaded Cross, Screwed Cross
NPS Socket Bore Depth Socket Bore dia
B J D
1/2 21.95
21.70		 10 16.6
15
3/4 27.30
27.05		 13 21.7
20.2
1 34.05
33.80		 13 27.4
25.9
1.1/4 42.80
42.55		 13 35.8
34.3
1.1/2 48.90
48.65		 13 41.7
40.1
2 61.35
61.10		 16 53.5
51.7
2.1/2 74.20
73.80		 16 64.2
61.2
3 90.15
89.80		 16 79.5
46.4
4 115.80
115.45		 19 103.8
100.7
NPS Socket
WT		 Body
WT		 Center to bottom of socket
C G A
1/2 4.65
4.10		 3.75 15.5
3/4 4.90
4.25		 3.90 19.5
1 5.70
5.00		 4.55 22
1.1/4 6.05
5.30		 4.85 27
1.1/2 6.35
5.55		 5.10 32
2 6.95
6.05		 5.55 38
2.1/2 8.75
7.65		 7.00 41.5
3 9.50
8.30		 7.60 57.5
4 10.70
9.35		 8.55 66.5

Dimensions of Socket Weld Tee and Socket weld Cross ASME B16.11 - NPS 1/2 to 4 - Class 6000

Tee, Socket weld Tee, Forged Tee, Threaded Tee, Screwed Tee, Cross, Socket weld Cross, Forged Cross, Threaded Cross, Screwed Cross
NPS Socket Bore Depth Socket Bore dia
B J D
1/2 21.95
21.70		 10 12.5
11
3/4 27.30
27.05		 13 16.3
14.8
1 34.05
33.80		 13 21.5
19.9
1.1/4 42.80
42.55		 13 30.2
28.7
1.1/2 48.90
48.65		 13 34.7
33.2
2 61.35
61.10		 16 43.6
42.1
NPS Socket
WT		 Body
WT		 Center to bottom of socket
C G A
1/2 5.95
5.20		 4.80 19.5
3/4 6.95
6.05		 5.55 22.5
1 7.90
6.95		 6.35 27
1.1/4 7.90
6.95		 6.35 32
1.1/2 8.90
7.80		 7.15 38
2 10.90
9.50		 8.75 41

Dimensions are in millimeters unless otherwise indicated.
Socket Bore (B) - Maximum and minimum dimensions.
Bore Diameter (D) - Maximum and minimum dimensions.
Socket wall thickness - (C) - Average of Socket wall thickness.
Dimensional tolerances center to bottom of socket - (A)
NPS 1/2 and NPS 3/4 = +/- 1.5 mm
NPS 1 to NPS 2 = +/- 2 mm
NPS 2.1/2 to NPS 4 = +/- 2.5 mm

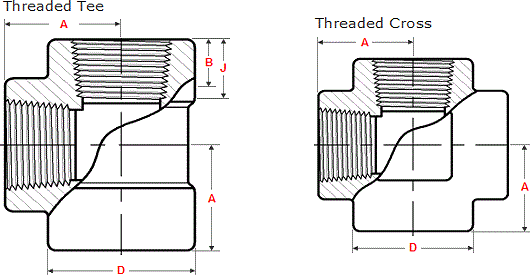

Dimensions of Threaded Tee and Threaded Cross ASME B16.11 - NPS 1/2 to 4 - Class 2000

Tee, Socket weld Tee, Forged Tee, Threaded Tee, Screwed Tee, Cross, Socket weld Cross, Forged Cross, Threaded Cross, Screwed Cross
NPS Socket Bore Depth Socket Bore dia
B J D
1/2 21.95
21.70		 10 16.6
15
3/4 27.30
27.05		 13 21.7
20.2
1 34.05
33.80		 13 27.4
25.9
1.1/4 42.80
42.55		 13 35.8
34.3
1.1/2 48.90
48.65		 13 41.7
40.1
2 61.35
61.10		 16 53.5
51.7
2.1/2 74.20
73.80		 16 64.2
61.2
3 90.15
89.80		 16 79.5
46.4
4 115.80
115.45		 19 103.8
100.7
NPS Socket
WT		 Body
WT		 Center to bottom of socket
C G A
1/2 4.65
4.10		 3.75 15.5
3/4 4.90
4.25		 3.90 19.5
1 5.70
5.00		 4.55 22
1.1/4 6.05
5.30		 4.85 27
1.1/2 6.35
5.55		 5.10 32
2 6.95
6.05		 5.55 38
2.1/2 8.75
7.65		 7.00 41.5
3 9.50
8.30		 7.60 57.5
4 10.70
9.35		 8.55 66.5

Dimensions of Threaded Tee and Threaded Cross ASME B16.11 - NPS 1/2 to 4 - Class 3000

Tee, Socket weld Tee, Forged Tee, Threaded Tee, Screwed Tee, Cross, Socket weld Cross, Forged Cross, Threaded Cross, Screwed Cross
NPS Min Length of Thread Outside Dia of Band
D		 Center to End
A		 Min
WT
B J
1/2 10.9 13.6 38 33 4.09
3/4 12.7 13.9 46 38 4.32
1 14.7 17.3 56 44 4.98
1.1/4 17 18 62 51 5.28
1.1/2 17.8 18.4 75 60 5.56
2 19 19.2 84 64 7.14
2.1/2 23.6 28.9 102 83 7.65
3 25.9 30.5 121 95 8.84
4 27.7 33 152 114 11.18

Dimensions of Threaded Tee and Threaded Cross ASME B16.11 - NPS 1/2 to 4 - Class 6000

Tee, Socket weld Tee, Forged Tee, Threaded Tee, Screwed Tee, Cross, Socket weld Cross, Forged Cross, Threaded Cross, Screwed Cross
NPS Min Length of Thread Outside Dia of Band
D		 Center to End
A		 Min
WT
B J
1/2 10.9 13.6 46 38 8.15
3/4 12.7 13.9 56 44 8.53
1 14.7 17.3 62 51 9.93
1.1/4 17 18 75 60 10.59
1.1/2 17.8 18.4 84 64 11.07
2 19 19.2 102 83 12.09
2.1/2 23.6 28.9 121 95 15.29
3 25.9 30.5 146 106 16.64
4 27.7 33 152 114 18.67

General notes:

Dimensions are in millimeters unless otherwise indicated.
Dimension B is minimum length of perfect thread.
The length of useful thread (B plus threads with fully formed roots and flat crests) shall not be less than J.

Cross Material and Grades

Stainless Cross Forged Cross:
ASTM A182 F304, F304L, F306, F316L, F304H, F309S, F309H, F310S, F310H, F316TI, F316H, F316LN, F317, F317L, F321, F321H, F11, F22, F91, F347, F347H, F454L, ASTM A312/A403 TP304, TP304L, TP316, TP316L

Duplex & Super Duplex Cross Forged Cross :
ASTM A 182 – F 51, F53, F55 S 31803, S 32205, S 32550, S 32750, S 32760, S 32950.

Carbon Cross Forged Cross :
ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2, ASTM / ASME A 53 GR. A & B, ASTM A 106 GR. A, B & C. API 5L GR. B, API 5L X 42, X 46, X 52, X 60, X 65 & X 70. ASTM / ASME A 691 GR A, B & C

Alloy Cross Forged Cross :
ASTM / ASME A 182, ASTM / ASME A 335, ASTM / ASME A 234 GR P 1, P 5, P 9, P 11, P 12, P 22, P 23, P 91, ASTM / ASME A 691 GR 1 CR, 1 1/4 CR, 2 1/4 CR, 5 CR, 9CR, 91

Copper Alloy Cross Forged Cross : ASTM / ASME SB 111 UNS NO. C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 C 71500, ASTM / ASME SB 466 UNS NO. C 70600 ( CU -NI- 45/10) , C 71500 ( CU -NI- 70/30)

Nickel Alloy Forged Cross :
ASTM / ASME SB 336, ASTM / ASME SB 564 / 160 / 163 / 472, UNS 2200 (NICKEL 200) , UNS 2201 (NICKEL 201 ) , UNS 4400 (MONEL 400 ) , UNS 8020 ( ALLOY 20 / 20 CB 3 ) , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS 6601 (INCONEL 601) , UNS 6625 (INCONEL 625) , UNS 10276 (HASTELLOY C 276)

Forged Cross is in Ready Stock and Ready to Deliver. High Quality, Lower Costing with Best Service in Socketweld Fittings, Threaded Fittings and Screwed Fittings.

Forged Cross Application

  • Oil and Gas Industries
  • Food Processing Industries
  • Equipments
  • Pipeline
  • Power Industries
  • Ship Building Industries
  • Paper Industries
  • Cement Industries
  • Chemical Industries

Cross Available Offer and Discounts

Buy Now Cross at an Attractive Discounted Price, Order Above USD $ 25000 are Eligible of 2% Discount. We Offer Free Insurance and Best Shipping Rates. Our Prices are Always More Competitive and without any compromise in Quality of the Material.

Cross Exported Countries

We Export Socket weld Cross to Saudi Arabia, Iran, Iraq, United Arab Emirates, Qatar, Bahrain, Oman, Kuwait, Turkey, Egypt, Yemen, Syria, Israel, Jordan, Cyprus, Singapore, Malaysia, Indonesia, Thailand, Vietnam, South Korea, Japan, Sri Lanka, Maldives, Bangladesh, Mayanmar, Taiwan, Cambodia, Argentina, Bolivia, Brazil, Chile, Venezuela, Colombia, Ecuador, Guyana, Paraguay, Uruguay, United States Of America, Canada, Mexico, Panama, Costa Rica, Puerto Rica, Trinidad And Tobago, Jamaica, Bahamas, Denmark, Russia, Norway, Germany, France, Italy, United Kingdom, Spain, Ukraine, Netherland, Belgium, Greece, Czech Republic, Portugal, Hungary, Albania, Austria, Switzerland, Slovakia, Finland, Ireland, Croatia, Slovenia, Malta, Nigeria, Algeria, Angola, South Africa, Libya, Egypt, Sudan, Equatorial Guinea, The Republic Of Congo, Gabon, Europe, Africa, Asia, North America, South America, Middle East, Far East.etc

Cross Supplying in States and Cities

We Supply Threaded Cross Andhra Pradesh, Arunachal Pradesh, Assam, Bihar, Chhattisgarh, Goa, Gujarat, Haryana, Himachal Pradesh, Jammu and Kashmir, Jharkhand, Karnataka, Kerala, Madhya Pradesh, Maharashtra, Manipur, Meghalaya, Mizoram, Nagaland, Odisha, Punjab, Rajasthan, Sikkim, Tamil Nadu, Telangana, Tripura, Uttar Pradesh, Uttarakhand, West Bengal, Mumbai, Navi Mumbai, Pune, Nashik, Nagpur, Solapur, Kolhapur, Ambernath, Ahmednagar, Latur, Ahmadabad, Surat, Rajkot, Vadodara, Panaji, Madgaon, Chennai, Kolkata, Hyderabad, Bengaluru, Delhi, New Delhi, Ludhiana, Chandigarh, Raipur, Bhopal, Jamshedpur, Vishakhapatnam, Cochin, Ghaziabad, Noida, Gurugram, Bhillai, Durgapur, Vijaywada, Kanpur etc.

Savoy Piping Inc., is a well known worldwide Exporter of Forged Cross, Savoy Piping Inc., is committed to provide each and every customer with the highest standard of customer service. We deals in Threaded Cross in India and Overseas, offering a wide range of Socket weld Cross
