API 5L Specification| API 5L Pipes| API 5L Seamless Pipes| API 5L Line Pipes| API 5L Carbon Steel Pipes| API 5L Grade B,x42,x46,x52,X56,x56,x60,x70 Pipe

API 5L Pipes, API 5L Line Pipes, API 5L Seamless Line Pipes, API 5L Seamless Pipes, API 5L Carbon Steel Seamless Pipes

API 5L Grade B PSL1 Pipes Certified and Tested in accordance with ISO 3183, ISO 15156, NACE MRO175 / 103, HIC, SWC, SSC, SSCC, SOUR Service, H2S, IMPACT, Post Weld Heat Treatment (PWHT), IBR, High yield, IPS-M-PI-190, IPS-M-PI-221 etc.

api 5l pipe, api 5l grade b pipe api 5l x 42 pipe, api 5l x52 pipe, api 5l x56 pipe, api 5l x60 pipe, api 5l x65 pipe, api 5l line pipe, api 5l psl1 pipe, api 5l psl2 Pipes

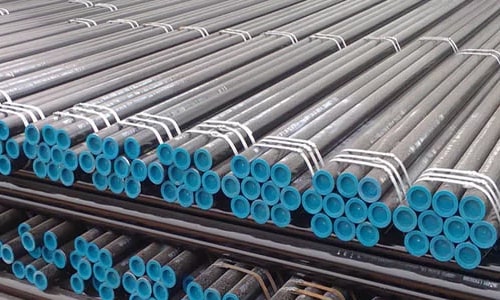

Savoy Piping Inc. we carry a full inventory of API 5L Pipe Carbon Steel Pipe products in a variety of sizes to meet the structural piping requirements for applications the water, petroleum, oil & gas and other industries. API 5L Seamless Pipe Carbon Steel Pipe can be Structural in Nature or used in Fluid, Gas, Oil Transmission.

We Supply API 5L Line Pipe in API 5L Grade B PSL1, API 5L Grade B PSL2, API 5L X42 PSL1, API 5L X42 PSL2, API 5L X46 PSL1, API 5L X46 PSL2, API 5L X52 PSL1, API 5L X52 PSL2, API 5L X56 PSL1, API 5L X56 PSL2, API 5L X60 PSL1, API 5L X60 PSL2, API 5L X65 PSL1, API 5L X65 PSL2 , API 5L X70 PSL1, API 5L X70 PSL2 . The grade indicates the testing methods required for a given application. It is critical that structural grades of Carbon Steel Pipe not be used for Pressure or Fluid applications.

Savoy Piping Inc. specializes in API 5L Seamless Line Pipe with years of Experience in Manufacturing API 5L Carbon Steel Pipe we offer high quality, lower cost but the best service. As a result to that our API 5L Pipes export account today is in various countries like Iran, Iraq, Kuwait, Saudi Arabia, Oman, UAE, Singapore, Malaysia, Indonesia, South korea, Chile, Peru, Venezuela, Australia, Nigeria, Angola, Senegal, Mozambique, Algeria, Libya, Azerbaijan, Netherlands, Brazil, Norway, United Kingdom, Mexico, Canada etc.

Introduction of API 5L Seamless Pipes

PI 5L Seamless Pipes are a type of steel pipes that adhere to the specifications outlined by the American Petroleum Institute (API). These pipes are designed for use in conveying gas, water, and oil in both the oil and natural gas industries. The "5L" in API 5L stands for "Line Pipe," indicating its primary application for transporting fluids and gases from one point to another.

API 5L Specification Covers Seamless and Welded Steel Line Pipe. It includes standard-weight and Extra-Strong threaded Line Pipe. It includes standard-weight and extra-strong threaded line pipe; and standard-weight plain-end, regular-weight plain-end, special plain-end, extra-strong plain-end, special plain-end, extra-strong plain-end pipe; as as well as bell and spigot and through-the-flow line(TFL) pipe. The purpose of this specification is to provide standards for pipe suitable for use in conveying gas, Groundwater, and oil in both the oil and natural gas industries Grades covered by this specification are A25 ,A ,B (and the following "X" Grades) X42, X46, X52, X60, X65, & X70 and API 5L Line Pipe is dimensionally equivalent to A106 and A53 pipe, conforming to industry standard sizes, however it performs to different mechanical properties. One key defining characteristic of this pipe is its yield strength, where the two digit number following the pipe’s "X" grade indicates the Minimum Yield Strength (in 000's psi) of pipe produced to this grade (i.e. X52 Pipe).

Scope of API 5L Seamless Pipe

1 PURPOSE AND COVERAGE

The purpose of this specification is to provide standards for pipes suitable for the transportation of gas, water and oil, both in the oil and natural gas industries. This specification applies to seamless and welded steel line pipe. This includes plain-end, threaded-end, and bell-end tubing, as well as through-the-future-line (TFL) tubing and tubing with engineered ends for use in specialty couplings. Plain-ended line pipes meeting this specification are primarily intended for field assembly by circumferential welding, but the manufacturer is not responsible for field welding.

2 PRODUCT SPECIFICATION LEVEL (PSL)

This specification specifies requirements for two products Specification level (PSL I and PSL 2). These two PSL specifications define different levels of standard technical requirements. PSL 2 sets mandatory requirements for carbon equivalent, notch toughness, ultimate yield strength, and ultimate tensile strength. These and other differences are: They are summarized in Appendix 1. Requirements that apply only to PSL I or only to PSL 2 are marked as such. Requirements not tied to a specific PSL apply to both PSL I and PSL 2.

3 GRADES

API 5L Seamless Pipes are available in a variety of sizes and grades to suit different application requirements. They come in diameters ranging from a few inches to several feet, with various wall thicknesses and lengths available. Additionally, different steel grades, such as API 5L Grade B, X42, X52, X60, and X65, offer specific properties tailored to specific operating conditions.

4 DIMENSIONS

The size used here is a dimensionless designation derived from the specified outside diameter measured in U.S. units, and provides a convenient way to refer to pipe sizes in text and tables (but (Not used for ordering instructions). Pipe sizes larger than 23/8 are expressed as whole numbers and fractions. Pipe sizes smaller than 23/8 are displayed to three decimal places. These sizes replace the terms ``size designation'' and ``nominal size designation'' used in previous editions of this specification. Users of this specification who are accustomed to specifying nominal sizes instead of 00 sizes are encouraged to familiarize themselves with the new sizing specifications used in this specification. and API 5L Seamless Pipes comply with strict Piping Specification set forth by the American Petroleum Institute, ensuring consistency and compatibility with other components in Oil Sands and gas Pipeline. These specifications cover dimensions, chemical composition, mechanical properties, and testing requirements to guarantee the quality and performance of the pipes.

Doy know what is Process of Manufacture and Material of API 5L Seamless Pipe

PROCESS OF MANUFACTURE

Steel coils or plates are formed into cylindrical shapes and longitudinal seams are welded using advanced welding techniques. After the tube forming stage, the API 5L tube undergoes a heat treatment process to improve its mechanical properties and microstructure.

Seamless Process

The seamless process is a process of hot working steel to form a tubular product without a welded seam. If necessary, the hot worked tubular product may be subsequently cold finished to produce the desired shape, dimensions, and properties.

Continuous Welding

Continuous welding is a process in which the steel is continuously flowed into the welding machine by heating the bar in a furnace and forming a seam by mechanically pressing the formed edges, joining successive coils of the bar. (It is a type of butt welding.)

Laser Welding

Laser welding is a welding process that uses a laser beam and keyhole technology to melt and fuse the edges to be welded. You can preheat the edges. Shielding is carried out entirely by externally supplied gases or gas mixtures.

Gas Metal-Arc Welding

Gas metal arc welding is a welding process that fuses metals by heating them with one or more arcs between a continuously consuming electrode and a workpiece. Shielding is carried out entirely by externally supplied gases or gas mixtures. No pressure is applied and the filler metal is recovered from the electrode.

OUR API 5L Seamless Line Pipe range

API 5L Pipe Specification	API 5L / ISO 3183 Hot Rolled.
API 5L Pipe Grades	API 5L Grade B PSL1, PSL 2 / API 5L X42 PSL1, PSL 2 / API 5L X46 PSL1, PSL 2 / API 5L X52 PSL1, PSL 2 / API 5L X56 PSL1, PSL 2 / API 5L X60 PSL1, PSL 2 / API 5L X65 PSL1, PSL 2 / X70 PSL1, PSL 2 / API 5L X70 PSL1 / PSL2 / API 5CT / API 5L X80 PSL1, PSL 2 / L245 PSL1, PSL 2, L290 PSL1, PSL 2, L320 PSL1, PSL 2, L360 PSL1, PSL 2, L390 PSL1, PSL 2, L415 PSL1, PSL 2, L450 PSL1, PSL 2, L485 PSL1, PSL 2
API 5L Pipe Type	Seamless
API 5L Pipe Outer Diameter Size	3/8" NB to 30" NB (Nominal Bore Size)
API 5L Pipe Wall Thickness	Schedule 20 to Schedule XXS (Heavier On Request) Up to 250 mm Thickness
API 5L Pipe Length	5 to 7 Meters, 09 to 13 Meters, Single Random Length, Double Random Length And Customize Size.
API 5L Pipe Ends	Plain Ends / Beveled Ends / Coupling
API 5L Pipe Delivery Conditions	As Rolled, Normalizing Rolled, Thermomechanical Rolled / Formed, Normalizing Formed, Normalized and Tempered / Quenched and Tempered - BR / N / Q /T
API 5L Pipe Coating	Epoxy Coating / Colour Paint Coating / 3LPE Coating.
API 5L Pipe Other Testing	NACE MR0175, NACE TM0177, NACE TM0284, HIC TEST, SSC TEST, SWC, H2 SERVICE, IBR, Etc.
API 5L Pipe Dimension	All Pipes Tube Is Manufactured and Inspected / Tested to the Relevant standards including ASTM, ASME, API.
API 5L Pipe Value Added Services	Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Galavanizing / Heat Treatment
API 5L Pipe Packaging	Loose / Bundle / Wooden Pallet / Wooden box-a / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector
API 5L Pipe Shipment & Transportation	By Road - Truck / Train, By Sea - Break-bulk Conventional Vessel / FCL (Full Container Load) / LCL (Less Container Load) / 20 Feet Container / 40 Feet
API 5L Pipe Material Test Certificate	Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab./ Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC

Scope

ANSI / API 5L specifies the manufacture of two product levels (PSL1 and PSL2) of Seamless Steel Pipe and Welded steel pipe for the use of a pipeline in the transportation of petroleum and Natural Gas. for material use in a sour service application, refer to Annex H; for offshore service application, refer to Annex J of API 5L 45th Edition.

Process

Ingots, blooms, billets, coils or plates used for the manufacture of pipe shall be made via basic oxygen, electric furnace or open hearth in combination with a ladle refining process. for PSL2, the Steel Seamless Pipe shall be killed and melted according to a fine grain practice. Coil or plate used for PSL2 pipe shall not contain any repair welds.

API 5L Line Pipe PSL1 Chemical Requirement

Chemical Composition for PSL 1 pipe with t ≤ 0.984”

Steel Grade	Mass fraction, % based on heat and product analyses a,g
	C	Mn	P	S	V	Nb	Ti
	max b	max b	max	max	max	max	max
Seamless Pipe
A	0.22	0.9	0.3	0.3	–	–	–
B	0.28	1.2	0.3	0.3	c,	c,	D
X42	0.28	1.3	0.3	0.3
X46	0.28	1.4	0.3	0.3
X52	0.28	1.4	0.3	0.3
X56	0.28	1.4	0.3	0.3
X60	0.28 e	1.40 e	0.3	0.3	f	f	f
X65	0.28 e	1.40 e	0.3	0.3	f	f	f
X70	0.28 e	1.40 e	0.3	0.3	f	f	f
Welded Pipe
A	0.22	0.9	0.3	0.3	–	–	–
B	0.26	1.2	0.3	0.3	c,	c
X42	0.26	1.3	0.3	0.3
X46	0.26	1.4	0.3	0.3
X52	0.26	1.4	0.3	0.3
X56	0.26	1.4	0.3	0.3
X60	0.26 e	1.40 e	0.3	0.3	f	f	f
X65	0.26 e	1.45 e	0.3	0.3	f	f	f
X70	0.26e	1.65 e	0.3	0.3	f	f	f
a. Cu ≤ = 0.50% Ni; ≤ 0.50%; Cr ≤ 0.50%; and Mo ≤ 0.15%, b. for each reduction of 0.01% below the specified max. concentration for carbon, and increase of 0.05% above the specified max. concentration for Mn is permissible, up to a max. of 1.65% for grades ≥ B, but ≤ = X52; up to a max. of 1.75% for grades X52, but X70; and up to a maximum of 2.00% for X70., c. Unless otherwise agreed NB + V ≤ 0.06%, d. Nb + V + TI ≤ 0.15%, e. Unless otherwise agreed., f. Unless otherwise agreed, NB + V = Ti ≤ 0.15%, g. No deliberate addition of B is permitted and the residual B ≤ 0.001%

Chemical Composition for PSL 2 pipe with t ≤ 0.984”

Steel Grade	Mass fraction, % based on heat and Steel Products analyses													Carbon Equiv a
	C	Si		Mn		P		S		V	Nb	Ti	Other	CE IIW	CE Pcm
	max b	max		max b		max		max		max	max	max		max	max
Seamless and Welded Pipe
BR	0.24	0.4		1.2		0.025		0.015		c	c	0.04	e,l	0.043	0.25
X42R	0.24	0.4		1.2		0.025		0.015		0.06	0.05	0.04	e,l	0.043	0.25
BN	0.24	0.4		1.2		0.025		0.015		c	c	0.04	e,l	0.043	0.25
X42N	0.24	0.4		1.2		0.025		0.015		0.06	0.05	0.04	e,l	0.043	0.25
X46N	0.24	0.4		1.4		0.025		0.015		0.07	0.05	0.04	d,e,l	0.043	0.25
X52N	0.24	0.45		1.4		0.025		0.015		0.1	0.05	0.04	d,e,l	0.043	0.25
X56N	0.24	0.45		1.4		0.025		0.015		0.10f	0.05	0.04	d,e,l	0.043	0.25
X60N	0.24f	0.45f		1.40f		0.025		0.015		0.10f	0.05f	0.04f	g,h,l	As agree
BQ	0.18	0.45		1.4		0.025		0.015		0.05	0.05	0.04	e,l	0.043	0.25
X42Q	0.18	0.45		1.4		0.025		0.015		0.05	0.05	0.04	e,l	0.043	0.25
X46Q	0.18	0.45		1.4		0.025		0.015		0.05	0.05	0.04	e,l	0.043	0.25
X52Q	0.18	0.45		1.5		0.025		0.015		0.05	0.05	0.04	e,l	0.043	0.25
X56Q	0.18	0.45f		1.5		0.025		0.015		0.07	0.05	0.04	e,l	0.043	0.25
X60Q	0.18f	0.45f		1.70f		0.025		0.015		g	g	g	h,l	0.043	0.25
X65Q	0.18f	0.45f		1.70f		0.025		0.015		g	g	g	h,l	0.043	0.25
X70Q	0.18f	0.45f		1.80f		0.025		0.015		g	g	g	h,l	0.043	0.25
X80Q	0.18f	0.45f		1.90f		0.025		0.015		g	g	g	i,j	As agree
X90Q	0.16f	0.45f		1.9		0.02		0.01		g	g	g	j,k	As agree
X100Q	0.16f	0.45f		1.9		0.02		0.01		g	g	g	j,k	As agree
Welded Pipe
BM		0.22	0.45		1.2		0.025		0.015	0.05	0.05	0.04	e,l	0.043	0.25
X42M		0.22	0.45		1.3		0.025		0.015	0.05	0.05	0.04	e,l	0.043	0.25
X46M		0.22	0.45		1.3		0.025		0.015	0.05	0.05	0.04	e,l	0.043	0.25
X52M		0.22	0.45		1.4		0.025		0.015				e,l	0.043	0.25
X56M		0.22	0.45f		1.4		0.025		0.015				e,l	0.043	0.25
X60M		0.12f	0.45f		1.60f		0.025		0.015	g	g	g	h,l	0.043	0.25
X65M		0.12f	0.45f		1.60f		0.025		0.015	g	g	g	h,l	0.043	0.25
X70M		0.12f	0.45f		1.70f		0.025		0.015	g	g	g	h,l	0.043	0.25
X80M		0.12f	0.45f		1.85f		0.025		0.015	g	g	g	i,j	.043f	0.25
X90M		0.1	0.55f		2.10f		0.02		0.01	g	g	g	i,j	–	0.25
X100M		0.1	0.55f		2.10f		0.02		0.01	g	g	g	i,j	–	0.25
a. SMLS t 0.787”, CE limits shall be as agreed. The CEIIW limits applied fi C 0.12% and the CEPcm limits apply if C ≤ 0.12%, b. for each reduction of 0.01% below the specified max. concentration for carbon, and increase of 0.05% above the specified max. concentration for Mn is permissible, up to a max. of 1.65% for grades ≥ B, but ≤ = X52; up to a max. of 1.75% for grades X52, but X70; and up to a maximum of 2.00% for X70., c. Unless otherwise agreed Nb = V ≤ 0.06%, d. Nb = V = Ti ≤ 0.15%, e. Unless otherwise agreed, Cu ≤ 0.50%; Ni ≤ 0.30% Cr ≤ 0.30% and Mo ≤ 0.15%, f. Unless otherwise agreed, g. Unless otherwise agreed, Nb + V + Ti ≤ 0.15%, h. Unless otherwise agreed, Cu ≤ 0.50% Ni ≤ 0.50% Cr ≤ 0.50% and MO ≤ 0.50%, i. Unless otherwise agreed, Cu ≤ 0.50% Ni ≤ 1.00% Cr ≤ 0.50% and MO ≤ 0.50%, j. B ≤ 0.004%, k. Unless otherwise agreed, Cu ≤ 0.50% Ni ≤ 1.00% Cr ≤ 0.55% and MO ≤ 0.80%, l. for all PSL 2 pipe grades except those grades with footnotes j noted, the following applies. Unless otherwise agreed no intentional addition of B is permitted and residual B ≤ 0.001% .

API 5L MECHANICAL PROPERTIES

Pipe Grade	Tensile Properties – Pipe Body of SMLS and Welded Pipes PSL 1			Seam of Welded Pipe
	Yield Strength a	Tensile Strength a	Elongation	Tensile Strength b
	Rt0,5 PSI Min	Rm PSI Min	(in 2in Af % min)	Rm PSI Min
A	30,500	48,600	c	48,600
B	35,500	60,200	c	60,200
X42	42,100	60,200	c	60,200
X46	46,400	63,100	c	63,100
X52	52,200	66,700	c	66,700
X56	56,600	71,100	c	71,100
X60	60,200	75,400	c	75,400
X65	65,300	77,500	c	77,500
X70	70,300	82,700	c	82,700
a. for intermediate grade, the difference between the specified minimum tensile strength and the specified minimum yield for the pipe body shall be as given for the next High Temperature grade.
b. for the intermediate grades, the specified minimum tensile strength for the weld seam shall be the same as determined for the body using foot note a.
c. The specified minimum elongation, Af, expressed in percent and rounded to the nearest percent, shall be determined using the following equation:

Where C is 1 940 for calculation using Si units and 625 000 for calculation using USC units
Axc is the applicable tensile test piece cross-sectional area, expressed in square millimeters (square inches) , as follows
– for circular cross-section test pieces, 130mm2 (0.20 in2) for 12.7 mm (0.500 in) and 8.9 mm (.350 in) diameter test pieces; and 65 mm2 (0.10 in2) for 6.4 mm (0.250in) diameter test pieces.
– for full-section test pieces, the lesser of a) 485 mm2 (0.75 in2) and b) the cross-sectional area of the test piece, derived using the specified outside diameter and the specified wall thickness of the pipe, rounded to the nearest 10 mm2 (0.10in2)
– for strip test pieces, the lesser of a) 485 mm2 (0.75 in2) and b) the cross-sectional area of the test piece, derived using the specified width of the test piece and the specified wall thickness of the pipe, rounded to the nearest 10 mm2 (0.10in2)
U is the specified minimum tensile strength, expressed in megapascals (pounds per square inch)

Pipe Grade	Tensile Properties – Pipe Body of SMLS and Welded Pipes PSL 2						Seam of Welded Pipe
	Yield Strength a		Tensile Strength a		Ratio a,c	Elongation	Tensile Strength
	Rt0,5 PSI Min		Rm PSI Min		R10,5IRm	(in 2in)	Rm (psi)
						Af %
	Minimum	Maximum	Minimum	Maximum	Maximum	Minimum	Minimum
BR, BN,BQ,BM	35,500	65,300	60,200	95,000	0.93	f	60,200
X42,X42R,X2Q,X42M	42,100	71,800	60,200	95,000	0.93	f	60,200
X46N,X46Q,X46M	46,400	76,100	63,100	95,000	0.93	f	63,100
X52N,X52Q,X52M	52,200	76,900	66,700	110,200	0.93	f	66,700
X56N,X56Q,X56M	56,600	79,000	71,100	110,200	0.93	f	71,100
X60N,X60Q,S60M	60,200	81,900	75,400	110,200	0.93	f	75,400
X65Q,X65M	65,300	87,000	77,600	110,200	0.93	f	76,600
X70Q,X65M	70,300	92,100	82,700	110,200	0.93	f	82,700
X80Q,X80M	80,.500	102,300	90,600	119,700	0.93	f	90,600
a. for intermediate grade, refer to the full API5L specification.
b. for grades X90 refer to the full API5L specification.
c. This limit applies for pies with D 12.750 in
d. for intermediate grades, the specified minimum tensile strength for the weld seam shall be the same value as was determined for the pipe body using foot a.
e. for pipe requiring longitudinal testing, the maximum yield strength shall be ≤ 71,800 psi
f. The specified minimum elongation, Af, expressed in percent and rounded to the nearest percent, shall be determined using the following equation:

Where C is 1 940 for calculation using Si units and 625 000 for calculation using USC units
Axc is the applicable tensile test piece cross-sectional area, expressed in square millimeters (square inches) , as follows
– for circular cross-section test pieces, 130mm2 (0.20 in2) for 12.7 mm (0.500 in) and 8.9 mm (.350 in) diameter test pieces; and 65 mm2 (0.10 in2) for 6.4 mm (0.250in) diameter test pieces.
– For full-section test pieces, the lesser of a) 485 mm2 (0.75 in2) and b) the cross-sectional area of the test piece, derived using the specified outside diameter and the specified wall thickness of the pipe, rounded to the nearest 10 mm2 (0.10in2)
– For strip test pieces, the lesser of a) 485 mm2 (0.75 in2) and b) the cross-sectional area of the test piece, derived using the specified width of the test piece and the specified wall thickness of the pipe, rounded to the nearest 10 mm2 (0.10in2)
U is the specified minimum tensile strength, expressed in megapascals (pounds per square inch
g. Lower values fo R10,5IRm may be specified by agreement
h. for grades x90 refer to the full API5L specification.

Delivery condition

PSL	Delivery Condition	Pipe grade
PSL1	As-rolled, normalized, normalizing formed	A
	As-rolled, normalizing rolled, thermomechanical rolled, thermo-mechanical formed, normalizing formed, normalized, normalized and tempered or if agreed Q&T SMLS only	B
	As-rolled, normalizing rolled, thermomechanical rolled, thermo-mechanical formed, normalizing formed, normalized, normalized and tempered	X42, X46, X52, X56, X60, X65, X70
PSL 2	As-rolled	BR, X42R
	Normalizing rolled, normalizing formed, normalized or normalized and tempered	BN, X42N, X46N, X52N, X56N, X60N
	Quenched and tempered	BQ, X42Q, X46Q, X56Q, X60Q, X65Q, X70Q, X80Q, X90Q, X100Q
	Thermomechanical rolled or thermomechanical formed	BM, X42M, X46M, X56M, X60M, X65M, X70M, X80M
	Thermomechanical rolled	X90M, X100M, X120M
	The suffice (R, N, Q or M) for PSL2 grades, belongs to the steel grade

Hydrostatic test

Pipe to withstand a hydrostatic test without leakage through the weld seam or the pipe body. Jointers need not be hydrostatic tested provide the pipe sections used were successfully tested.

Bend test

No cracks shall occur in any portion of the test piece and no opening of the weld shall occur.

Flattening test

Acceptance criteria for flattening test shall be:

EW Pipes D< 12.750 in:
X60 with T 500in. There shall be no opening of the weld before the distance between the plates is less than 66% of the original outside diameter. for all grades and wall, 50%.
For pipe with a D/t 10, there shall be no opening of the weld before the distance between the plates is less than 30% of the original outside diameter.
For other sizes refer to the full API 5L specification.

CVN impact test for PSL2

Many PSL2 pipe sizes and grades require CVN. Seamless Pipe is to be tested in the body. Welded pipe is to be tested in the body, pipe weld and heat-affected zone. Refer to the full API 5L specification for the chart of sizes and grades and required absorbed energy values.

Tolerances: Outside diameter, out of roundness and wall Thickness

Specified Outside Diameter D (in)	Diameter Tolerance, inches				Out-of-Roundness Tolerance in
	Pipe except the end a		Pipe end a,b,c		Pipe except the End a	Pipe End a,b,c
	SMLS Pipe	Welded Pipe	SMLS Pipe	Welded Pipe
2.375	-0.031 to + 0.016		– 0.031 to + 0.016		0.048	0.036
≥2.375 to 6.625					0.020D for	0.015D for
	+/- 0.0075		– 0.016 to + 0.063
					By agreement for	By agreement for

6.625 to 24.000	+/- 0.0075	+/- 0.0075D, but max of 0.125	+/- 0.005D, but max of 0.063		0.020	0.015
24 to 56	+/- 0.01	+/- 0.005D but max of 0.160	+/- 0.079	+/- 0.063	0.015D for but max of 0.060	0.01D for but max of 0.500
					For	For

					By agreement	By agreement
					for	for

56	As agree
a. The pipe end includes a length of 4 in ate each of the pipe extremities
b. or SMLS pipe the tolerance apply for t≤0.984in and the tolerances for the thicker pipe shall be as agree
c. for expanded pipe with D≥8.625in and for non-expanded pipe, the diameter tolerance and the out-of-roundness tolerance may be determined using the calculated inside diameter or measured inside diameter rather than the specified OD.
d. for determining compliance to diameter tolerance, the pipe diameter is defined as the circumference of the pipe in any circumferential plane divide by Pi.

Tolerances: Outside diameter, out of roundness and wall thickness

Specified Outside Diameter D (in)	Diameter Tolerance, inches				Out-of-Roundness Tolerance in
	Pipe except the end a		Pipe end a,b,c		Pipe except the End a	Pipe End a,b,c
	SMLS Pipe	Welded Pipe	SMLS Pipe	Welded Pipe
2.375	-0.031 to + 0.016		– 0.031 to + 0.016		0.048	0.036
≥2.375 to 6.625					0.020D for	0.015D for
	+/- 0.0075		– 0.016 to + 0.063
					By agreement for	By agreement for

6.625 to 24.000	+/- 0.0075	+/- 0.0075D, but max of 0.125	+/- 0.005D, but max of 0.063		0.020	0.015
24 to 56	+/- 0.01	+/- 0.005D but max of 0.160	+/- 0.079	+/- 0.063	0.015D for but max of 0.060	0.01D for but max of 0.500
					For	For

					By agreement	By agreement
					for	for

56	As agree
a. The pipe end includes a length of 4 in ate each of the pipe extremities
b. for SMLS pipe the tolerance apply for t≤0.984in and the tolerances for the thicker pipe shall be as agree
c. for expanded pipe with D≥8.625in and for non-expanded pipe, the diameter tolerance and the out-of-roundness tolerance may be determined using the calculated inside diameter or measured inside diameter rather than the specified OD.
d. for determining compliance to diameter tolerance, the pipe diameter is defined as the circumference of the pipe in any circumferential plane divide by Pi.

Wall thickness	Tolerances a
t inches	inches
SMLS pipe b
≤ 0.157	-1.2
0.157 to 0.948	+ 0.150t / – 0.125t
≥ 0.984	+ 0.146 or + 0.1t, whichever is the greater
	– 0.120 or – 0.1t, whichever is the greater
Welded pipe c,
≤ 0.197	+/- 0.020
0.197 to 0.591	+/- 0.1t
≥ 0.591	+/- 0.060
a. If the purchase order specifies a minus tolerance for wall thickness smaller than the applicable value given in this table, the plus tolerance for wall thickness shall be increased by an amount sufficient to maintain the applicable tolerance range.
b. for pipe with D≥ 14.000 in and t≥0.984in, the wall thickness tolerance locally may exceed the plus tolerance for wall thickness by an additional 0.05t provided that the plus tolerance for mass is not exceeded.
c. The plus tolerance for wall thickens does not apply to the weld area
d. See the full API5L spec for full details

API 5L Line Pipe Comparative Specifications
The information here is summarized from ASTM Standards and API Specification 5L. Please see the specific API Standards for more information.

Grade Range	A25 Through X70	Gr B Through X80	Table 1
Size Range	0.405 Through 80	4-2/1 Through 80	Table 1
Type Of Pipe Ends	Plain-End, Threaded-end, Bevelled-End, Special Coupling Pipe	Plain-En	Table 1
Seam Welding	All Methods Continous Welding Limited to Grade A25	All Methods Except Continous And Laser Welding	Table 1
Electric Welds: Welder Frequency	No Minimum	100 Khz Minimum	5.1.3.3.2
Heat Treatments of Electric Welds	Required For Grades > X42	Required For All Grades (Gr B Through X80)	5.1.3.3.1; J.3.3.2:6.2.7
Chemistry: Max C For Seamless Pipe	0.28% For Grades > Gr B	0.24%	tables 2a, 2b
Chemistry: Max C For Welded Pipe	0.26% For Grades > Gr B	0.22%	tables 2a, 2b
Chemistry: Max P	0.03%	0.03%	Tables 2a, 2b
Chemistry: Max S	Only When Purchases Specifies Sr18	0.02%	Tables 2a, 2b
Carbon Equivalent	None	Maximum Required for Each Grade	4.2:4.3:6.1.3: Sr15.1
Yield Strength, Maximum	None	Maximum for Each Grade	tables 3a, 3b
UTS, Maximum	None Require	Maximum For Each Grade	Tables 3a, 3b
Fracture Toughness	Only When Purchaser Specifies Sr4	Required For All Grades	6.2.6; 9.3.5: 9.8.4; 9.10.7;
Non-destructive Inspection of Seamless Pipes	Permitte	sr4 Mandatory	table 14 9.7.2.6
Repair By Welding of Pipe Body, Plate And Skelp	Permitted By Agreement	Prohibite	5.3.2;9.7.6: B.1;b.2
Certification	Certificates When Specified Per Sr15	Prohibite	4.3;9.7.4.4;9.7.6;b.1.2;b.4
Traceability	Traceable Only Until All Tests are Passed Unless Sr15 Is Specifie	Certificates (Sr15.1) Mandatory Traceable After Completion of Tests (Sr15.2) Mandatory	12.1 5.6

Permissible Variations for Seamless and Welded API 5L Steel Pipe

	Grade A, B, A25	X42 through X80
NPS 2-1/2 and smaller --Seamless and Welded, %	+20 -- 12.5	+15 -- 12.5
NPS 3 --Seamless and Welded, %	+18 -- 12.5	+15 -- 12.5
NPS 4 through 18 --Seamless and Welded, %	+15 -- 12.5	+15 -- 12.5
NPS 20 and larger -- Welded, %	+17.5 -- 10.0	+19.5 -- 8.0
NPS 20 and larger -- Seamless, %	+15.0 -- 12.5	+17.5 -- 10.0

Typical process of manufacturing API 5L Pipes

Type of Pipe	PSL 1			PSL 2
Type of Pipe	Grade A	Grade B	X42 to X70	B to X80	X80 to X100
SMLS
LFW
HFW
LW
SAWL
SAWH
SMLS – Seamless, without wel LFW – Low frequency welded pipe, 70 kHz HFW – High frequency welded pipe, 70 kHz SAWL – Submerge-arc welding longitudinal welde SAWH - Submerge-arc welding helical welde

Marking Requirements

Paint-stenciled or die-stamped manufacturer’s name or mark, Spec 5L, size, weight per foot, grade, process of manufacture, type of steel, length (NPS 4 and larger only). Test pressure when higher than tabulated (NPS 2 and larger only).

Supplemental Annexes for API 5LSeamless and Welded steel Pipe

API Specification 5L contains 15 Supplemental Annexes that address special conditions and/or additional requirements.

api 5l pipe sizes, api 5l grade b equivalent, api 5l grade b chemical composition, Ethanol and Gasoline and Shale Gasapi 5l pipe schedule chart, api 5l grade b specification pdf, api 5l grade b psl2, api 5l x42 pipe wall thickness, api 5l grade b vs a106 grade b API 5L Grade B Pipe, API 5L Grade B PSL1 Pipe, API 5L Grade B PSL2 Pipe, API 5L Grade B Line Pipe, API 5L Grade B Carbon Steel Pipe We provide API 5L Grade B Pipe with PSL1 and PSL2. We Carry Complete Range from 3/8" NB to 24" NB, wall Thickness upto 200 MM. Prosaic Stainless Steel and Alloys API 5L Grade B Pipe are known for its High Quality and Competitive Price.

API 5L Line Pipes OF TOP APPROVED COMPANIES

Sabic Saudi Arabia)	Shell	ALBA (Saudi Arabia)	QAFCO(Qatar)	Maaden(Saudi Arabia)	KNPC(Kuwait)
Kuwait Oil Company(Kuwait)	Qatar Petroleum(Qatar)	Petroleum Development Oman(Oman)	ADNOC(United Arab Emirates)	Orpic(Oman)	Takreer(Abu Dhabi)
YASREF(Abu Dhabi)	Petrobras(Brazil)	Petronas(Malaysia)	NIOC(Iran)	NPDC(Nigeria)	Egyptian General Petroleum Corporation(Egypt)

Supplying API 5L Pipes to Countries

We Export API 5L Seamless Pipe to Saudi Arabia, Iran, Iraq, United Arab Emirates, Qatar, Bahrain, Oman, Kuwait, Turkey, Egypt, Yemen, Syria, Israel, Jordan, Cyprus, Singapore, Malaysia, Indonesia, Thailand, Vietnam, South Korea, Japan, Sri Lanka, Maldives, Bangladesh, Mayanmar, Taiwan, Cambodia, Argentina, Bolivia, Brazil, Chile, Venezuela, Colombia, Ecuador, Guyana, Paraguay, Uruguay, United States of America, Canada, Mexico, Panama, Costa Rica, Puerto Rica, Trinidad And Tobago, Jamaica, Bahamas, Denmark, Russia, Norway, Germany, France, Italy, United Kingdom, Spain, Ukraine, Netherland, Belgium, Greece, Czech Republic, Portugal, Hungary, Albania, Austria, Switzerland, Slovakia, Finland, Ireland, Croatia, Slovenia, Malta, Nigeria, Algeria, Angola, South Africa, Libya, Egypt, Sudan, Equatorial Guinea, The Republic Of Congo, Gabon, Europe, Africa, Asia, North America, South America, Middle East, Far East.etc

Savoy Piping Inc. is a well known worldwide exporter of API 5L Seamless Pipe is committed to provide each and every customer with the highest standard of customer service. We deals in API 5L Seamless Pipe in India and Overseas, offering a wide range of API 5L Seamless Line Pipes

API 5L Seamless Pipes

Hot Rolled Carbon Steel Pipes as per American Petroleum Institute specification API 5L coverSeamless and Welded Line Pipes
